Portable Kitchen Scale Digital Weight Sensor Amplifier HX711 ADC Small Range Module Pressure Weighing Sensor Combo Kit Load Cell 5Kg

Portable Kitchen Scale Digital Weight Sensor Amplifier HX711 ADC Small Range Module Pressure Weighing Sensor Combo Kit Load Cell 5Kg

A$16.15
Availability:
  • In Stock
Product details

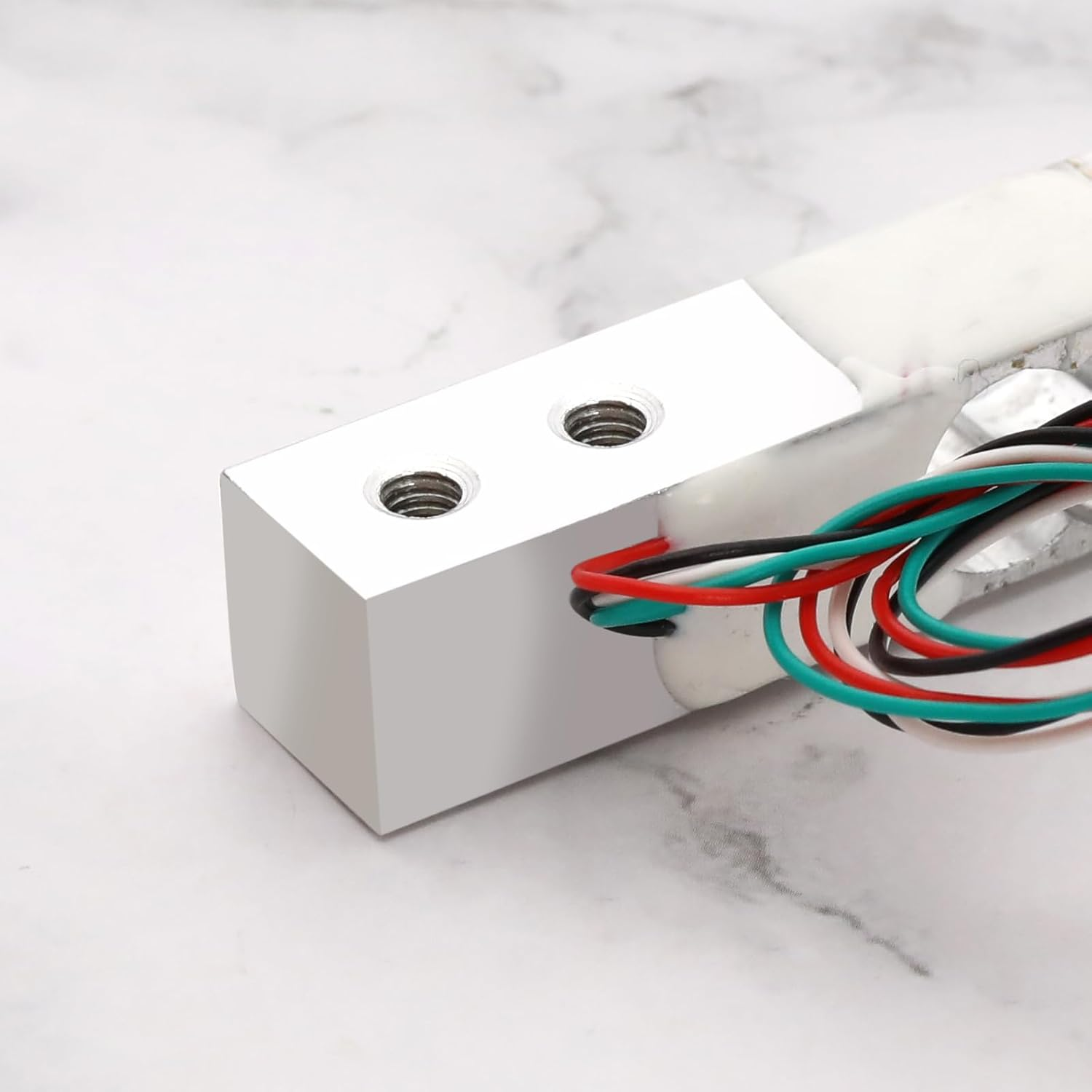

  • Load Cell Sturdy aluminum alloy construction with strain gauges with strain relieved wires.

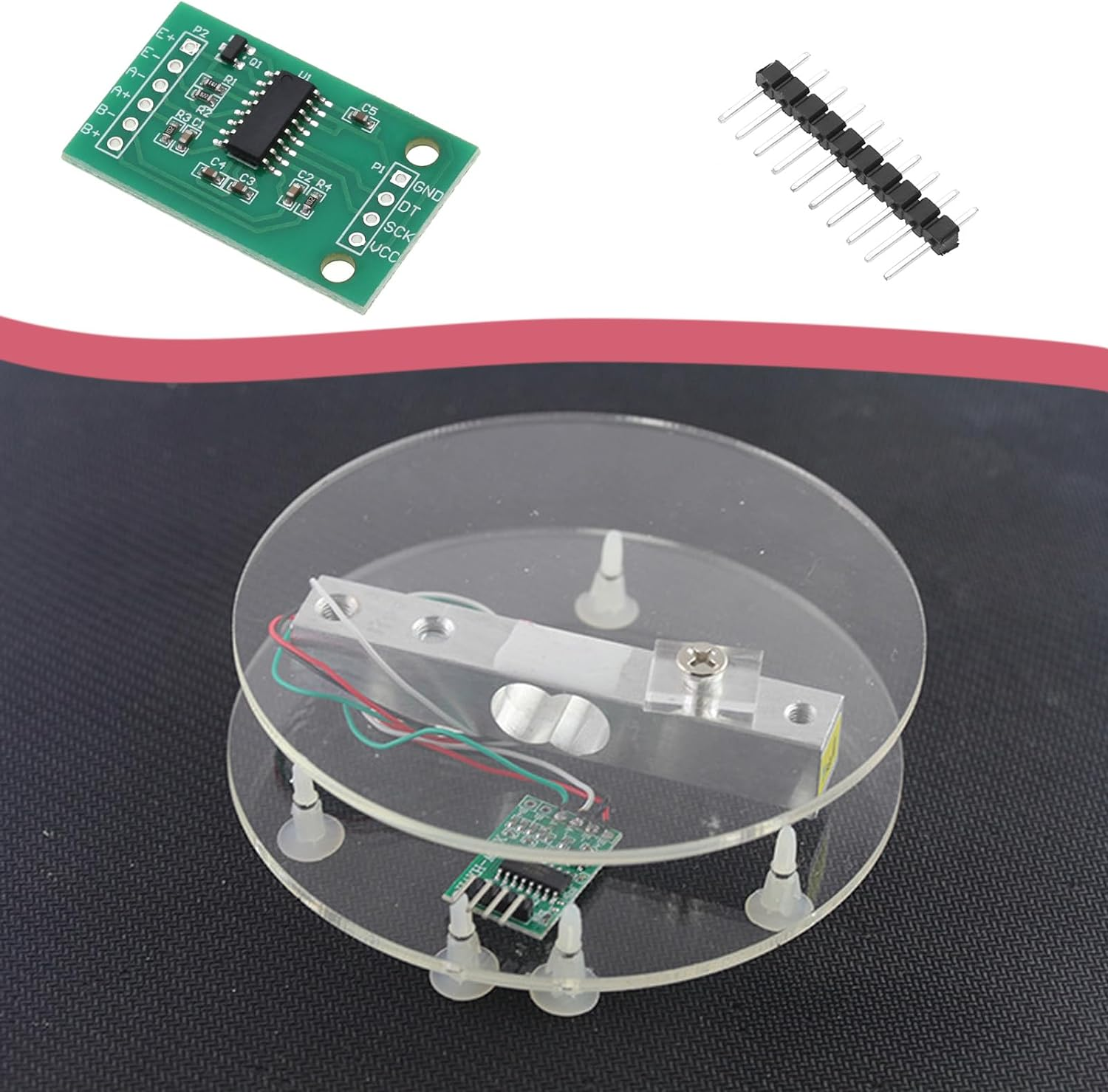

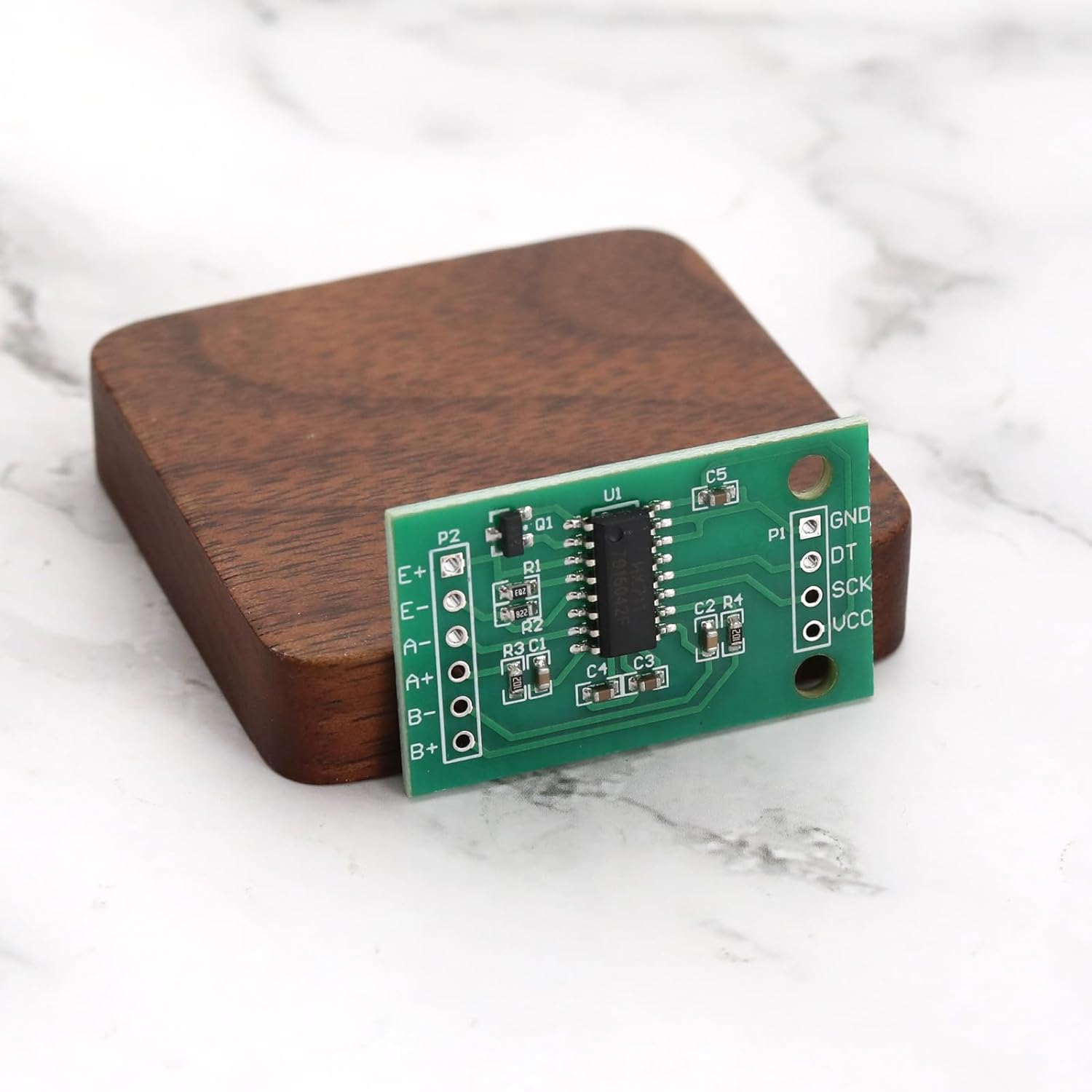

  • The weight sensor cannot be used directly with RPi GPIOs or other MCUs. The HX711 breakout board is required, an ADC+PGA designed specifically for load cells.

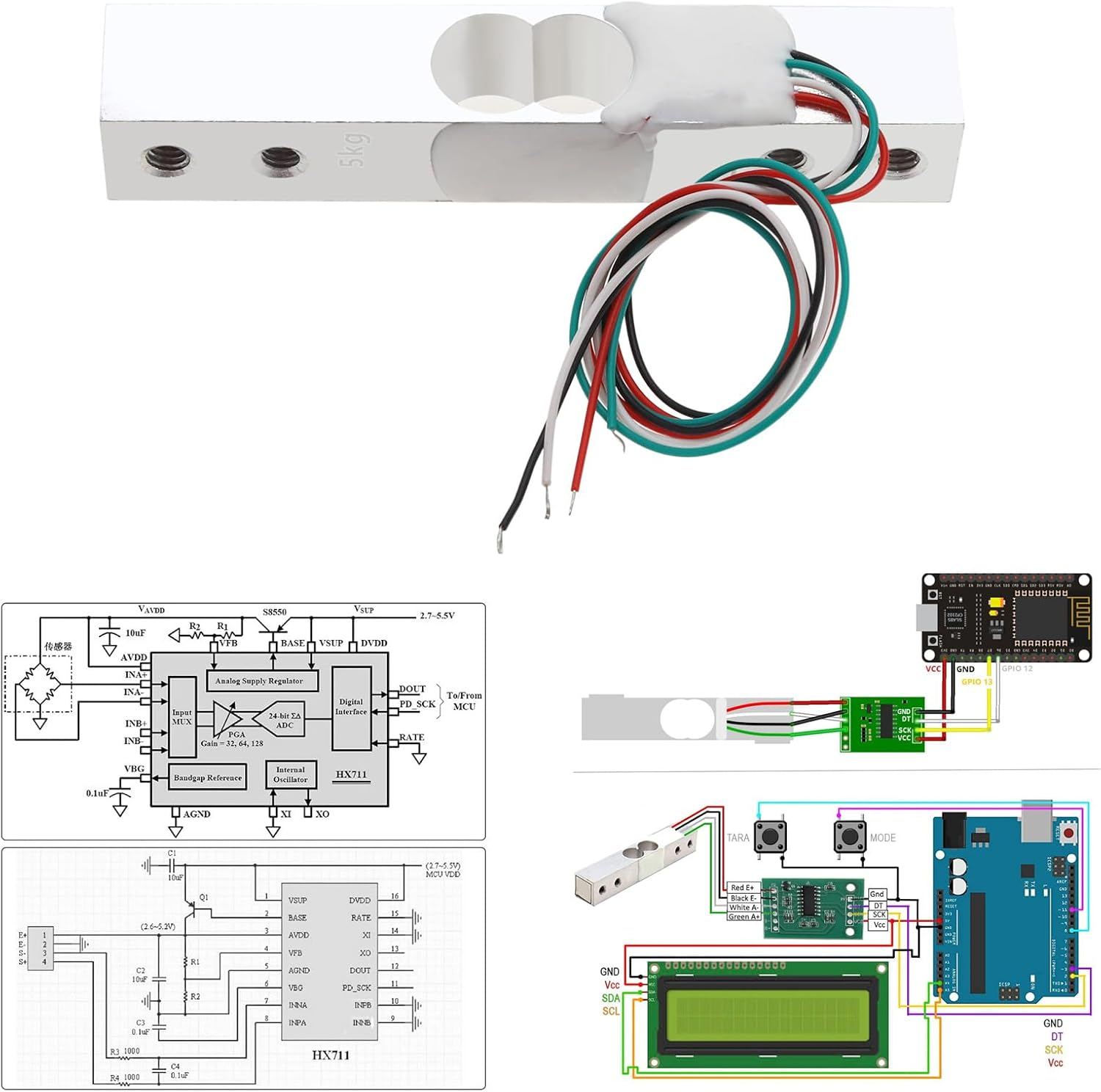

  • Load sensor connection with HX711 board: red to E+, black on E, green on A+, white on A
  • HX711 Specifications Operating voltage 2.7V-5V; Operating current: <1.5mA; Selectable 10 PLC or 80 PLC output data rate; Includes breakaway strips for connection, soldering required.
  • Instructions: One end of the sensor is fixed by a screw hole, and the other end is left in the air. Please be careful not to directly press the white latex part to avoid damage to the sensor.

Product Description

Item Specifications

Material:5kg

Item weight:35 Grams

Package

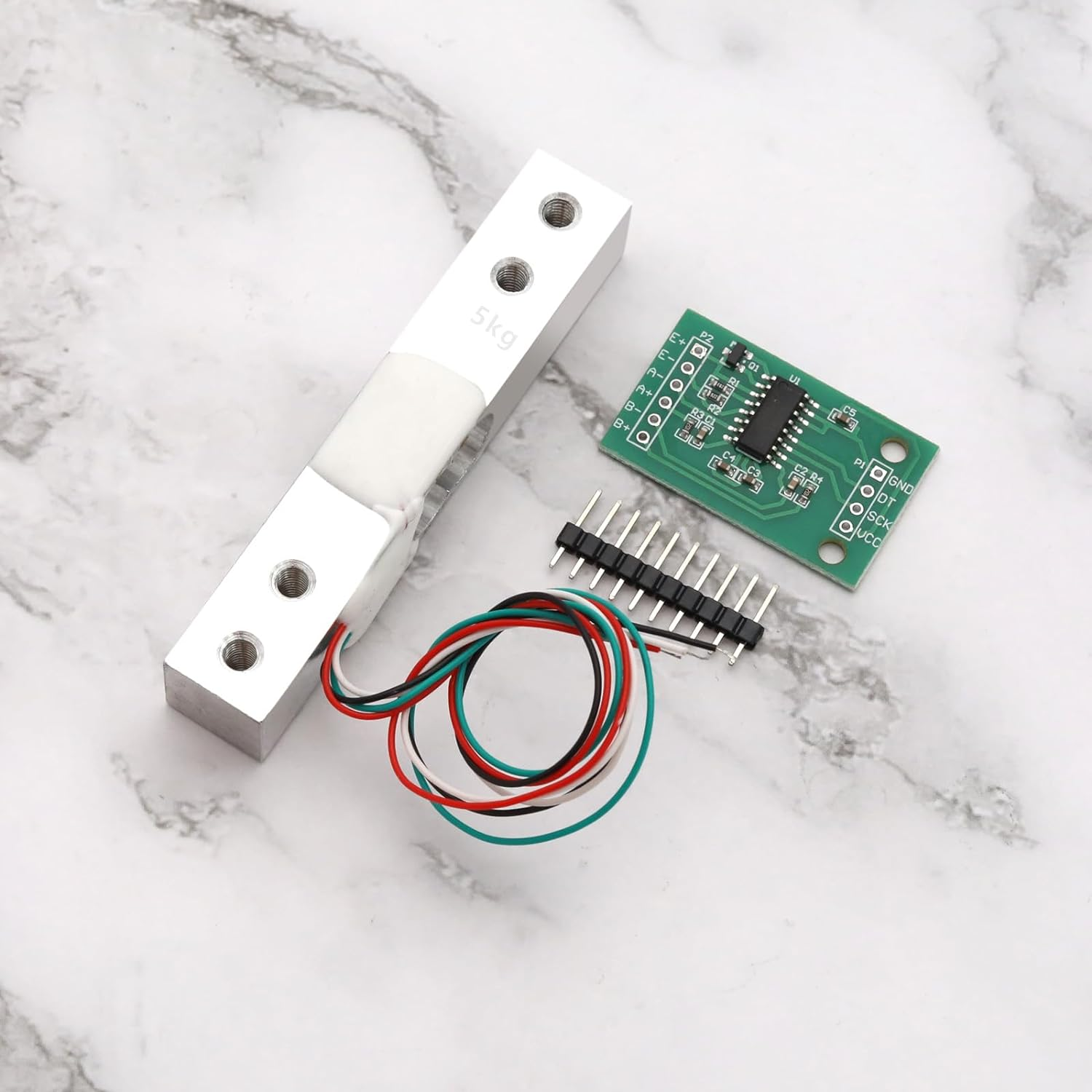

1x Weight Sensor (5kg+HX711)

  • Item Weight: 40 g
  • Batteries Required?: No
  • Size: 5g
  • Package Dimensions: 8 x 6 x 2 cm; 40 Grams
  • Manufacturer: VGOL
