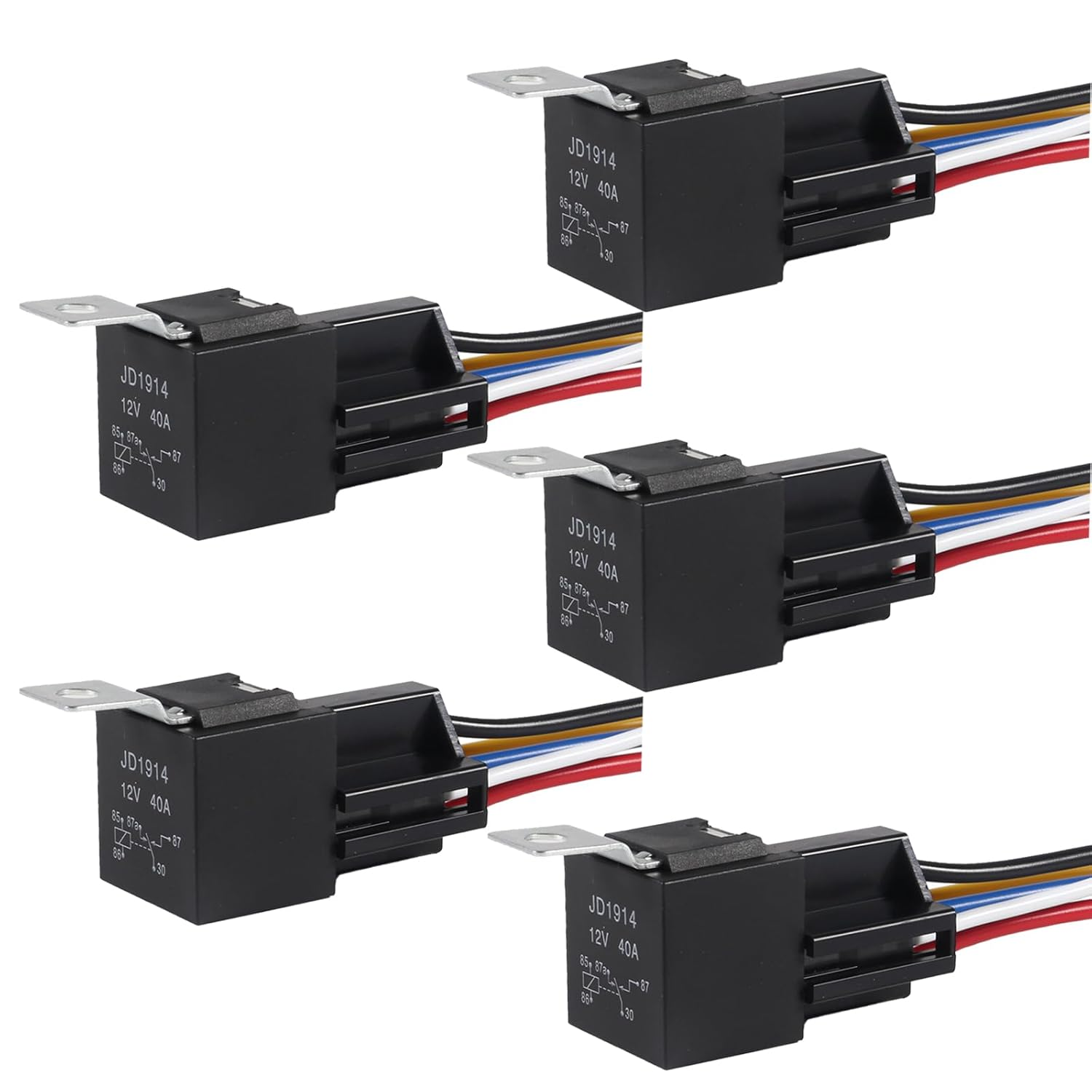

DIANN 5Pcs Car Relay with Harness 12V 40A 5 Pin SPST Harness Sockets with Color-Labeled Wires for Automotive Truck Van Motorcycle Boat

DIANN 5Pcs Car Relay with Harness 12V 40A 5 Pin SPST Harness Sockets with Color-Labeled Wires for Automotive Truck Van Motorcycle Boat

Brand: DIANN
4.2
A$24.70
Availability:
  • In Stock

Shop with confidence

Secure transaction Returns Policy Shipping to Australia
  • 5 Pin SPDT Auto Relay with Color-Labeled Wires: Rated Operational Voltage: 12V; Switching Capability: 40A
  • Standard Operating Voltage 8V; Corresponding Standard Operating Current: 100mA; Minimum Operating Voltage 12V; Corresponding Minimum Operating Current: 150mA
  • High Quality: Car Relay with Harness 5 Pin SPDT Harness Sockets Made of High-Grade Materials to Ensure Superior Quality and Long Lifespan,Small Size, Low Power Consumption, High Contact Voltage, High Sensitivity

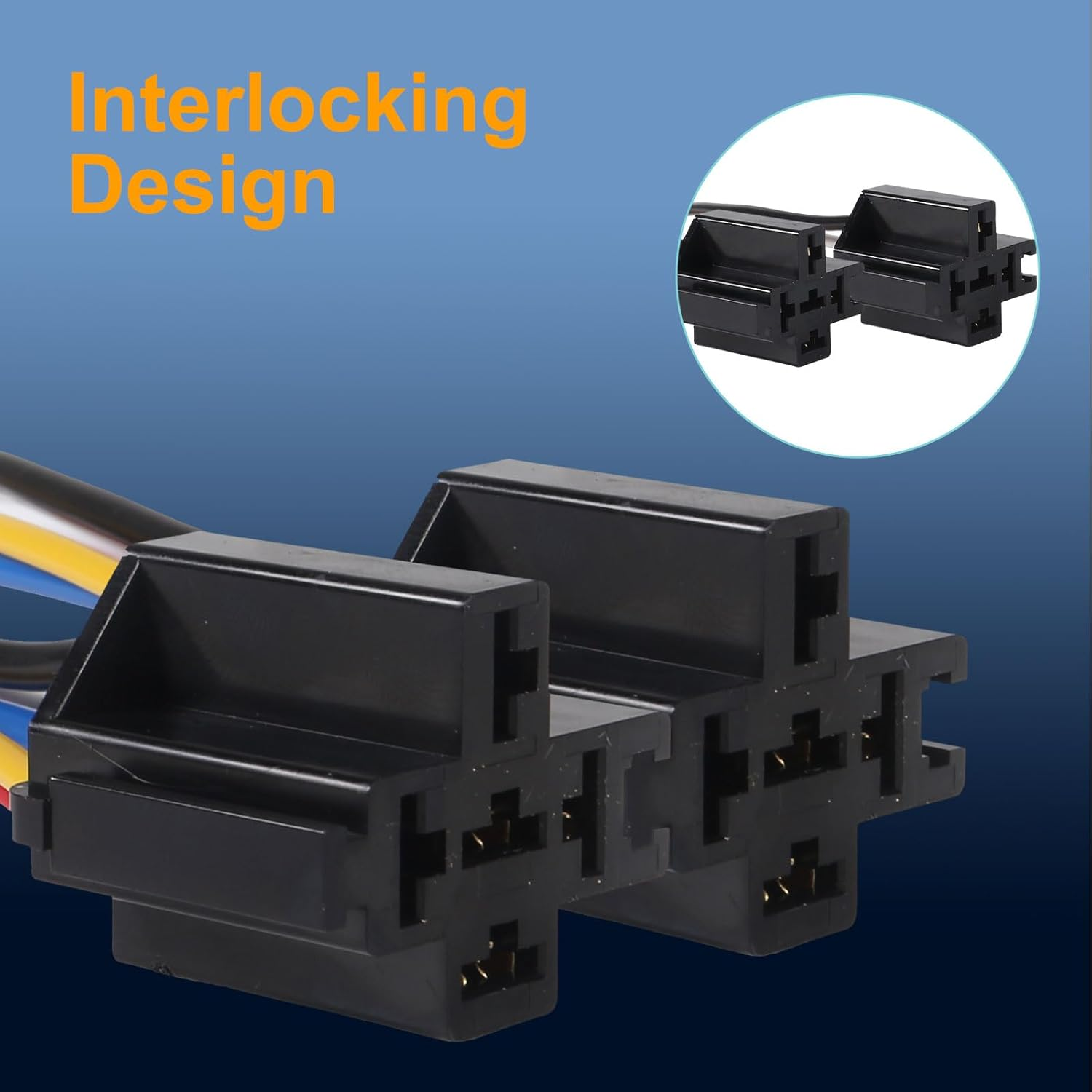

  • Male-Female Slot Design: Auto Relay Designed with Unique Male-Female Slot, Plug and Play ,Easy to Connect the Relay with Harness Socket, Clean and Neat after Installation
  • Easy Wiring: Car Relay Sockets Come with Different Colors Wires for Loads/Accessories,Heavy Duty SPDT (Single Pole Double Throw) Relays with Color-Labeled Wires. Simple and Convenient Wiring.Suitable for Automotive Truck Van Motorcycle Boat

Product Description

12V 40/30 Amp Car Relay 5 Pins

Specifications:

  • Relay load: 40A/12VDC
  • Contact Resistance: ≤ 100MΩ
  • Contact Material: Ag Alloy
  • Coil power:1.8W
  • Operate Time: 15ms
  • Release Time: 10ms
  • Initial withstand voltage of Contact and Contact: 1000VAC/1min
  • Initial withstand voltage of Contact and Coil: 1500VAC/1min
  • Insulation Resistance: 100MΩ/( 500VDC)
  • Atmospheric Pressure:86-106KPa

Applications:

Car Relay Suit for Automobiles and Devices Equipped with a 12 Volt DC Power Source. Used in LED Work Light, Fog Lamps, Starter, Wiper, Fans, Speakers, Central Locking, Alarm,Electric Windows, etc.

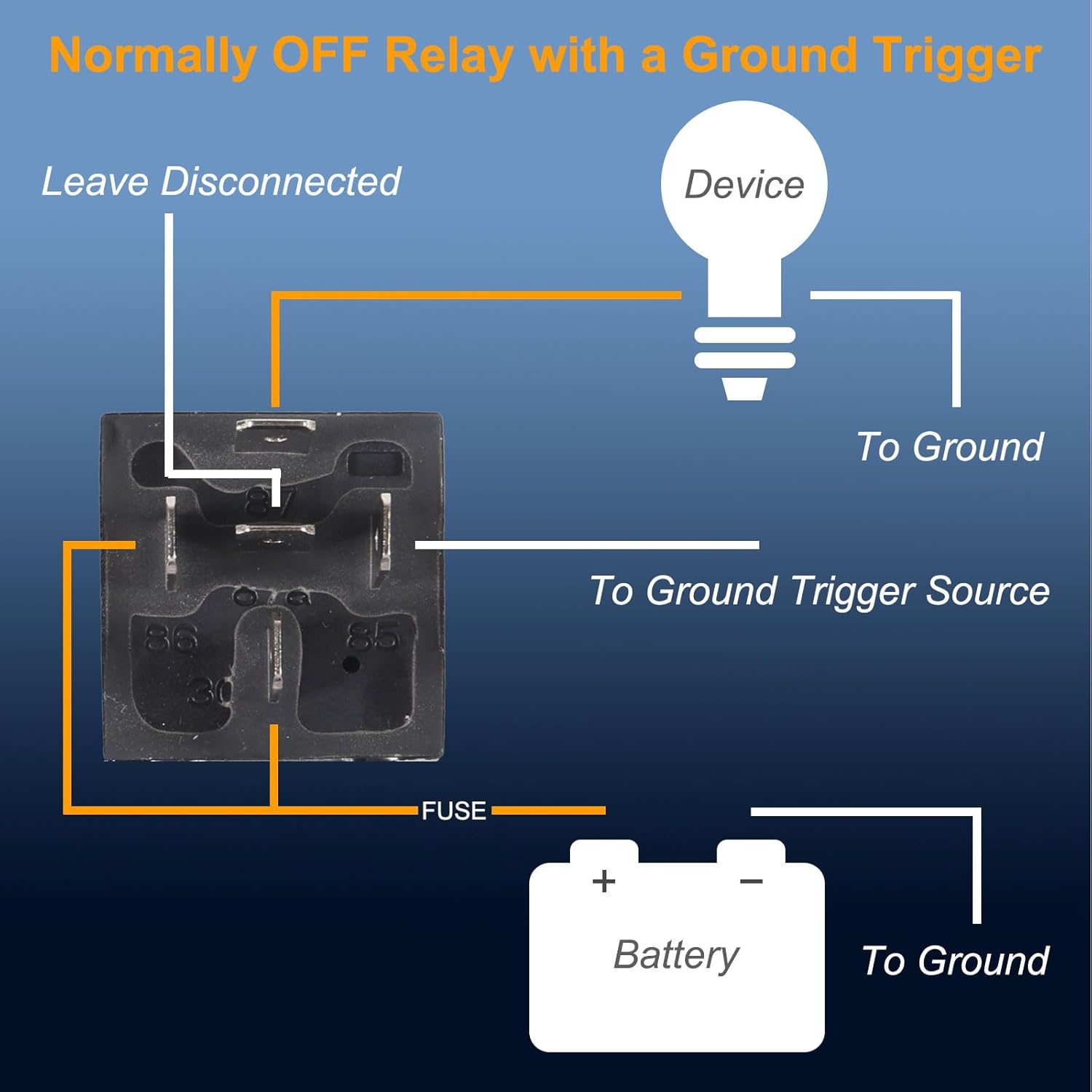

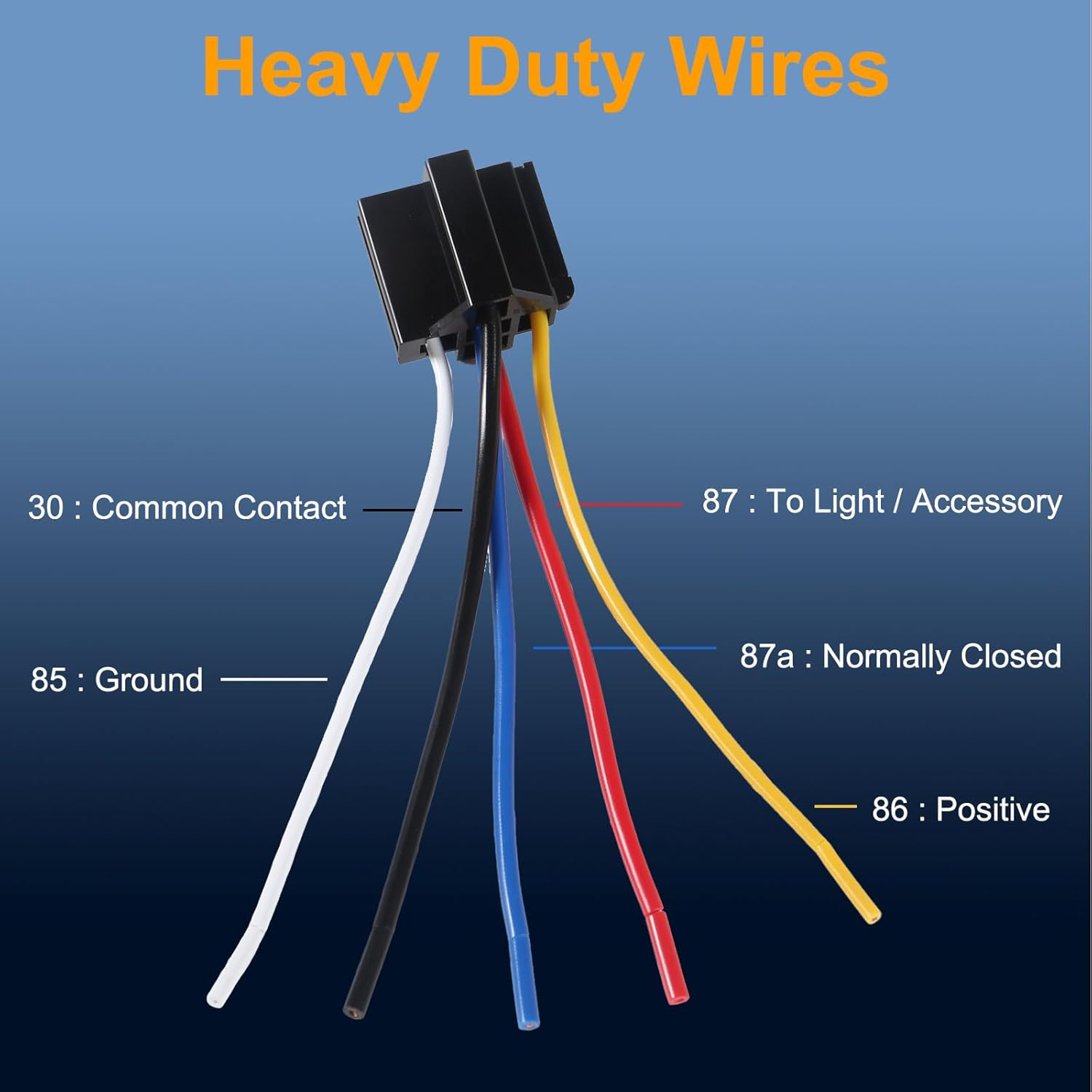

Terminals:

  • 85 Coil, Ground
  • 86 Coil, Trigger
  • 87 Normally Open (N/O)
  • 87a Normally Closed (N/C) - not present on 4 pin relays
  • 30 Common connection to NO & NC terminals
  • Item Weight: 330 g
  • Country of origin: China
  • Package Dimensions: 16.2 x 15.3 x 4.2 cm; 330 Grams
  • Manufacturer reference: AU09765B
  • Manufacturer: DIANN
