75Mm X 30Mm 7530 12V Dual Ball Bearing DC Brushless Cooling Blower Fan AV-F7530MB CE TUV
75Mm X 30Mm 7530 12V Dual Ball Bearing DC Brushless Cooling Blower Fan AV-F7530MB CE TUV
-
This item is currently not available
- Package Content : 1 x DC Brushless Cooling Blower Fan; Rated Voltage: DC 12V, Current: 0.15A;
- Bearing Type: Dual Ball Bearing, Speed: 3000 RPM, Air Flow: 9.40CFM;

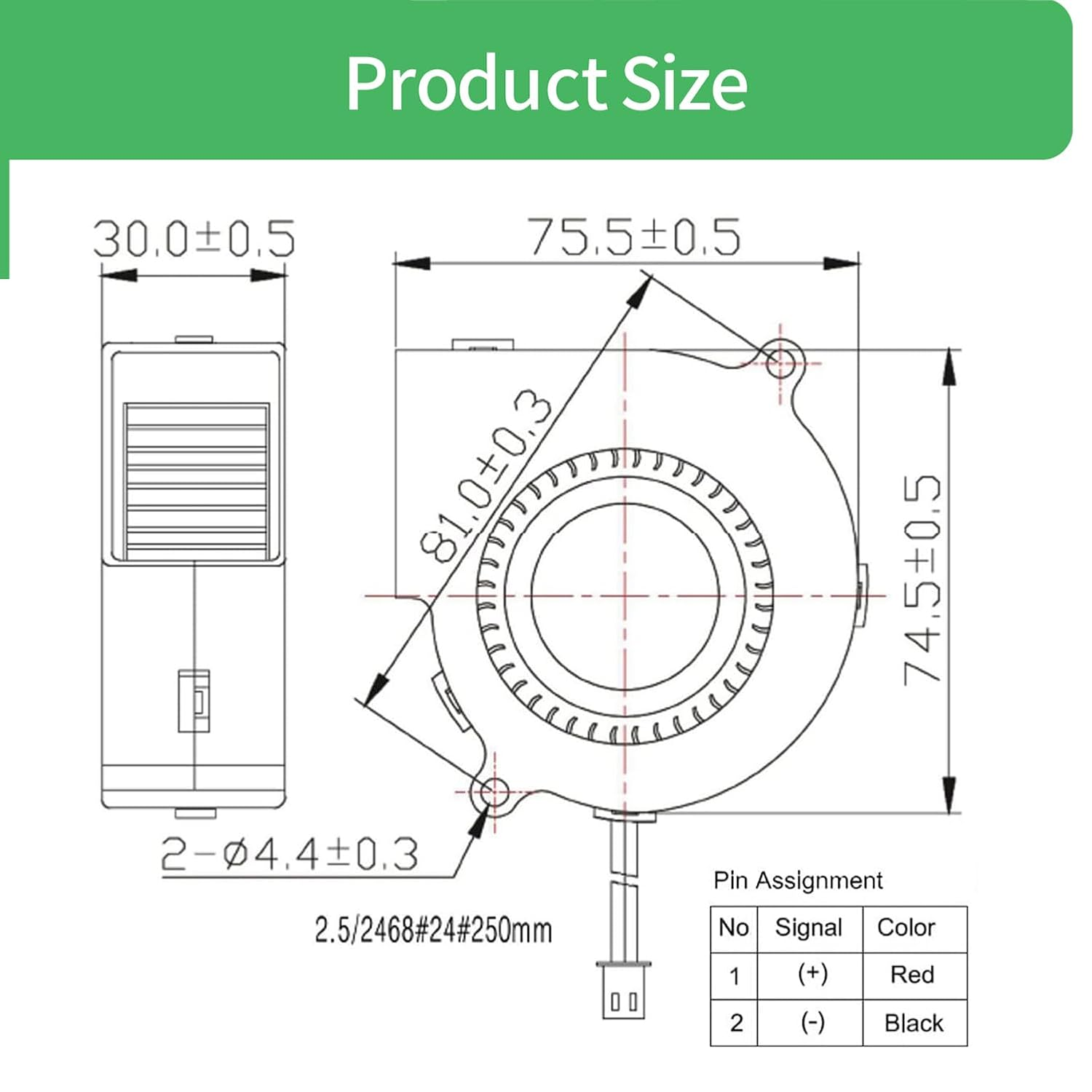

- Size: 75mm x 75mm x 30mm, Connector: 2 Terminal Connector with 2pin-xh2.5, Lead Wire Length: 250mm/24AWG.
- Life Expectance: 50000 hours at 25 degree, Noise: 28.35dB(A).

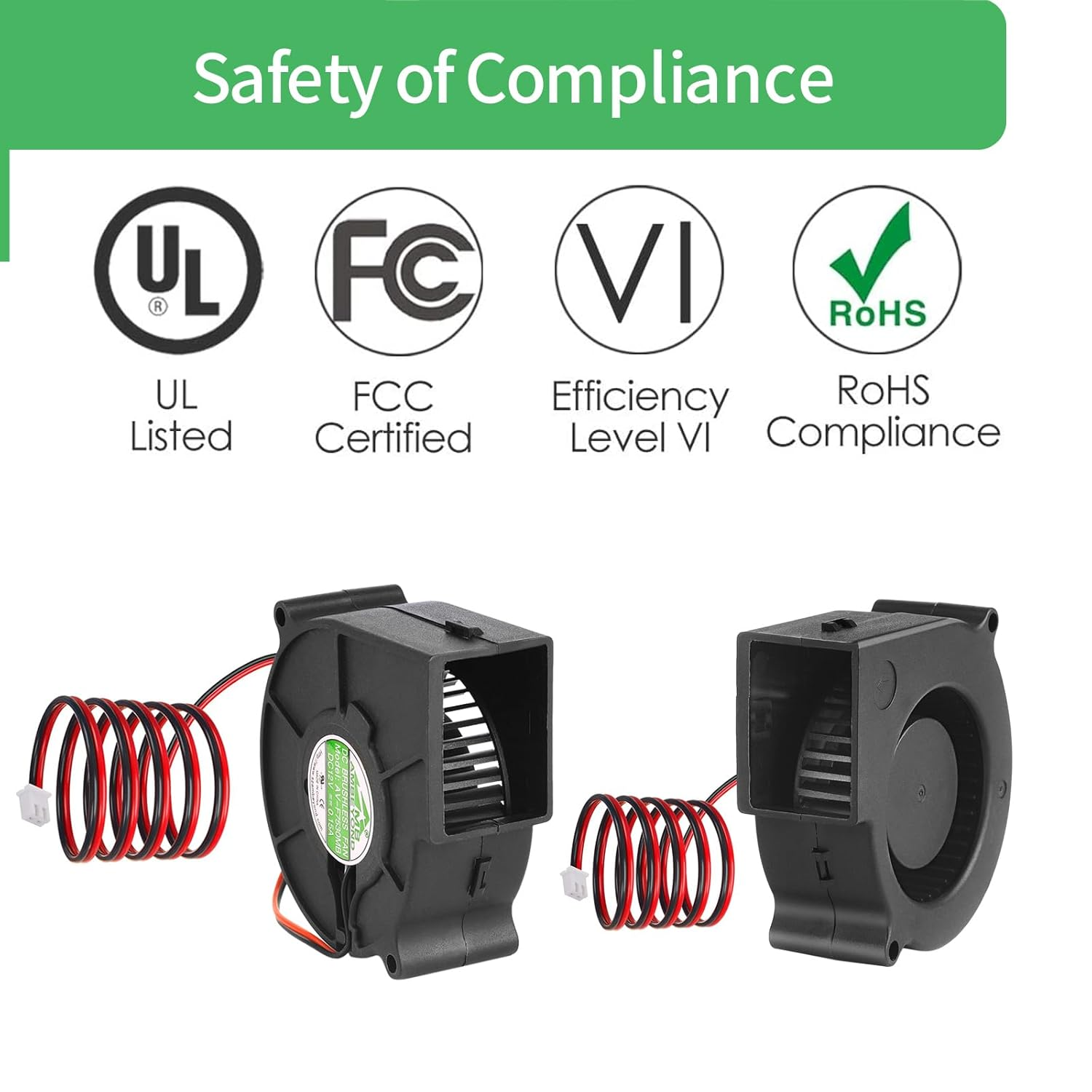

- UL CE approved certification. Waranty: 3 year and lifetime support.
Description: Model: AV-F7530MB Name: 12V DC BRUSHLESS BLOWER FAN Rated Voltage : 12V DC Operation Voltage: DC 6.8-12.8V Rated Current : 0.15AConnector: 2pin-ph2.5 Rated Speed: 3000 R.P.M. Max. Air Flow: 9.40CFM Life Expectance: 50,000 hours at rated voltage and normal temperature and humidity Insulation Level: UL Class A Certificate: CE,UL Acoustic Noise: 28.35dB*** DC Line Length :240mm Rotation Direction: Counter-clockwise Size: 75x75x30mm Weight: 75g ***:Noise is measured at rated test condition in semi-anechoic chamber in free air with microphone at a distance of 1m apart from the axis of fan at intake side. *While the fan is running, please do not lock the fan intentionally for a long period of time, the action will lead over-load and over-heat, will damage the fan, even burn the wire.
- Item Weight: 90 g
- Item Model Number: AV-F7530MB
- Product dimensions: 7.49 x 7.49 x 3 cm; 90 Grams
- Is discontinued by manufacturer: No
- Manufacturer: Ronghua
-
This item is currently not available
