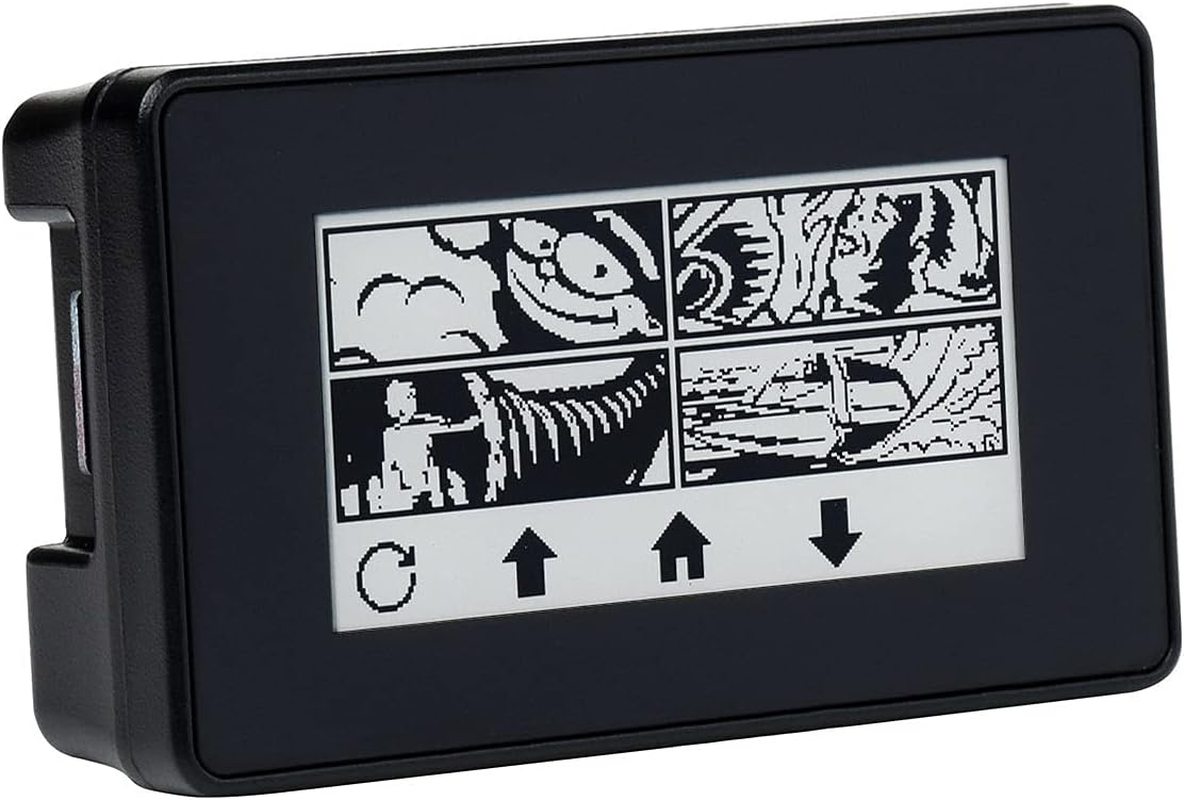

Waveshare 2.13Inch Touch E-Paper E-Ink Display for Raspberry Pi Zero 250×122 Pixels Supports Partial Refresh with ABS Protection Case

Waveshare 2.13Inch Touch E-Paper E-Ink Display for Raspberry Pi Zero 250×122 Pixels Supports Partial Refresh with ABS Protection Case

A$63.60
Availability:
  • In Stock
Product details
  • 2.13" capacitive touch e-Paper display, 5-point touch, 250×122 pixels. Supports waken up by user-defined gesture
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing

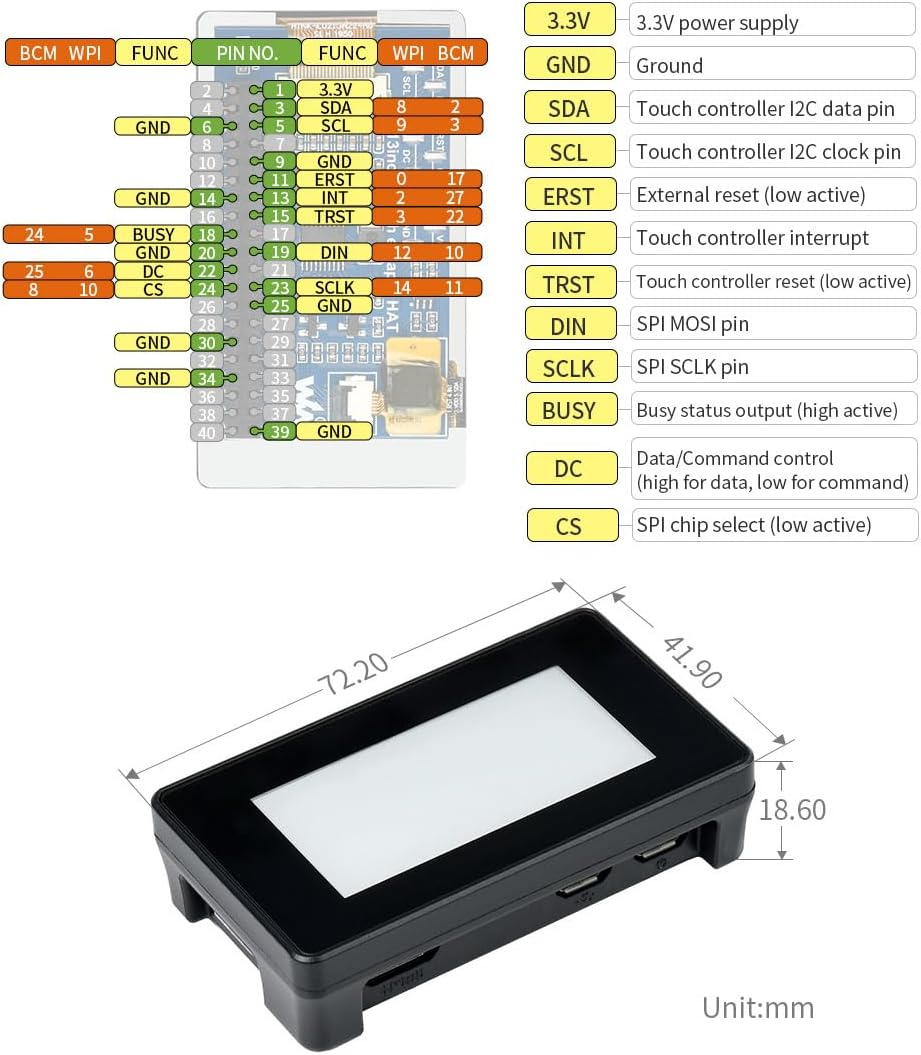

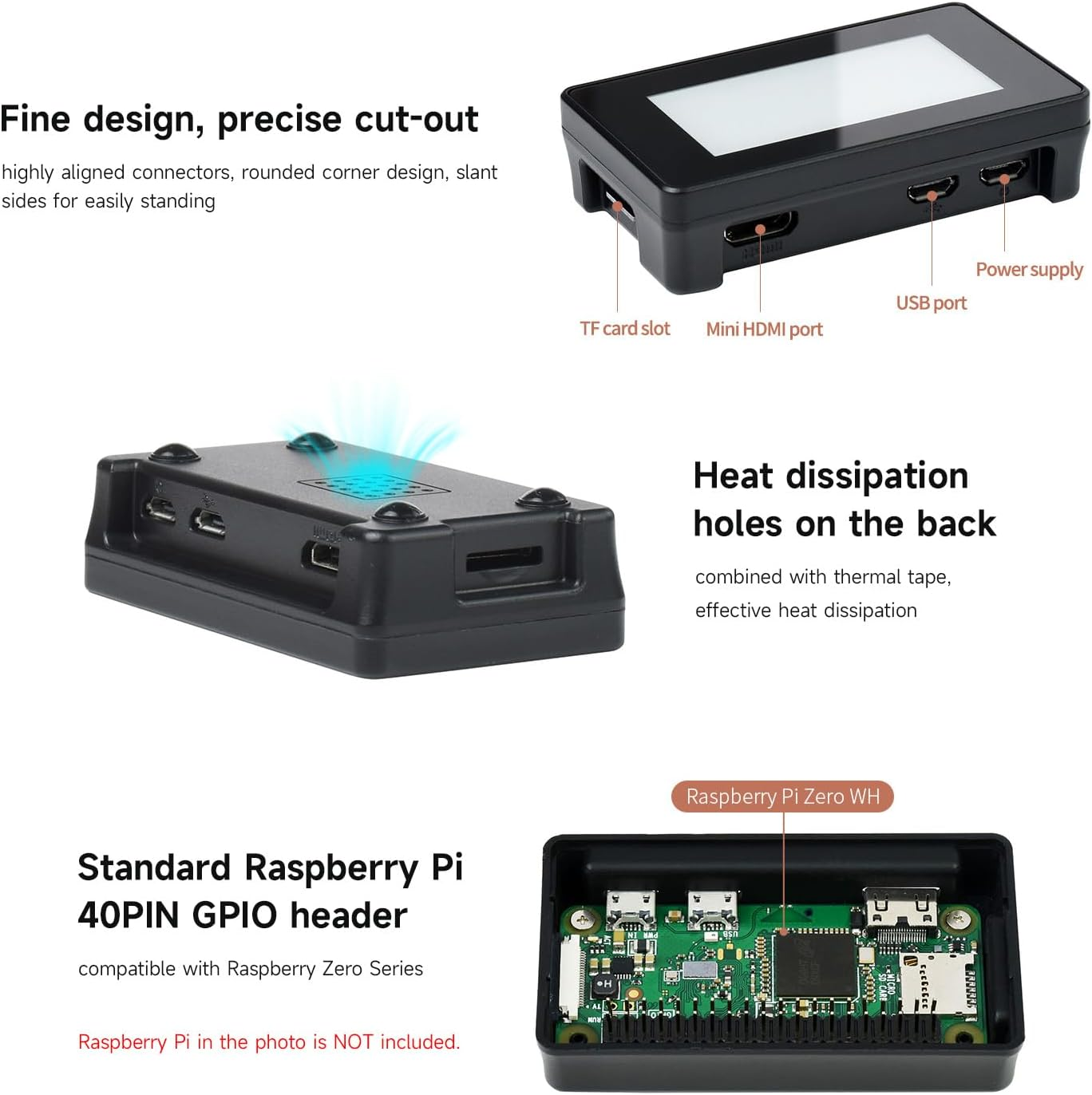

  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W
  • Comes with development resources and manual (examples for Raspberry Pi)

Product Description

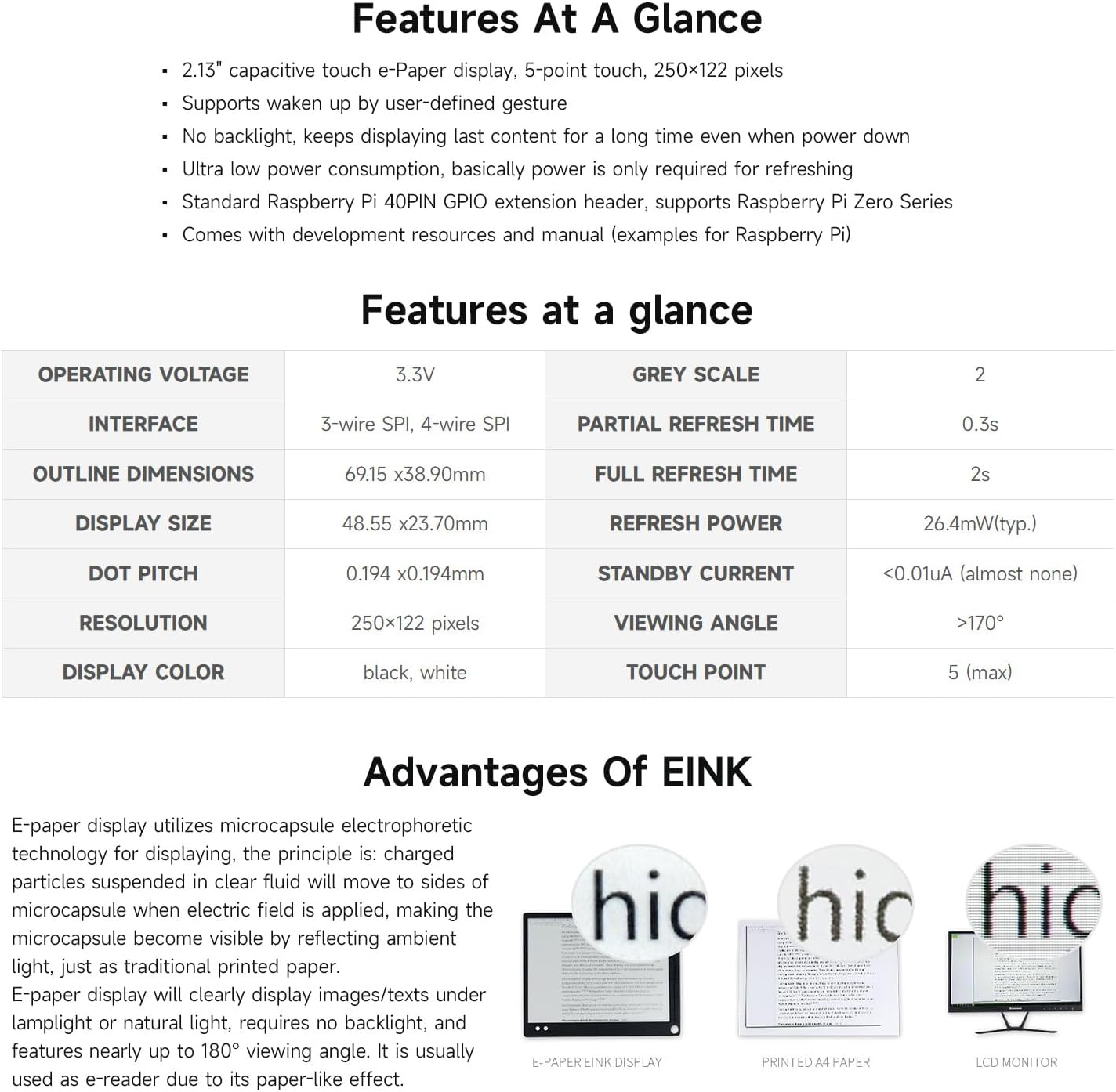

Features At A Glance

  • 2.13" capacitive touch e-Paper display, 5-point touch, 250×122 pixels
  • Supports waken up by user-defined gesture
  • No backlight, keeps displaying last content for a long time even when power down
  • Ultra low power consumption, basically power is only required for refreshing
  • Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi Zero / Zero W
  • Comes with development resources and manual (examples for Raspberry Pi)

Specifications

OPERATING VOLTAGE 3.3V
INTERFACE 3-wire SPI, 4-wire SPI
OUTLINE DIMENSIONS 69.15 x38.90mm
DISPLAY SIZE 48.55 x23.70mm
DOT PITCH 0.194 x0.194mm
RESOLUTION 250×122 pixels
DISPLAY COLOR black, white
GREY SCALE 2
PARTIAL REFRESH TIME 0.3s
FULL REFRESH TIME 2s
REFRESH POWER 26.4mW(typ.)
STANDBY CURRENT <0.01uA (almost none)
VIEWING ANGLE >170°
TOUCH POINT 5 (max)

WIKI: waveshare.com/wiki/2.13inch_Touch_e-Paper_HAT?amazon

  • Item Model Number: 2.13inch Touch e-Paper HAT (with case)
  • Processor: arm_v7
  • Operating System: Linux
  • Colour Name: 2.13inch Touch e-Paper HAT (with case)
  • Item Dimensions L x W x H: 6.9 x 3.9 x 3.9 centimetres
  • Series: 2.13inch Touch e-Paper HAT
  • Brand: Waveshare
  • RAM: DDR4
  • Country of origin: China
  • Wireless Type: Bluetooth
  • Item Weight: 70 g
  • Number of processors: 1
  • Standing screen display size: 2.13 Inches
  • Processor brand: Broadcom
  • Product dimensions: 6.91 x 3.89 x 3.89 cm; 70 Grams
  • Colour: 2.13inch Touch e-Paper HAT (with case)
  • Manufacturer: Waveshare
