Function: 1. It covers almost all Models for Opel cars, even new cars with CAN-BUS based diagnostic, such as for Vectra-C, for Astra-H, for Zafira-B etc.
2. The program lets you to read out and clear fault codes, shows you live data, lets you to perform output test.
3. The program supports many control units, like Engine, Automatic Transmission, ABS, Airbag, Engine Cooling module, Instrument Cluster, Electronic Climate Control, Body Control Unit, just to name a few examples.
4. Since many pins used in the OBD connector for Opel, the diagnostic interface works as a multiplexer, and selects the appropriate pin for communication. PIN3, PIN7, PIN8, PIN12 = Serial Link (ISO9141, KW81, KW82, KWP2000)
5. Fault codes will be shown with all available information: Full Fault Code Text Description: 1) Full status information (Present, Not present, Intermittent) 2) You can print out, save, or copy the fault codes to any other application. You can go directly to the measuring blocks window from the fault codes window. 3) The program shows you measuring block information on many control module, you can choose anything from the list on your own. 4)

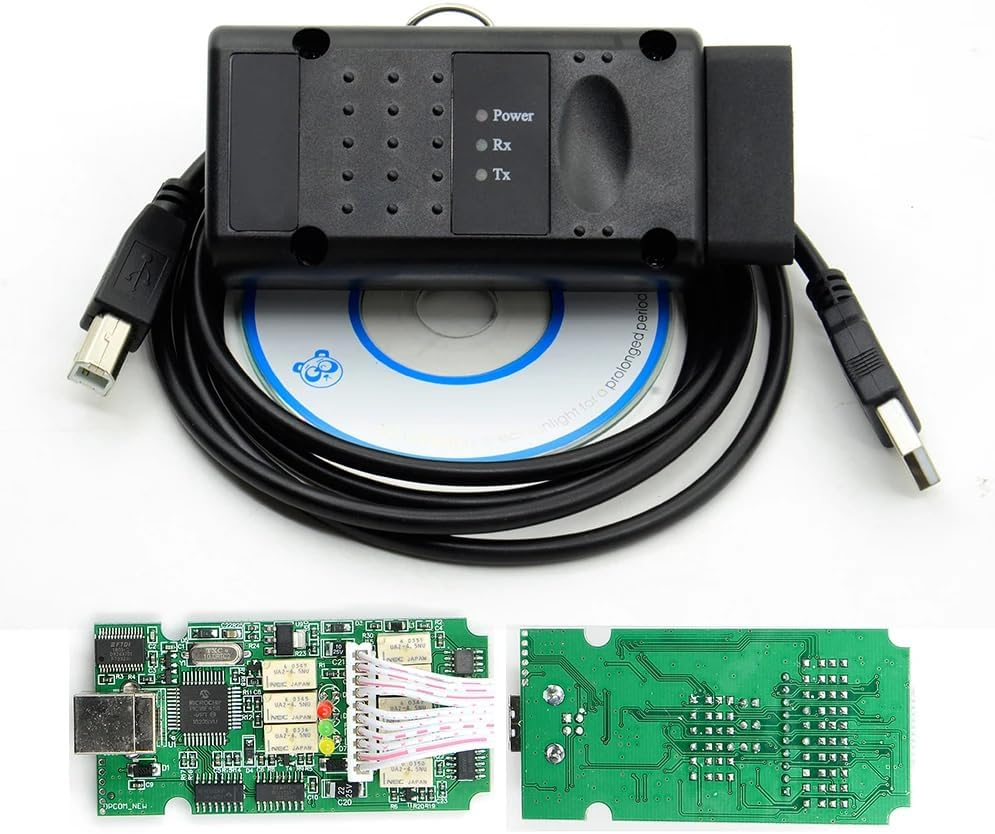

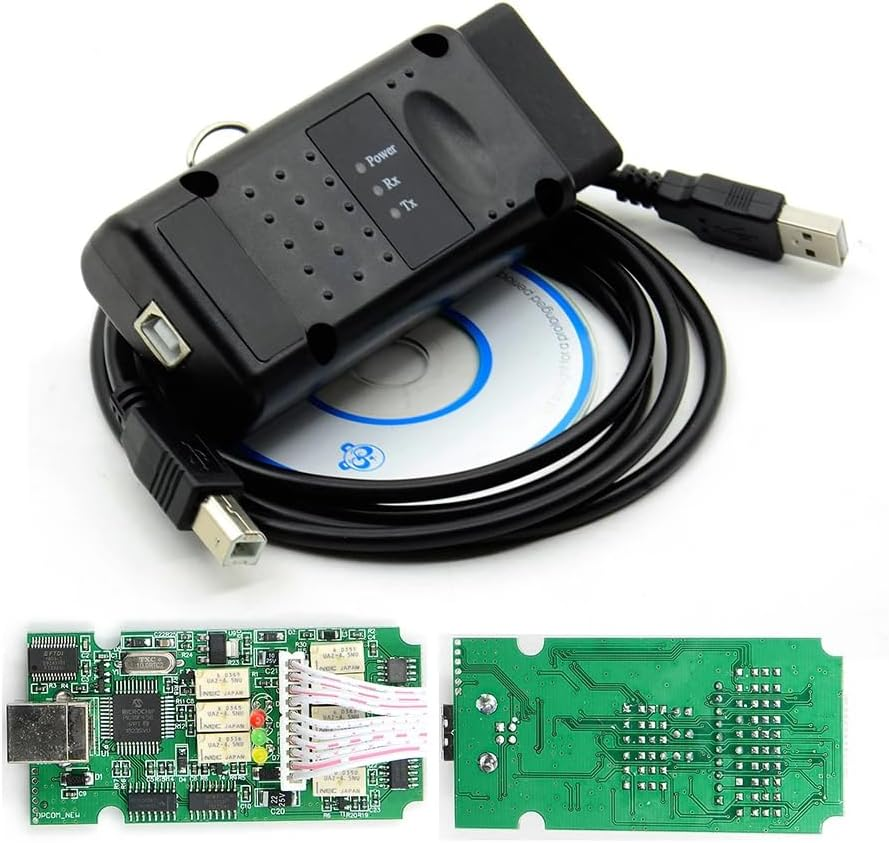

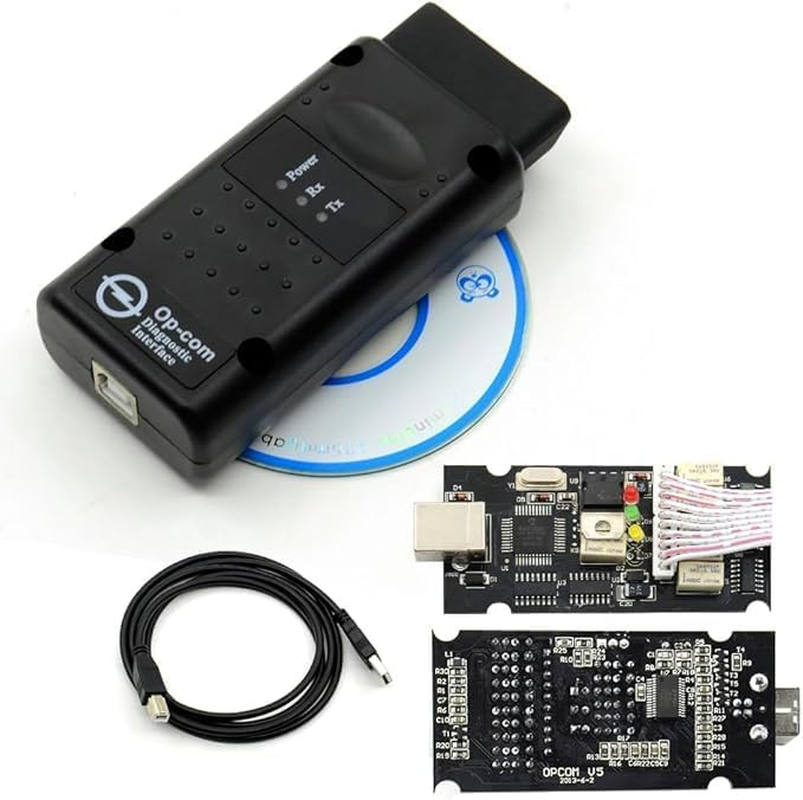

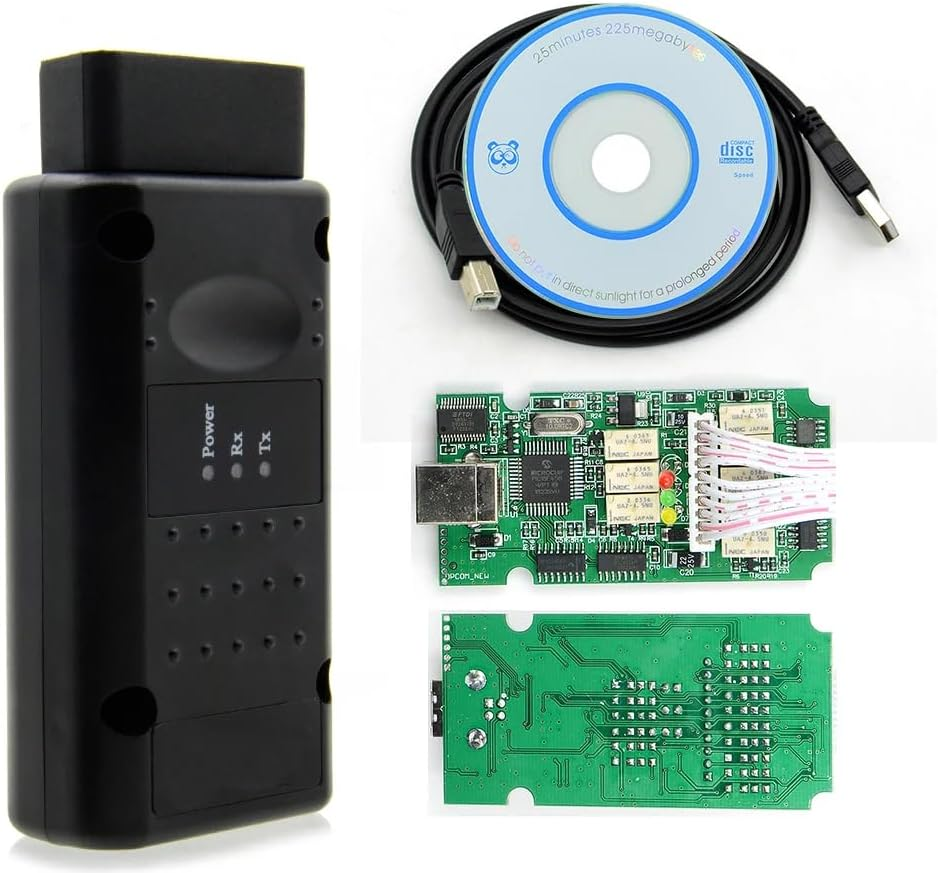

The program is capable of showing 8 measuring block parameter simultaneously. The sample rate is depends mostly on the communication protocol. For example, older system, like Omega-B X 25 DT Engine (ISO-9141-2) can be very slow, during communication, while newer Multec, or for B0sch units are faster (using KWP-2000), and the newest CAN based control units are very fast! You can also run output tests on many controllers: PIN6-PIN14 PIN3-PIN11 PIN1 HSCAN - Dual-wire, High Speed CAN-BUS, 500 kbps MSCAN - Dual-wire, Medium Speed CAN-BUS, 95 kbps SWCAN - Single-wire, Low Speed CAN-BUS, 33.3 kbps Package list: 1pc x OP COM Interface 1pc x USB Cable 1pc x CD with Software and Drivers OPCOM 2014V V1.99 FTDI FT232RQ NEW OPCOM 120309a for
OPEL Feature: 1. OPCOM is a special PC Based diagnostic interface especially for OPEL. 2. Software Version: 120309a Firmware Version: 1.99 3. Never Update Online. Online Updation Will Damage The OP-COM
