This adapter allows you to connect a standard car radio to the existing active speakers of your vehicle.

No specialist knowledge is required during installation.

Adapter is inserted between the wiring harness of your vehicle and your new radio.

The ground cable with the "eyelet" is screwed to the radio housing (ground). Done!

Special features:

Plug and play installation.
Suitable for Bose, DSP, partial and fully active systems
Includes power supply adapter (20 pin red), which regulates the ignition logic as with the factory radio and supplies the active speakers with power.
Technical data:

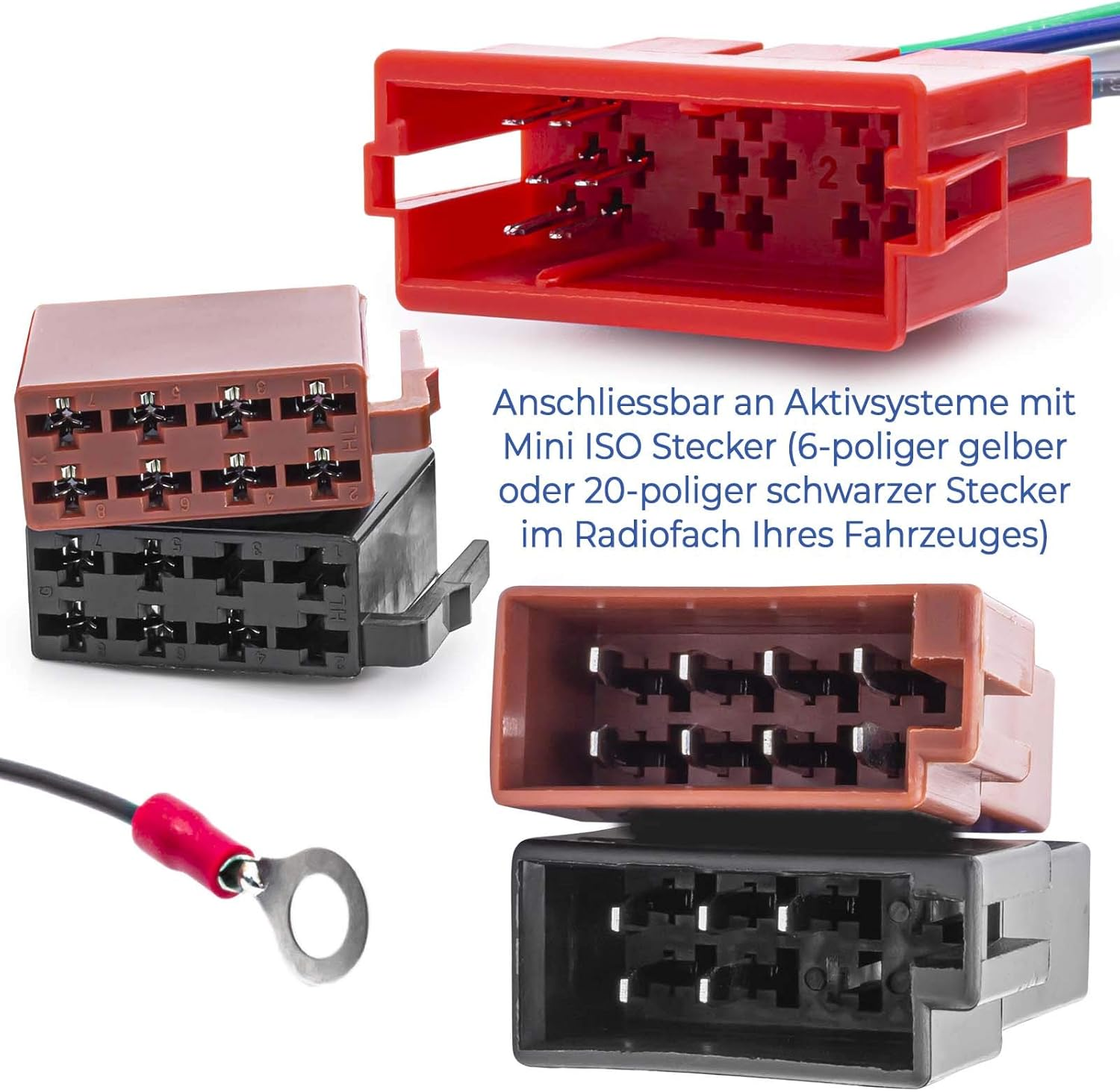

2 x 8-pin DIN ISO connector.
2 x 8-pin DIN ISO socket.
1 x mini ISO socket 20-pin.
1 x ground cable.
Cable length: approx. 18 cm.
Compatible with:

Audi A2, A3, A4, A6, A8, TT.
Porsche 996 Boxter
Seat from year of manufacture 1998
VW from year of manufacture 1998
Also with Bose Sound System, DSP, partial and fully active systems

Package includes:

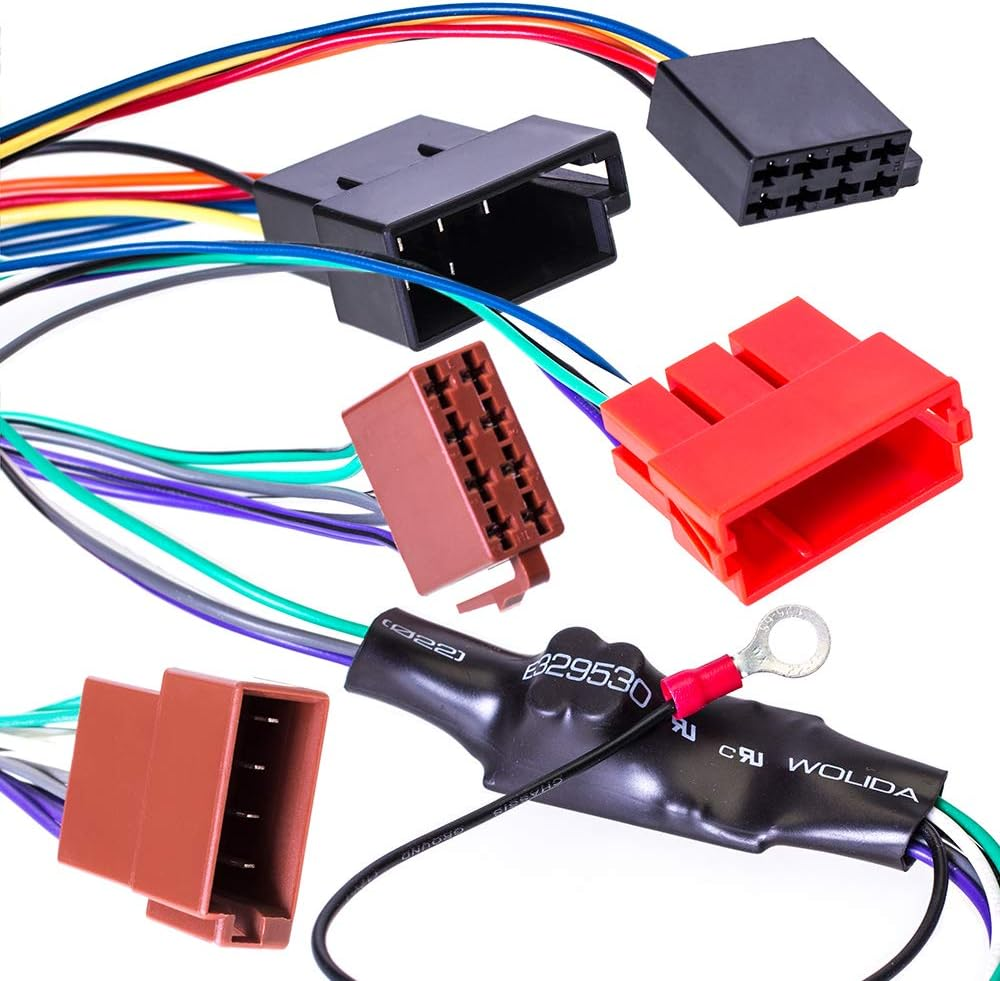

1 x active system radio adapter cable.
