Feature:
1. Safe : Includes overvoltage , overload and functions, which can provide long distance communication and extend the working life of the solar system.

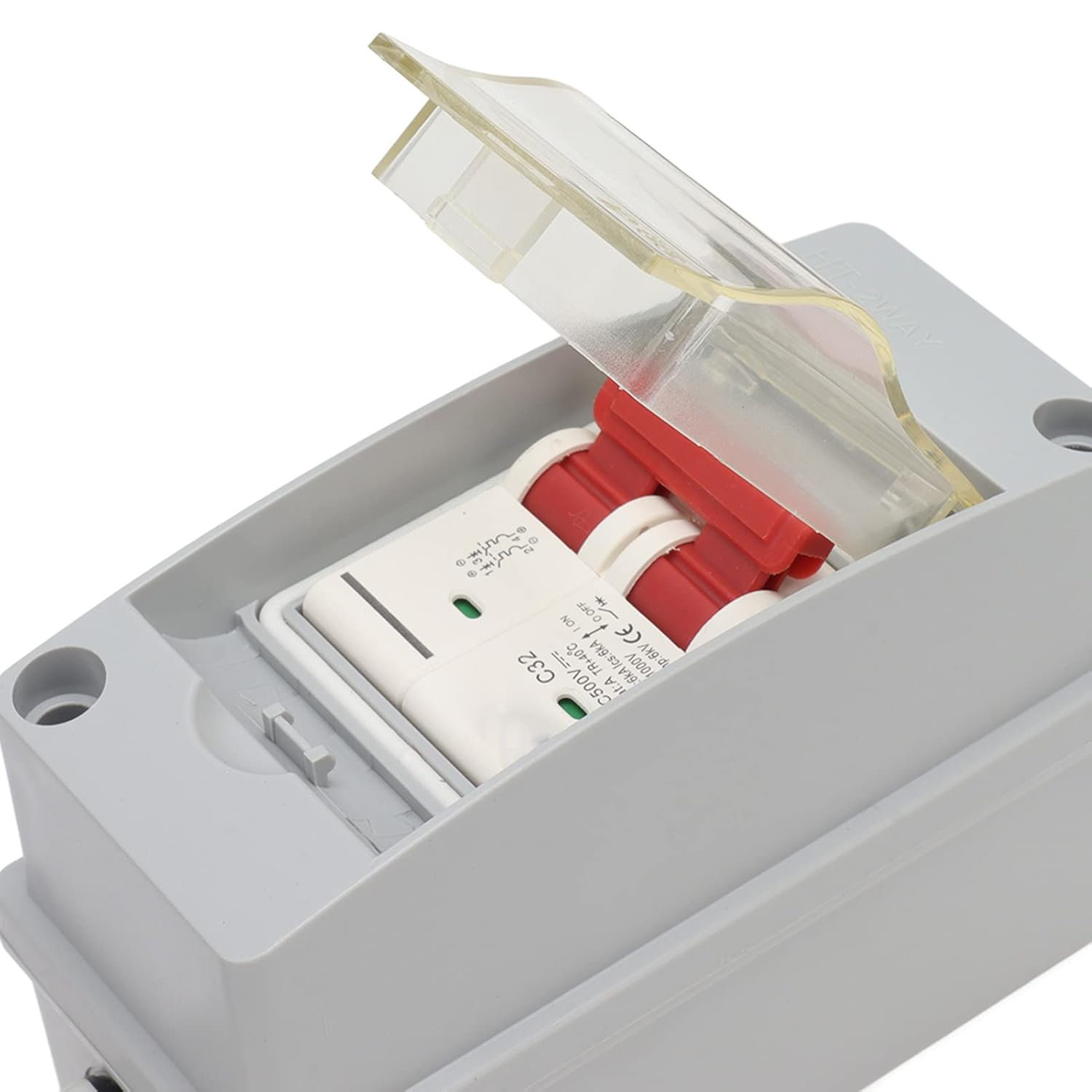

2. Great in Design: Equipped with the reliable DC module to maximize the of photovoltaic DC disconnector, and the transparent cover is also convenient for checking the status of the circuit breaker.
3. The Reliability: The disconnector is allowed to be installed indoors and outdoors, with built in DC switchgear, which can be effectively protected in severe weather and environment.

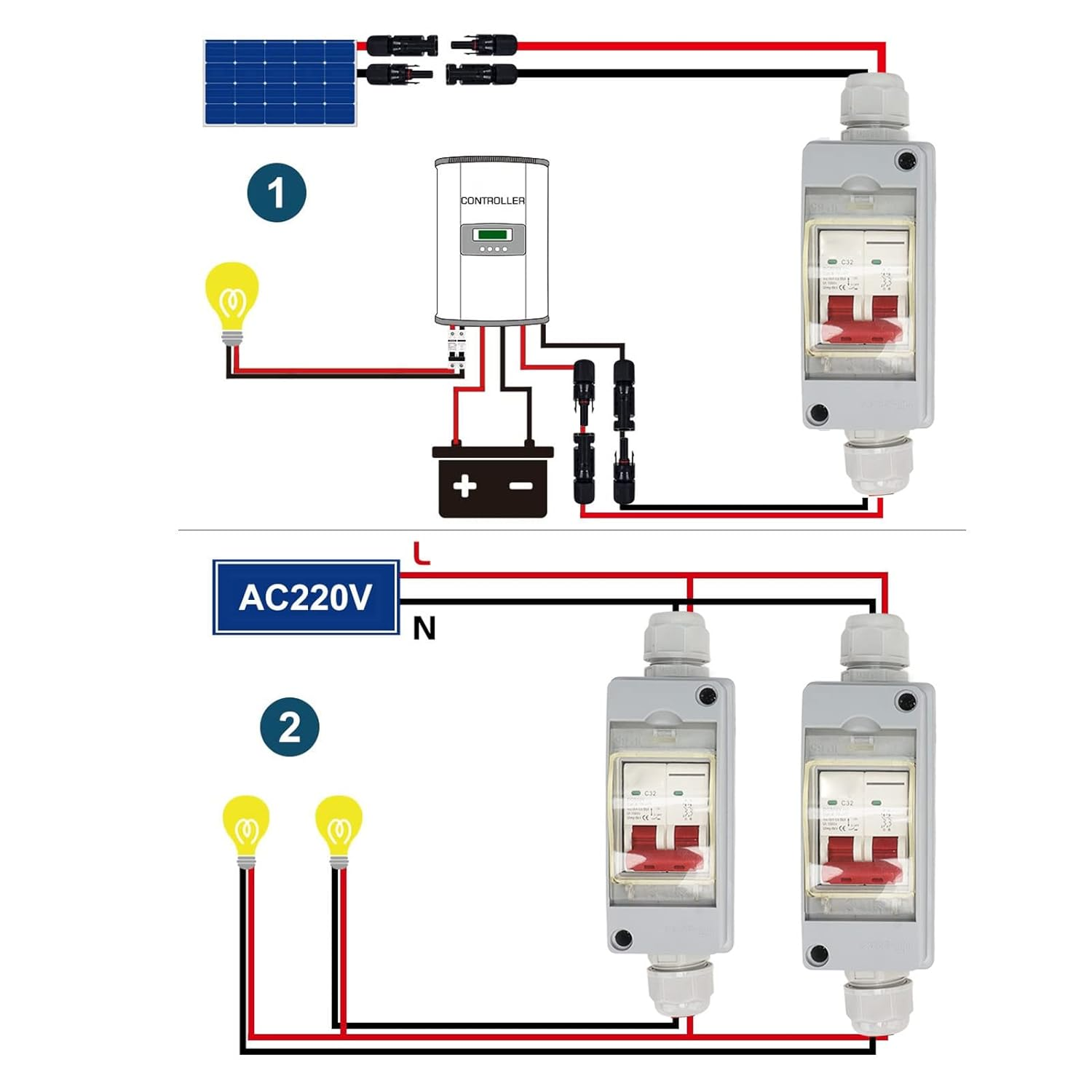

4. Extensive Using: Applicable to photovoltaic solar panel grid connected system and solar off grid system solar power generation system. Also for household, RV, etc.
5. Easy to Install: 500V solar photovoltaic DC combiner box, installed between the solar panel and the solar inverter, can achieve faster and safer installation, plug and play.
Specification:
Item Type: Circuit Breaker
Model: LQX C32.2
Material: Polycarbonate, ABS
Input: 1 String
Output: 1 String
Maximum Voltage: 500V
Maximum DC Short Circuit Input Current Isc: 32A, replaceable.
Grade: IP65

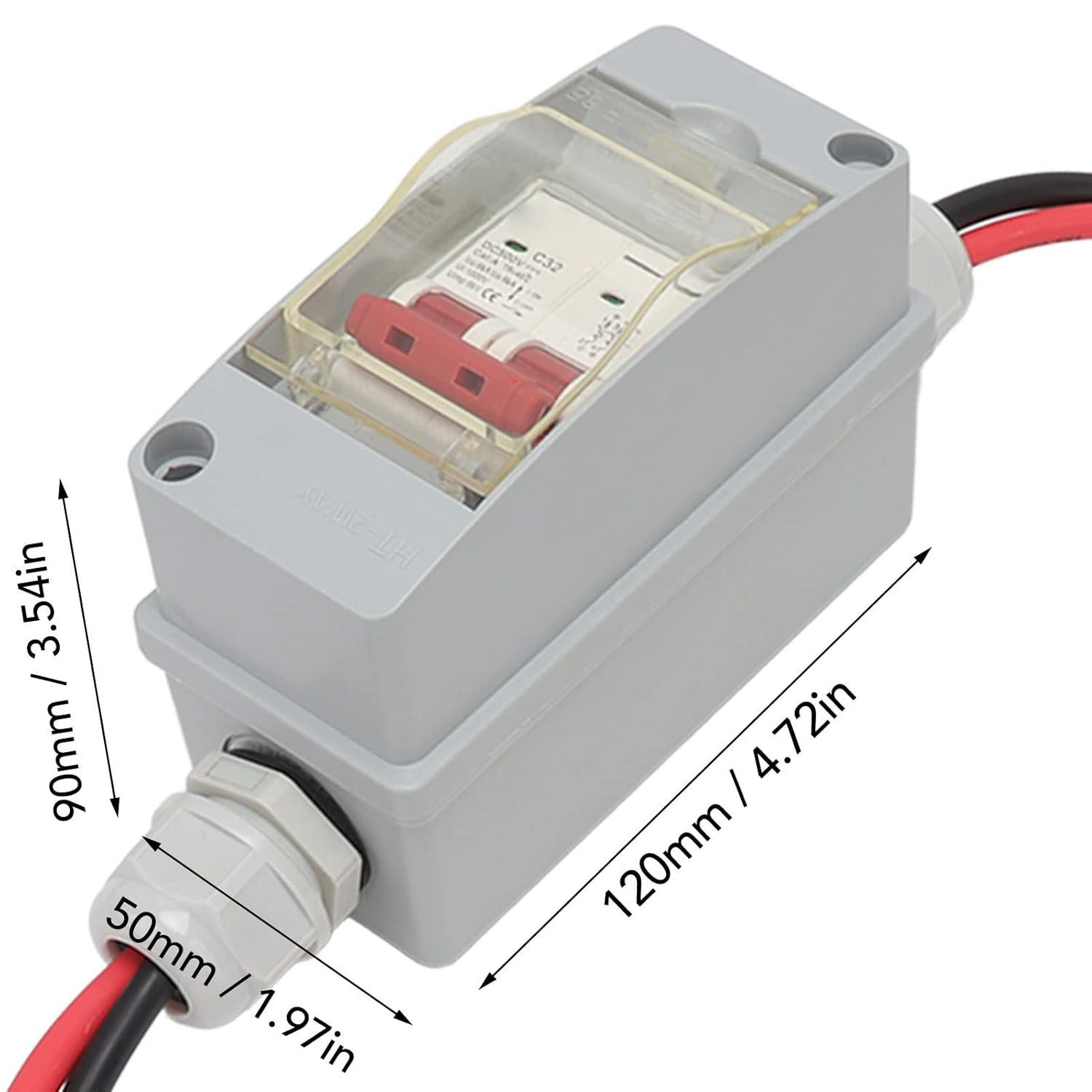

Product Size: Approx. 120 x 55 x 90mm / 4.72 x 2.17 x 3.54in
Cable Inlet: PG20 4²
Output Cable Gland: PG20 4²
Rated Insulation Voltage Ui: 400V
Rated Current Le: 32A
Maximum Working Voltage Ucpv: 500V
Rated Working Voltage: 500V

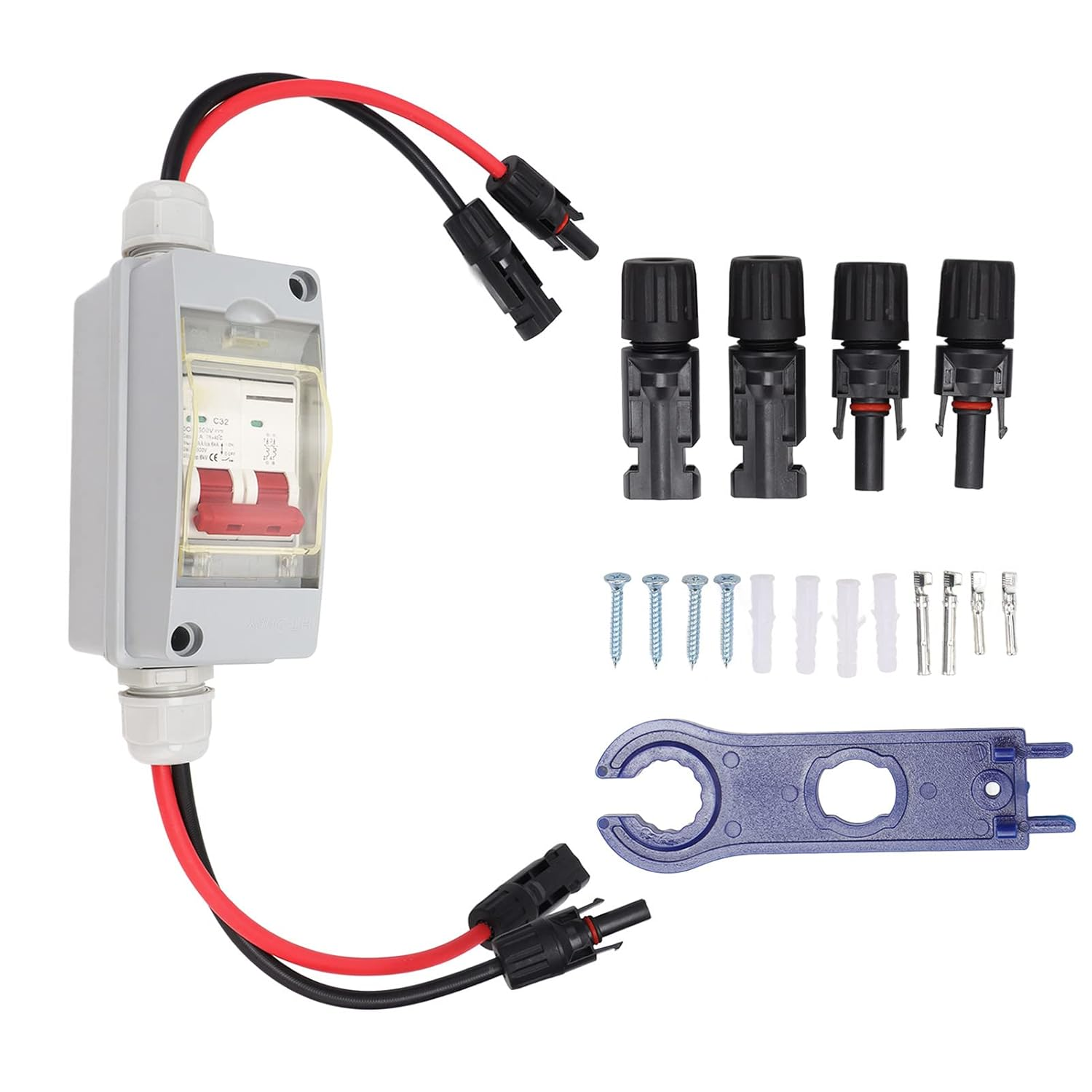

Package List:
1 xCircuit Breaker
1 x User Manual
or
1 x Circuit Breaker

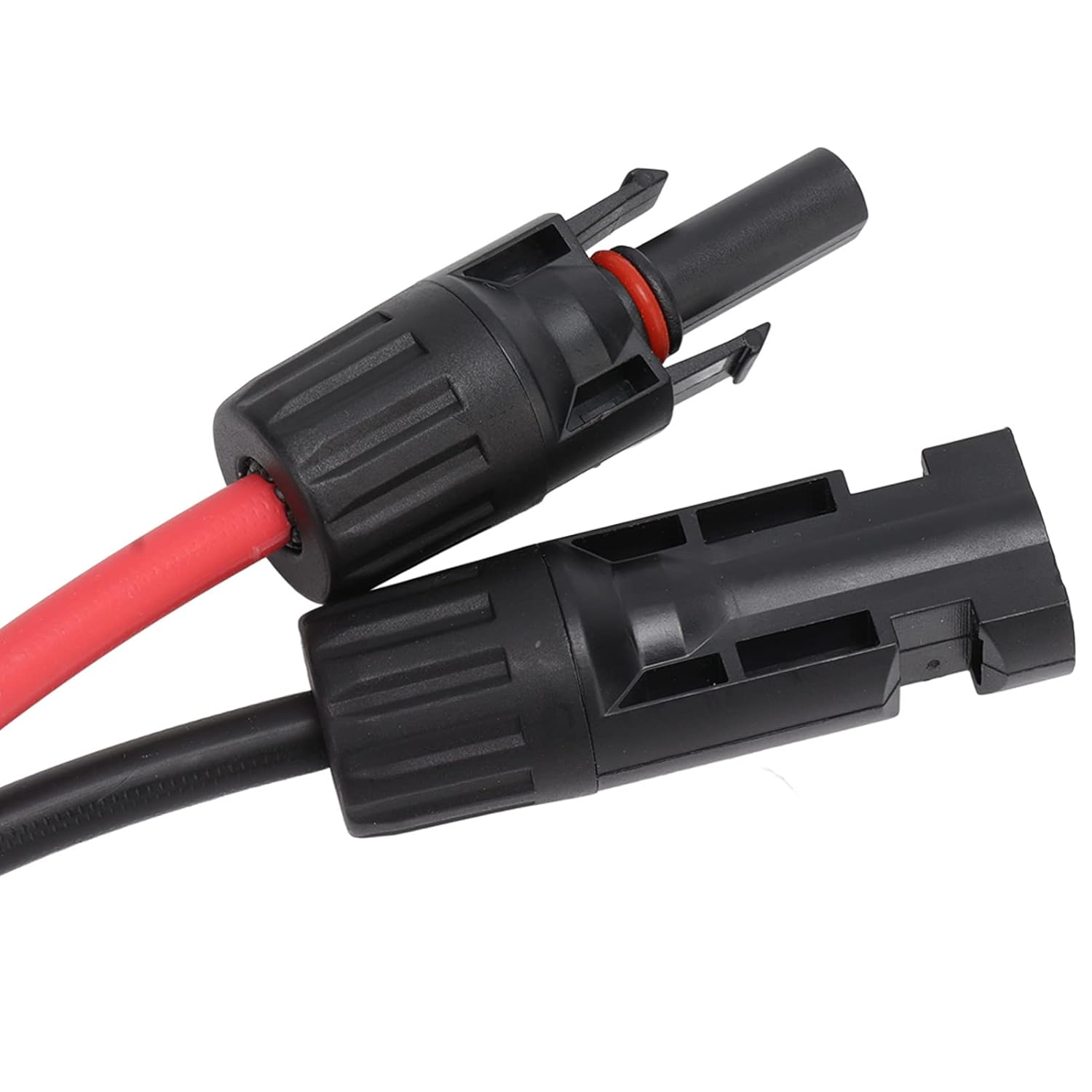

4 x Connector (2pcs male connector, 2pcs female connector)
4 x Core
4 x Screw
4 x Wall Plug
1 x PV Wrench
1 x User Manual
