Car Relay with Harness, 5 Pin 80A 12V On/Off Normally Open SPST Relay Socket Plug, Model JD2912-1Z-12VDC 80A 14VDC, Automotive Switches and Starters for Car SUV Truck

Car Relay with Harness, 5 Pin 80A 12V On/Off Normally Open SPST Relay Socket Plug, Model JD2912-1Z-12VDC 80A 14VDC, Automotive Switches and Starters for Car SUV Truck

A$17.05
Availability:
  • In Stock
Product details
  • 【Premium Quality】Car relay with harness is made of high-quality metal and plastic material. The metal has excellent electrical conductivity and good rust proof performance. The plastic is solid and durable, with heating resistance. Besides, sealing design makes it water resistant and dust proof, not easy to deform, break, or short circuit.

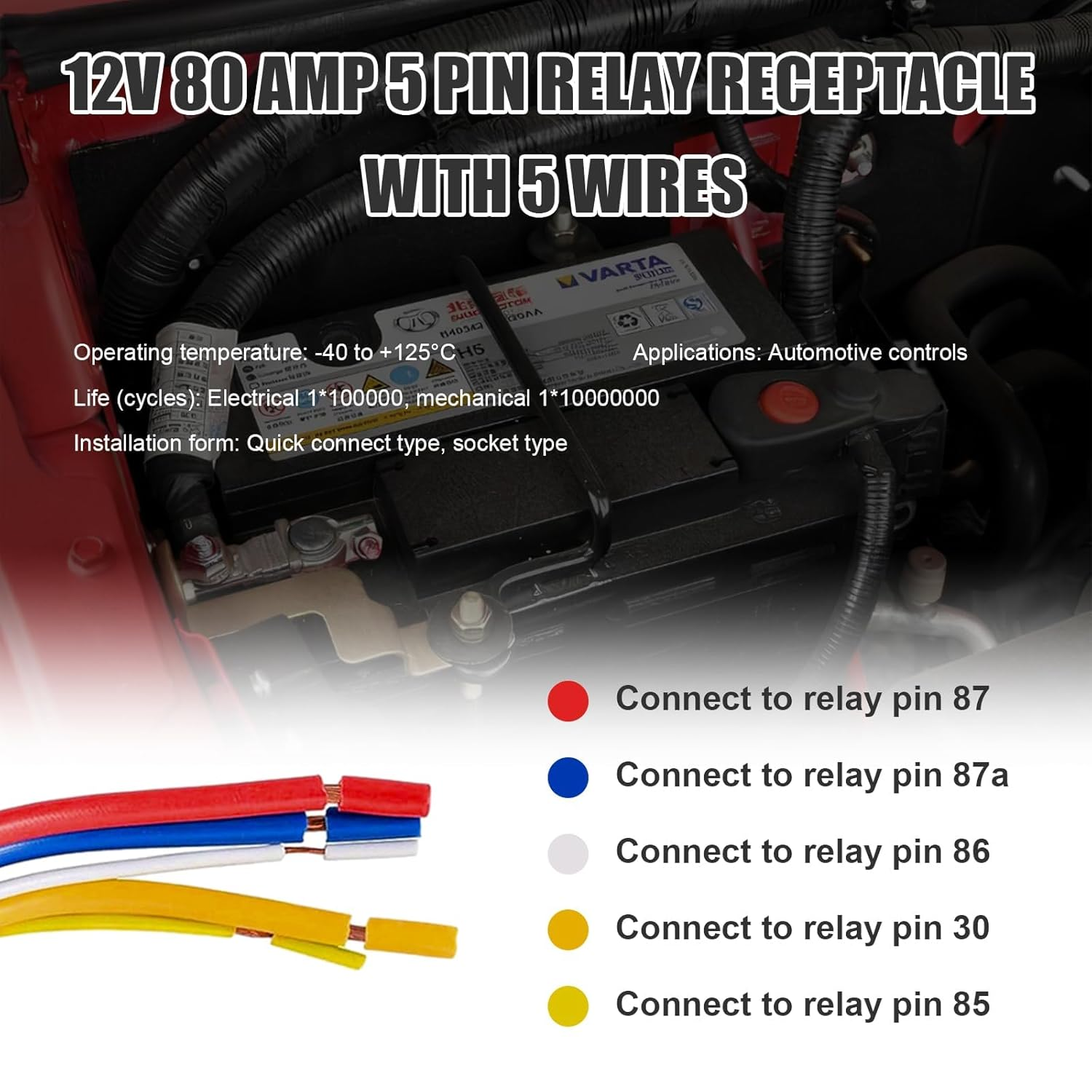

  • 【Wire Connection】The car relay kit has five wires. The color of the five lines is different, so that you can easily identify and connect them. Blue wire should be connected to relay pin 87a, white wire to relay pin 86, light yellow wire to relay pin 85, red wire to relay pin 87, dark yellow wire to relay pin 30.
  • 【Relay Specification】First of all, the matching model is JD2912-1Z-12VDC. Second, it has large capacity and can switch 80A current, and the max switching current is 90A. Third, the operating temperature is -40℃ to +125℃. Fourth, available standard contact forms are 1 group normally open, 1 group normally closed, 1 group conversion.

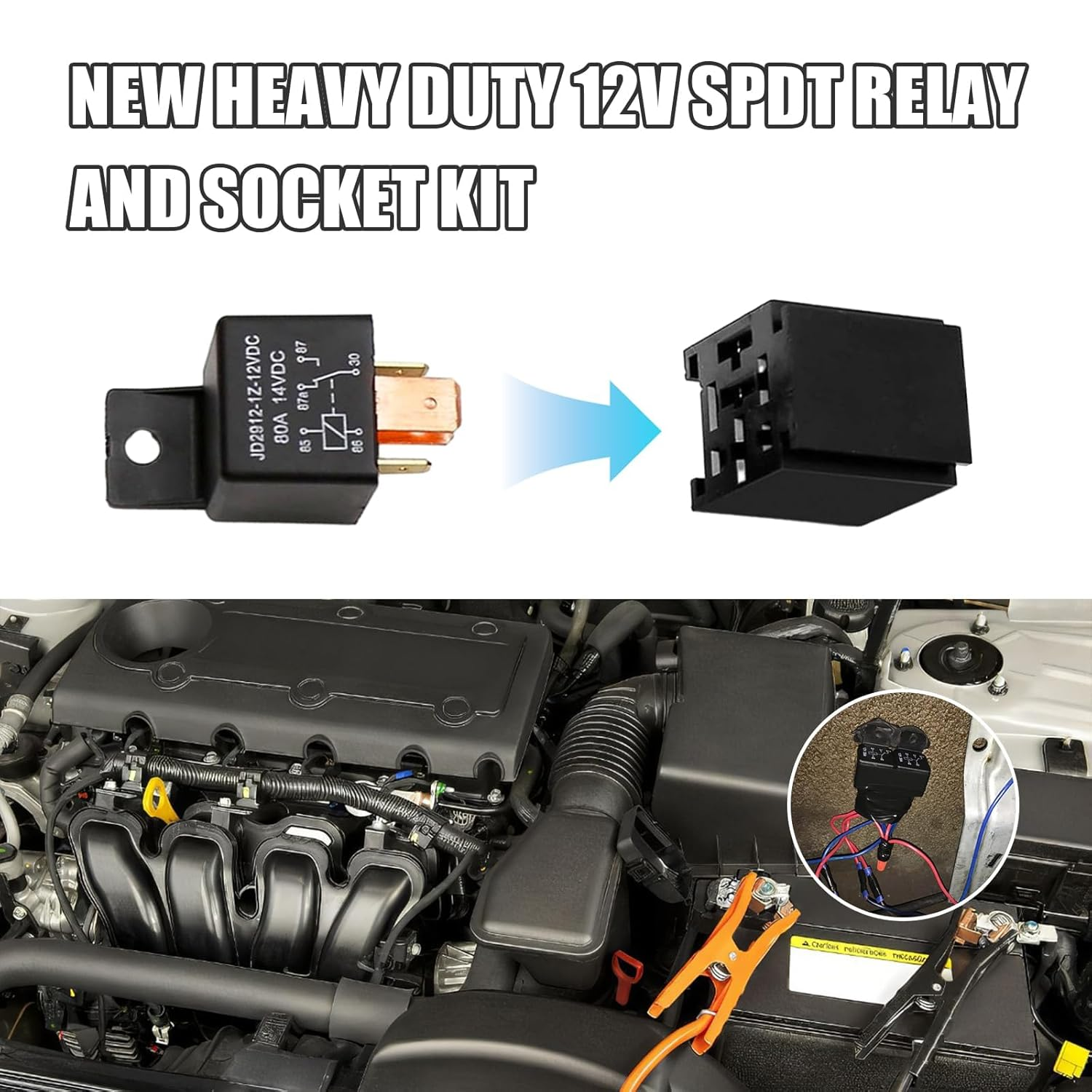

  • 【Package Content】Product's package is divided into three kinds, which are 1 piece, 2 pieces, and 4 pieces. Each piece includes a car relay with harness and a corresponding socket. When installing, you merely need to plug and play, which is very quick and convenient.

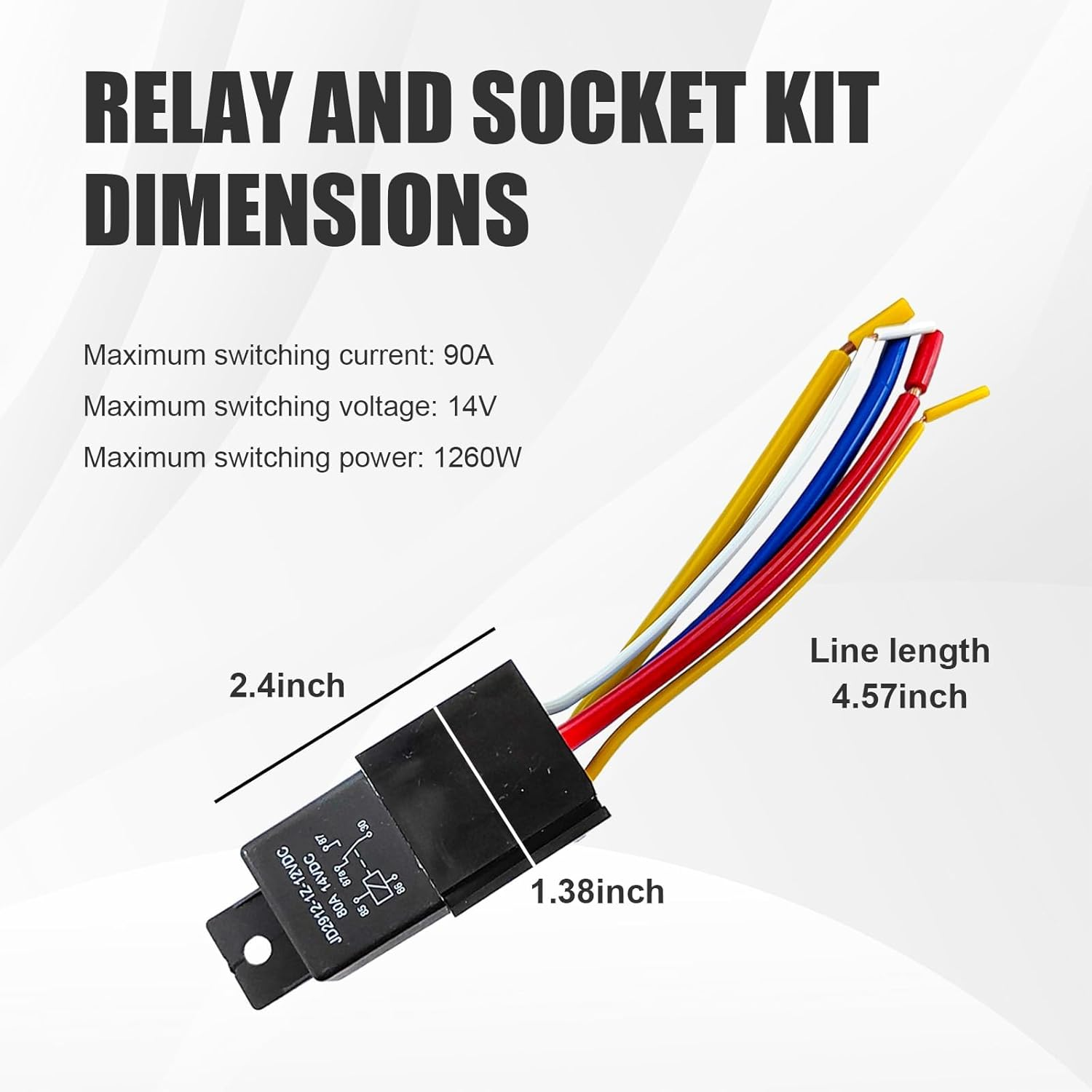

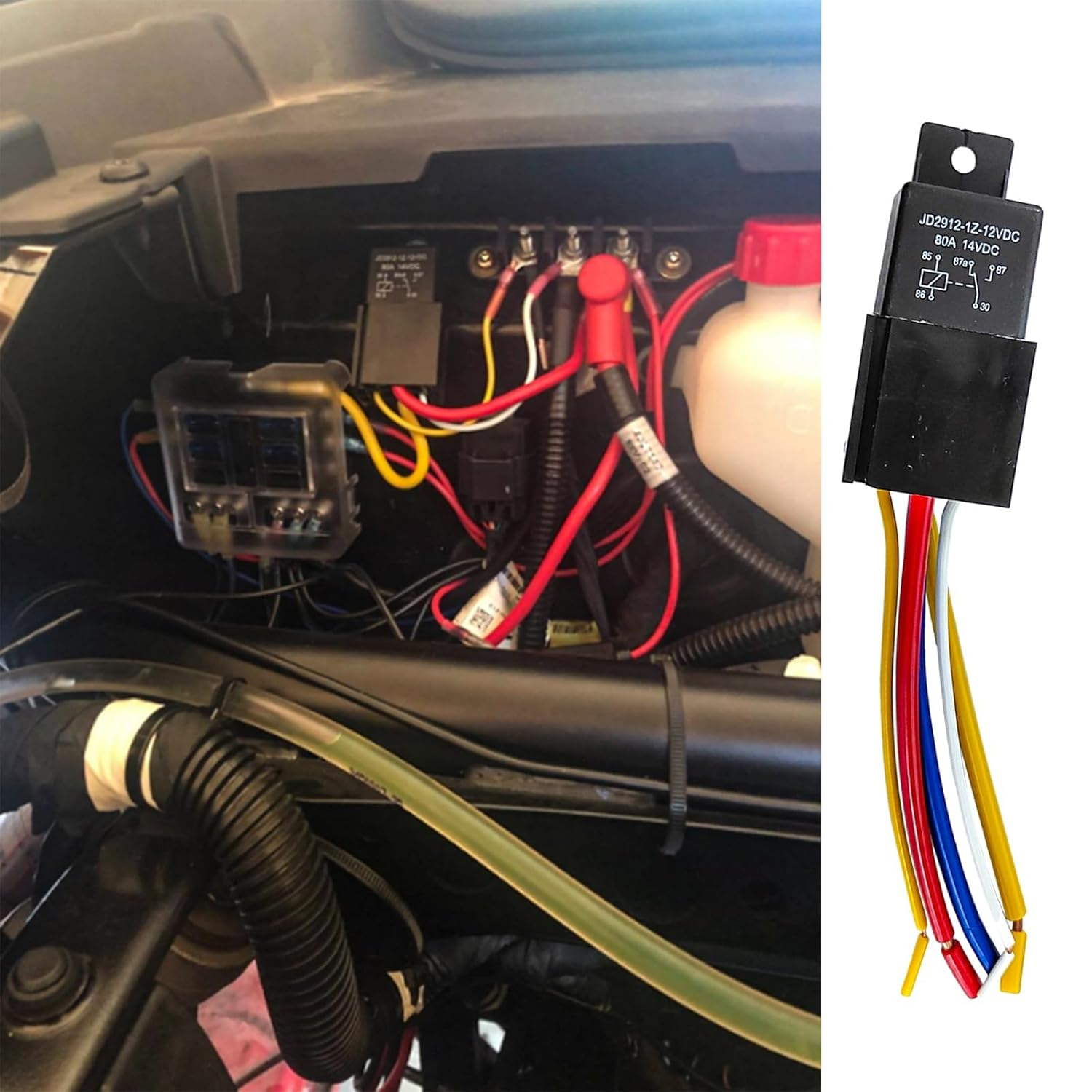

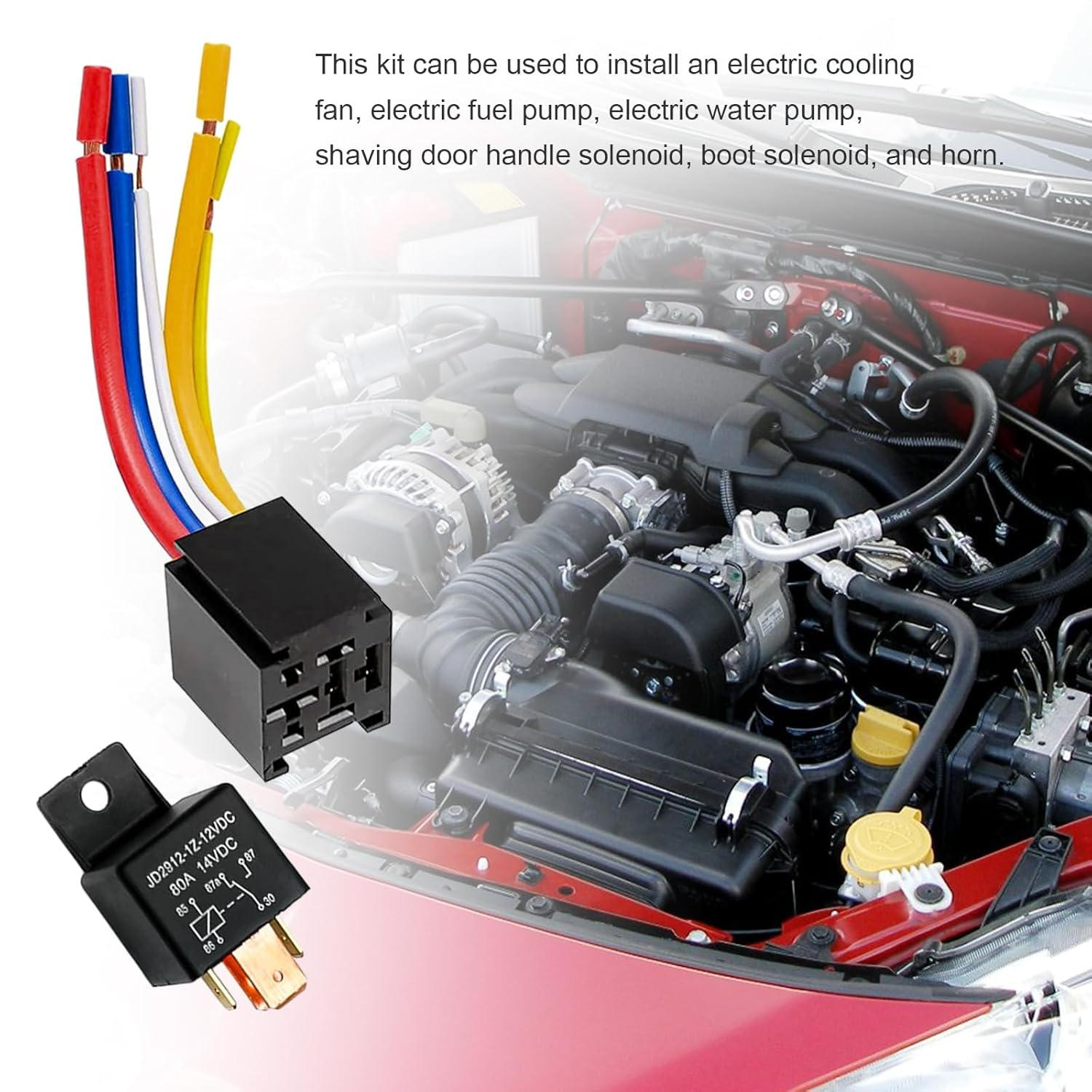

  • 【Wide Application】Relay's plug measures 1.38×2.4 inches, and its harness is 4.57 inches in length. This size is universal, and can be compatible with most vehicles such as cars, trucks, and SUVs, etc. It can be used to install electric cooling fans, electric fuel pumps, electric water pumps, shaved door handles solenoids, trunk solenoids, and horns.

【Specification】
1. Material: Metal, Plastic
2. Quantity: 1/ 2/ 4 PCS
3. Color: Black
4. Plug Size: 1.38×2.4 inches
5. Harness Length: 4.57 inches
6. Weight: 0.21/ 0.41/ 0.79 lb
7. Model: JD2912-1Z-12VDC
8. Rated Current: 80A
9. Voltage: 12V
10. Coil Power: 1.8W
【Car relay pin numbers】
1. 85 and 86 are coil pins, which can be closed or disconnected by applying a control voltage (e.g. 12VDC).
2. 87 is a normally open pin. 87a is a normally closed pin. And 30 is a yoke pin.
【Relay tips】
1. In the model, A (a) represents normally open.
2. B represents normally closed. And none represents conversion.
【Product advantages】
1. Plug and play is easy to install.
2. Thickened metal terminals and contacts ensure excellent effect and provide effective protection.
3. 5 pin relay socket is lightweight and portable, allowing you to put it in your tool box when you need to use it for outdoor activities, without taking space or causing burden to you.

  • Item Weight: 100 g
  • Item Model Number: QCJD55
  • Package Dimensions: 16 x 6.3 x 5.2 cm; 100 Grams
  • Manufacturer: Augeny
