Wireless Control Switch DC 12V 24V 36V Motor Forward and Reverse Switch, 2 Channel 30A Relay Remote Control Learning Switch Use for Garage Doors, Window, Motor & More

Wireless Control Switch DC 12V 24V 36V Motor Forward and Reverse Switch, 2 Channel 30A Relay Remote Control Learning Switch Use for Garage Doors, Window, Motor & More

A$173.10
Availability:
  • This item is currently not available
Product details
  • 【Easy to use】: We have made transmitter and receiver working together and test it before ship it, when you get it don't need to do anything, just install it.(The remote switch can be controlled remotely or manually)
  • 【Output mode】: Contact output and voltage output. There are three working modes: Momentary, Latched, Toggle. You can change the working mode by toggle switch yourself, simple and convenient.
  • 【 Wide Application】: It is mainly used in 12V--36V. include Anti-Theft Alarms, Security Systems Roller Lind Door, Car, Gate Barriers, Lights, Household Appliances, Pump, Lights Ceiling and Electrical Equipment , Water Pump, Lamp, Security Systems Garage Door, industrial control and security industry and Various types of electrical equipment other fields.
  • 【SIGNAL 】: The RF remote control adopts RF technology, stable signal.Signal of the wireless RF switch can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance, Max range is up to 650 ft (200meters) with no obstacle.
  • 【Max Load】: 30A Relay, Resistive load≤25A, Inductive load≤20A. Especially suitable for high-power loads.

Working Voltage: DC12V-36V
Max Load: 30A Relay, Resistive load≤25A, Inductive load≤20A
Channel: 2CH
Working Frequency: 433MHZ
Receiver sensitivity: -110Db
Working temperature: -40'C - +85'C
Output way : Momentary. Toggle .Latched Adjusted

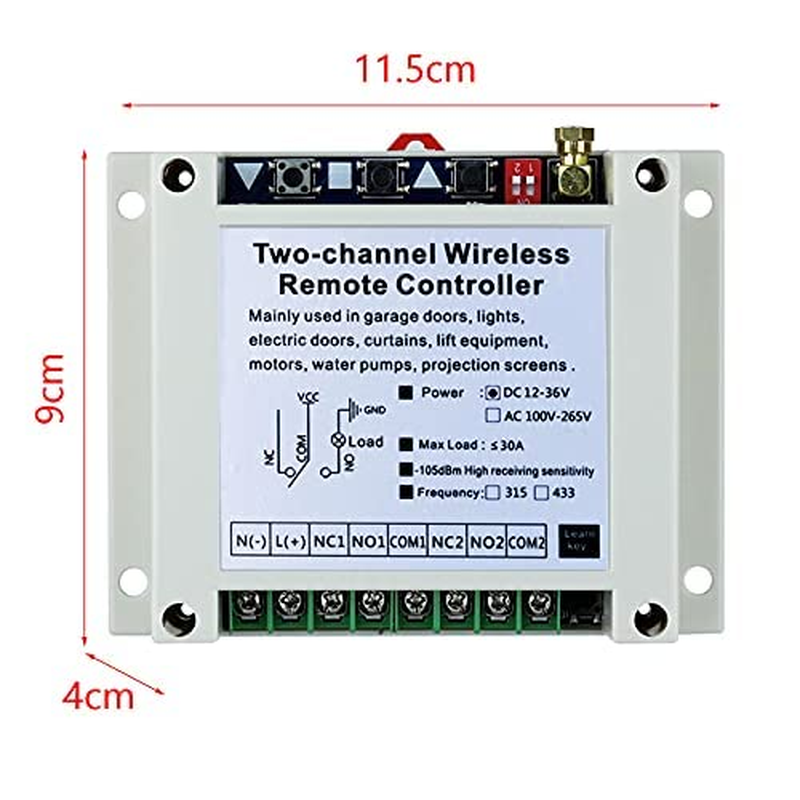

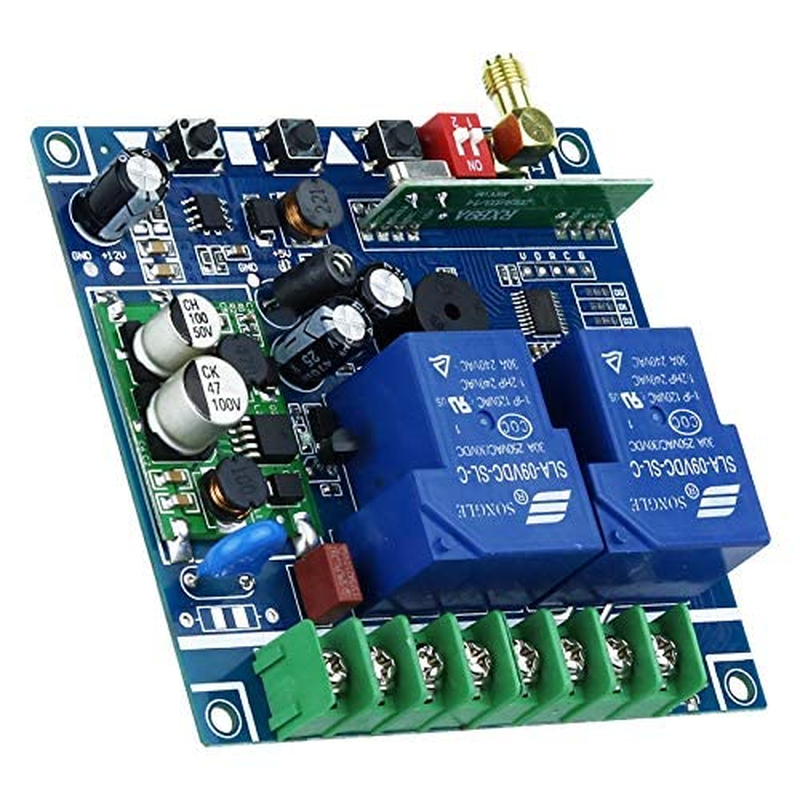

PCB Size: 92*65*32MM
Working mode switching (switching working mode by toggle switch)
Momentary--1 and 2 default Relay: Press and hold -> On; Release -> Off.
Toggle -- 2 to ON position Relay: Press -> On; Press same button again -> Off.
Latched--1 position to ON Relay: Press -> On; Press other button -> Off.
Learning Code: Input AC12V-36V for the Receiver , Press the Learning Button until the Led indicator ON. Then press transmitter, the Led indicator flash for 3 times, it mean learning successfully.
Clearing Code: press the Learning Button and hold, the LED indicator flash 5times and OFF, it means clearing is successfully.
Package Includes
2 x Transmitters
1 x Receiver
1 x User Manual

  • Item Weight: 310 g
  • Package Dimensions: 5 x 5 x 5 cm; 310 Grams
  • Manufacturer reference: 12V remote
  • Manufacturer: MURANCLOUD
