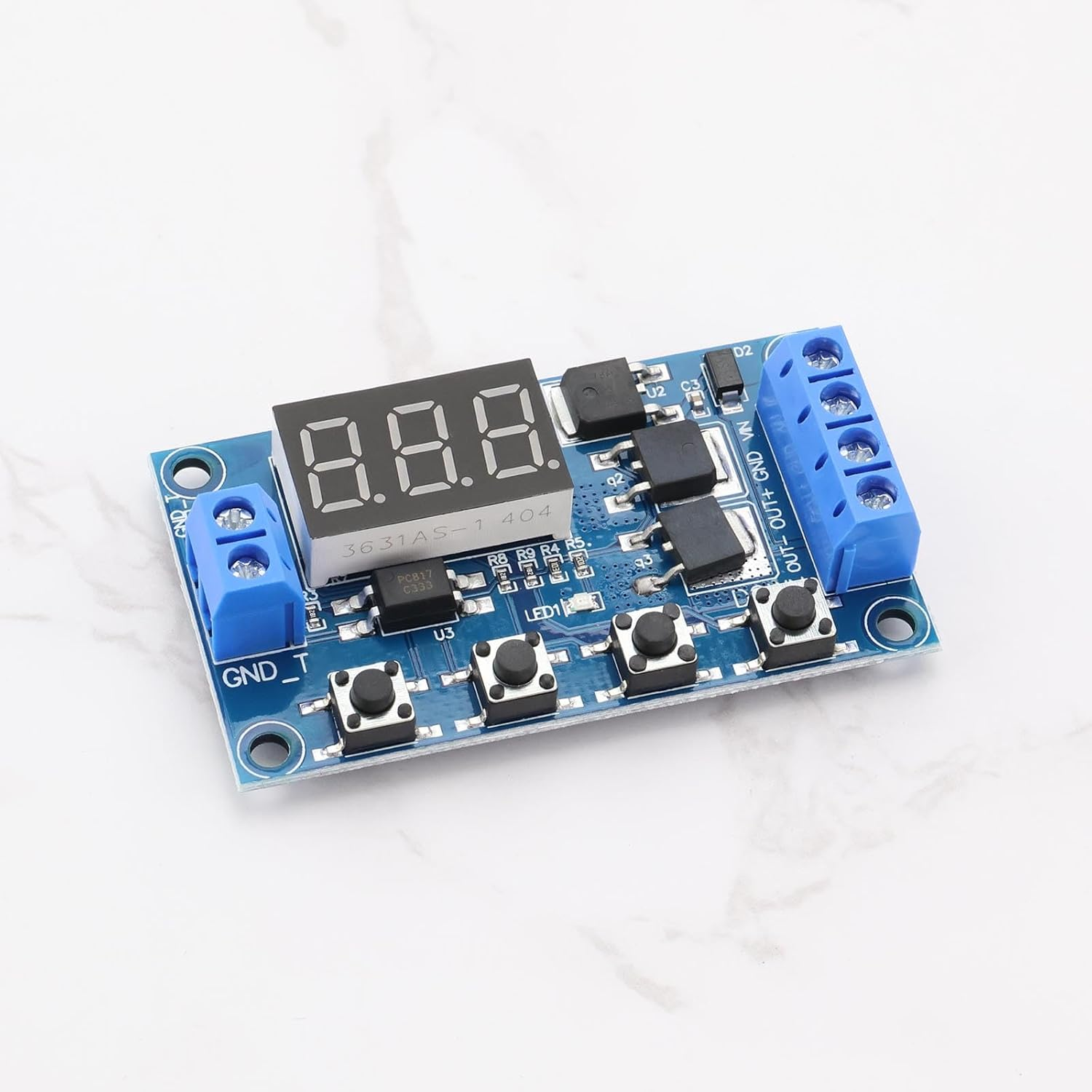

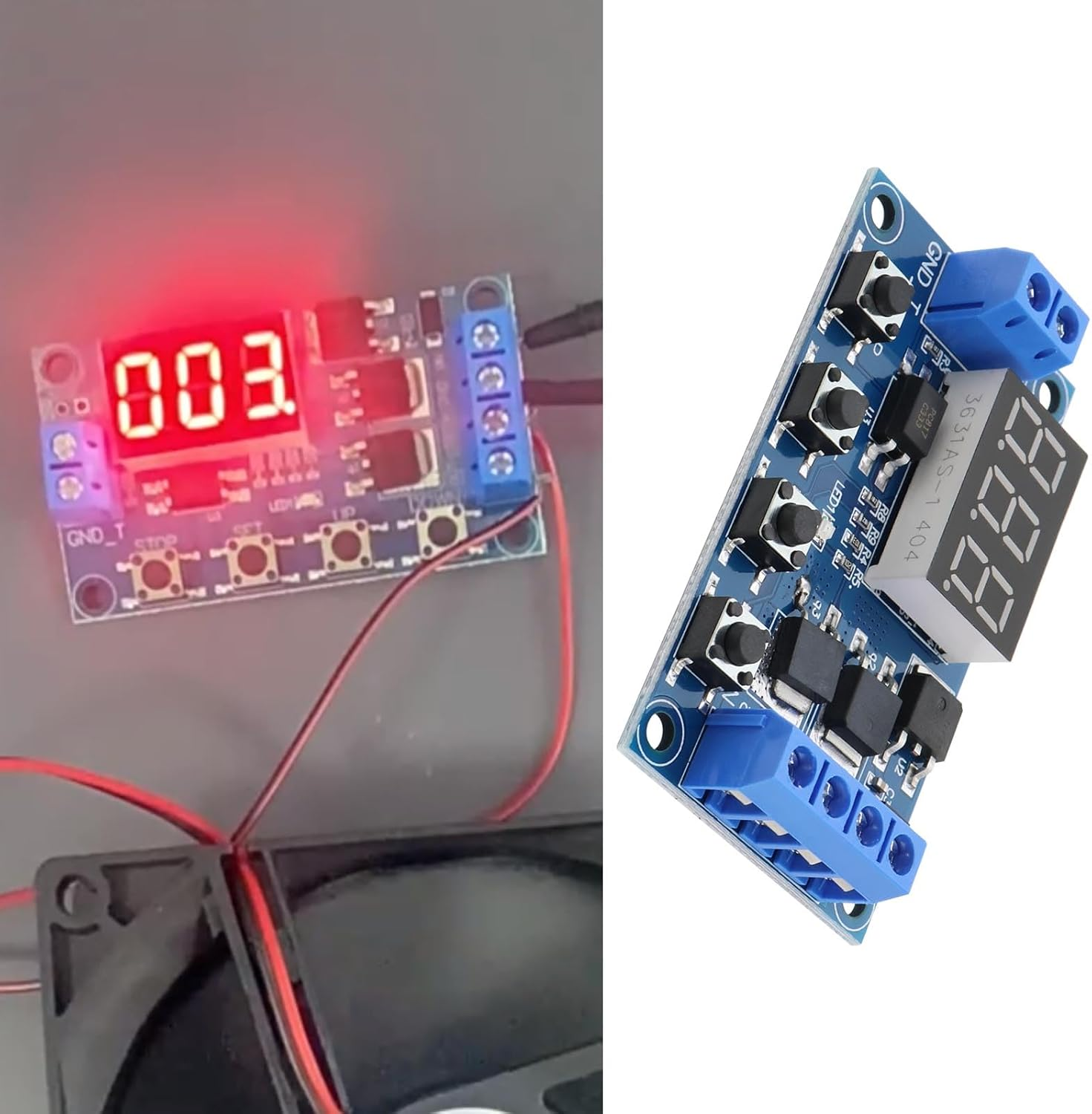

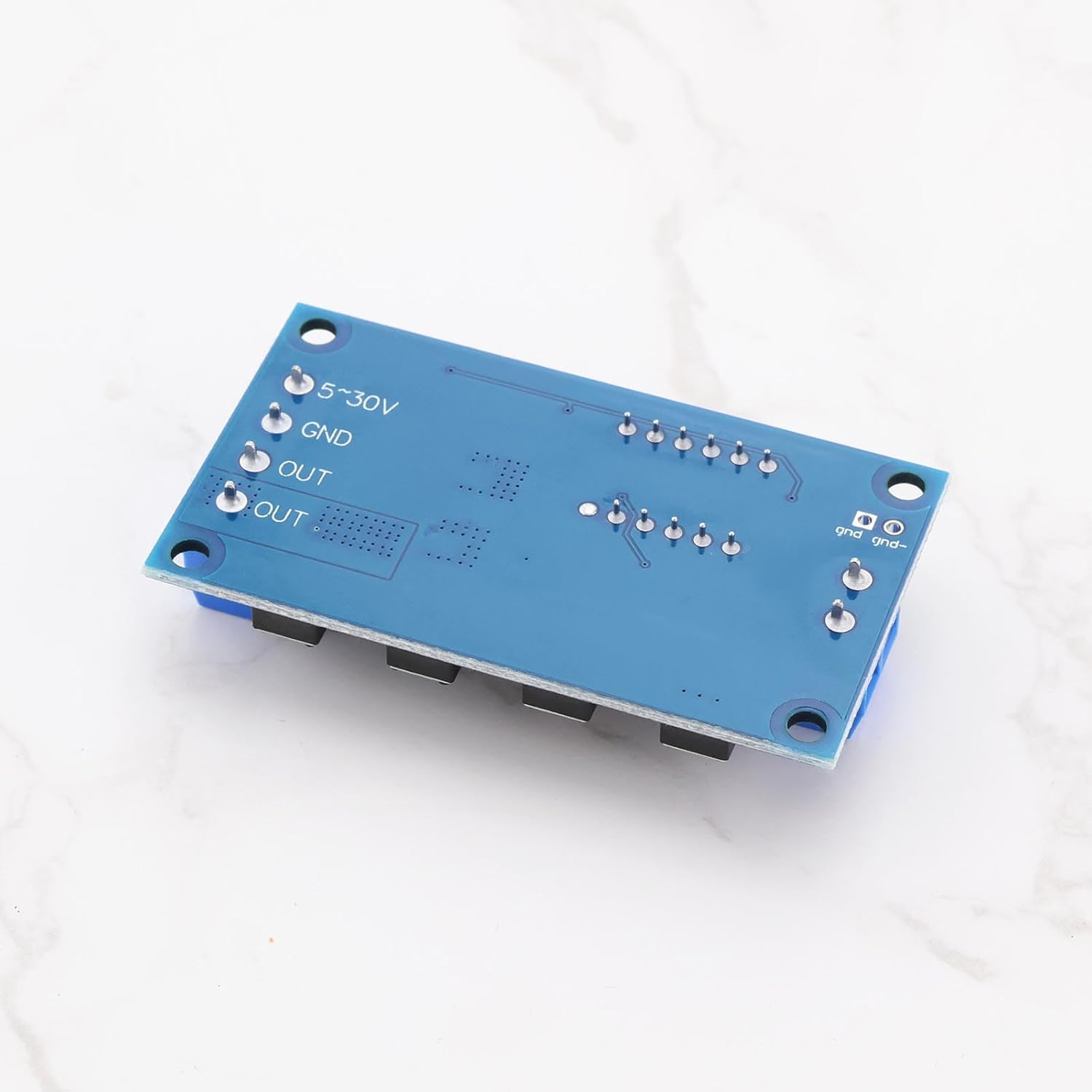

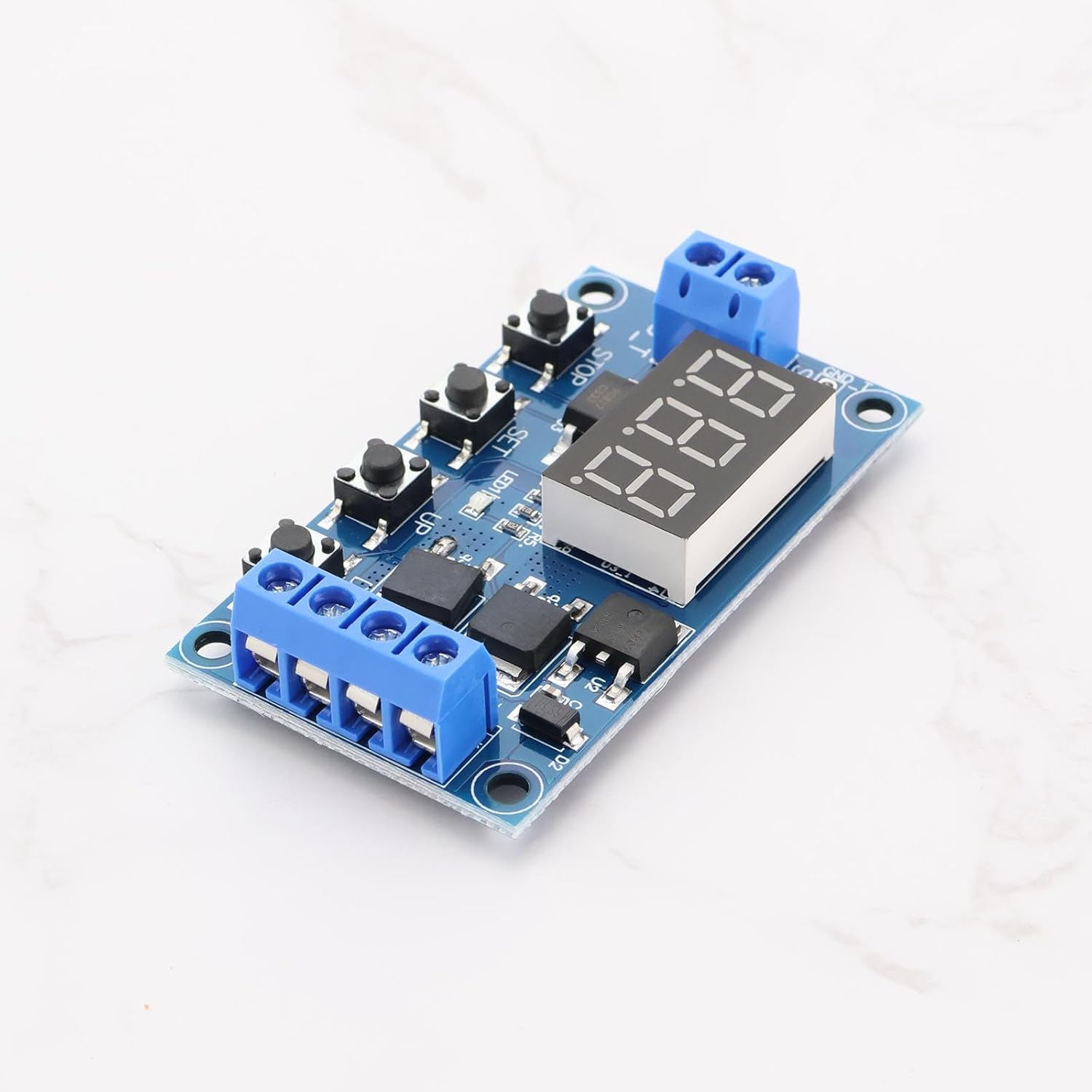

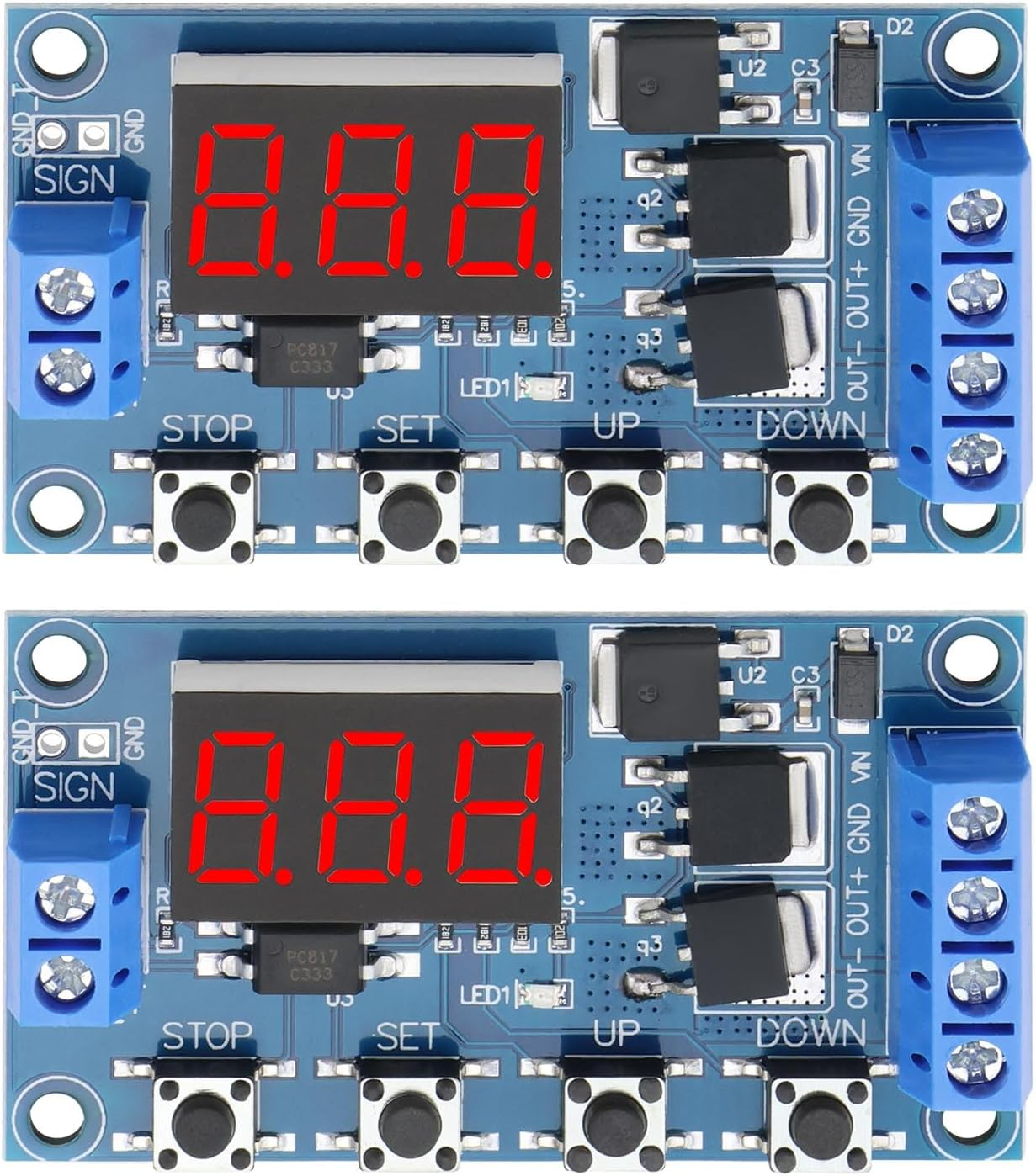

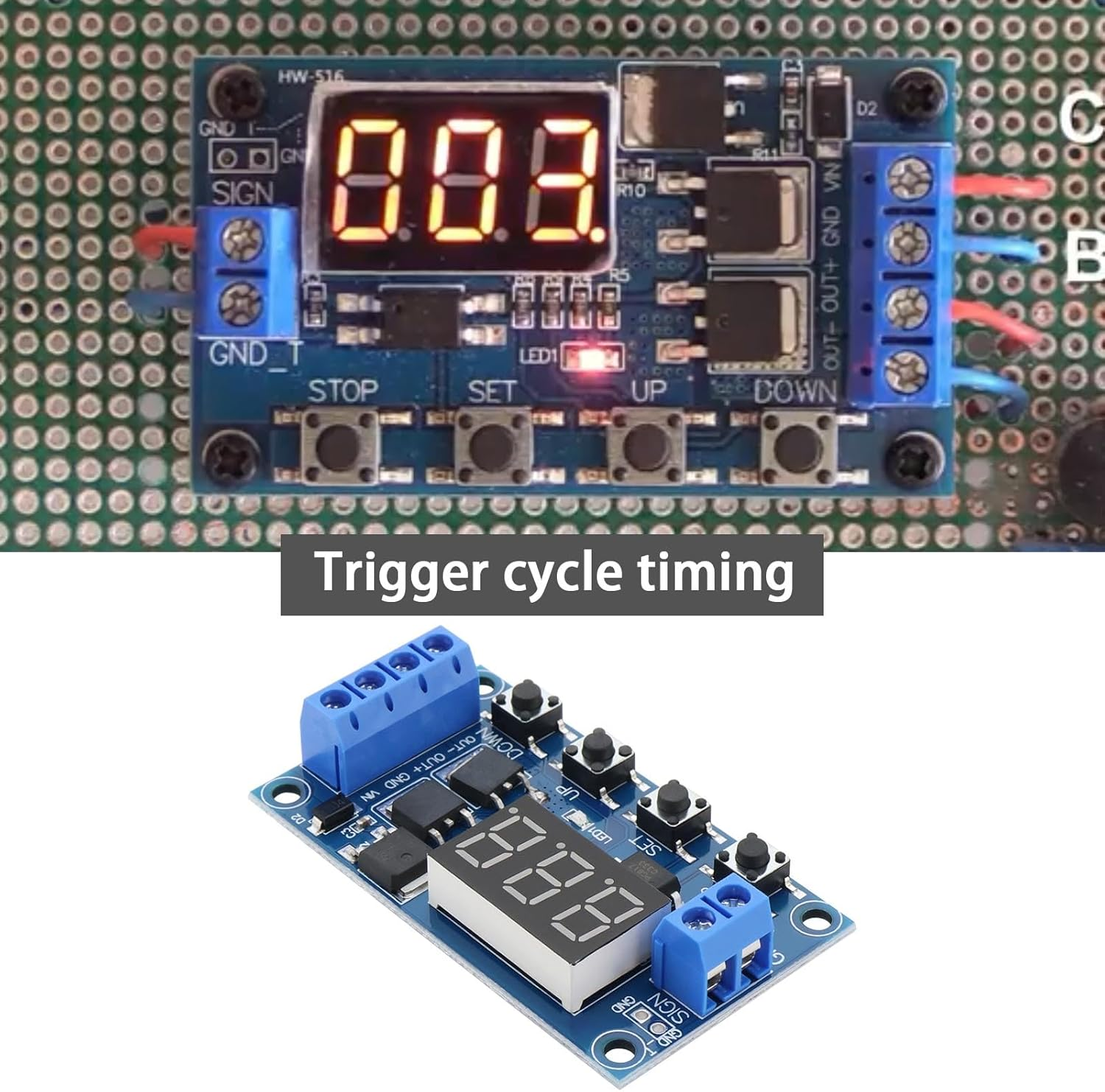

2Pcs DC5-36V Multi Function Delay Relay Module Dual MOS Trigger Digital LED Relay Board Cycle Delay Switch Timer Delay Controlling DC Motors Lights

Click to see full view

A$20.05

Availability:

Quantity

Product details

Trigger signal source: High-level trigger (DC 3.0V-24V). The signal ground is not shared with the system ground, and the system's anti-interference ability (it can also be shorted to share the ground by itself). This design ensures stable and reliable signal transmission, while minimizing the impact of external interference on the system.
Signal holding function: If there is a trigger signal, the timing is reset and the relay remains conducting; when the signal disappears, the relay is disconnected after the timing OP; during the timing, if there is another signal, the timing is reset.
Output Capacity: DC 5V~36V. At room temperature, the continuous current is 15A, and the power is 400W. With enhanced heat dissipation, the current can reach up to 30A.
Safe and reliable: The emergency stop function ("STOP" button) and reverse input protection ensure safe usage. It provides a reliable safeguard in critical situations, allowing for quick response and control.
Excellent anti-jamming ability: Equipped with optical coupler isolation to enhance the anti-interference ability, industrial-grade circuit board, with the setting parameters memorized after power-off.

Product Description

Working voltage:DC 5V~36V

Static current:15mA

Operating temperature:-40~85℃

2x Timer Switch Module

A$20.05
