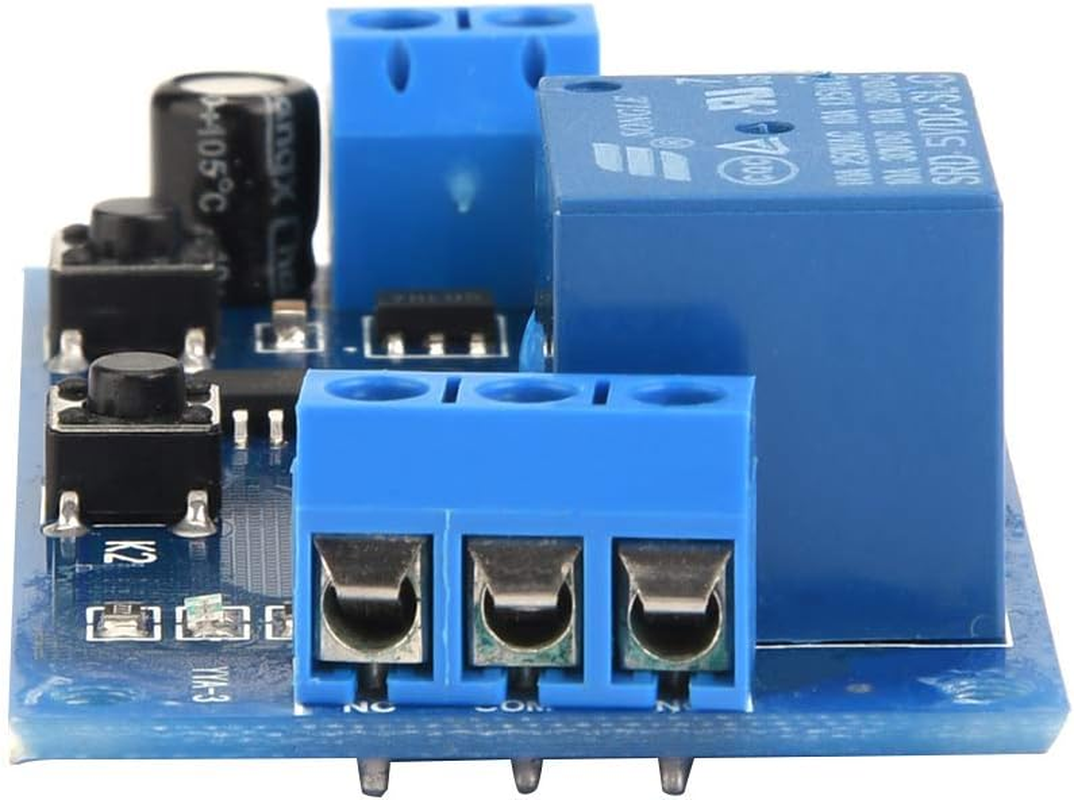

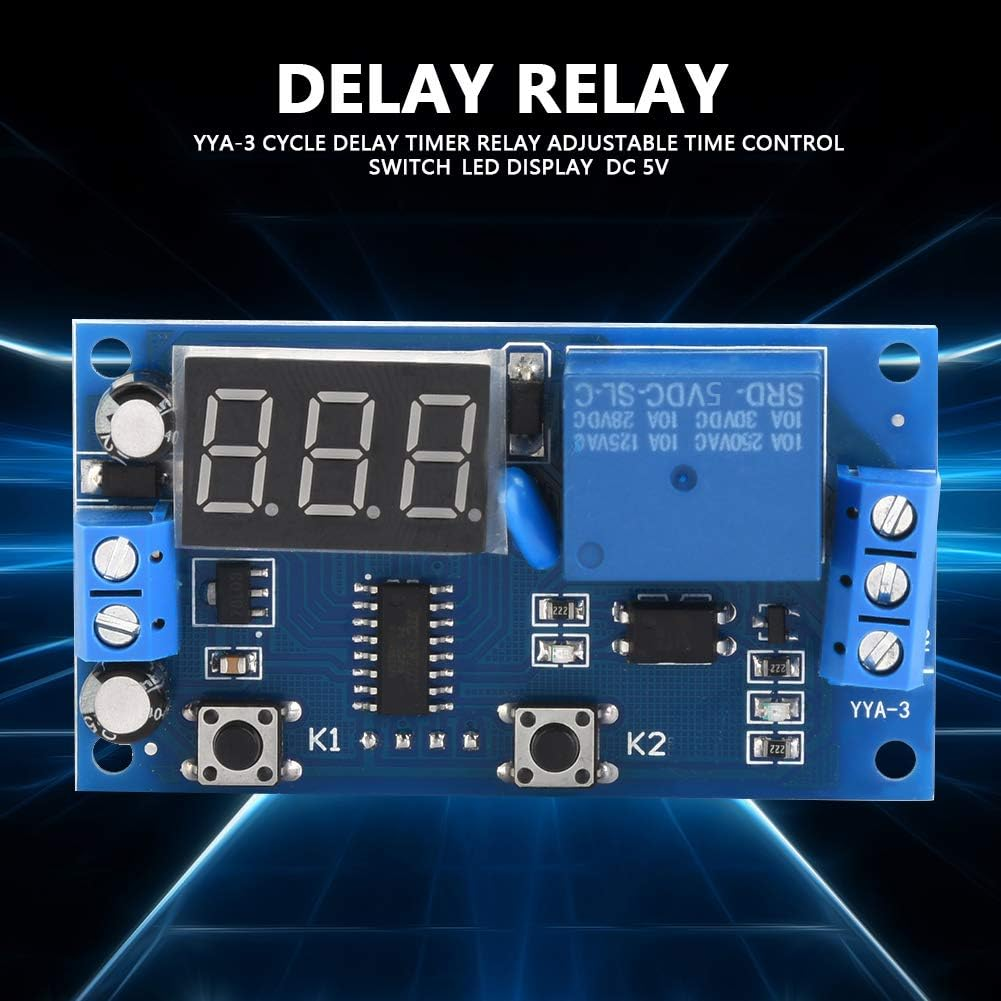

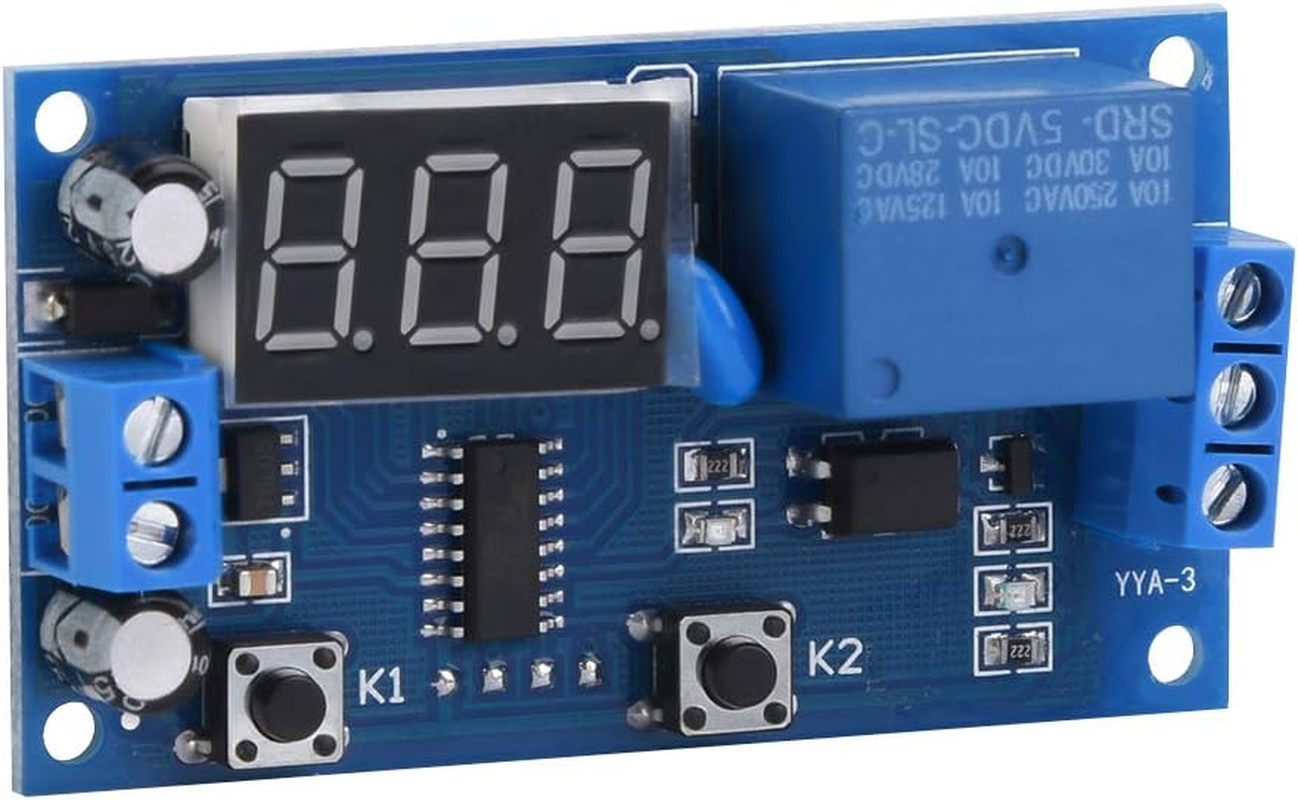

Timer Relay,Dc 0V-30V/AC220V 10A Time Delay Relay 0Sec to 999Min Delay Controller Board，Digital LED Display/Trigger Delay Switching On/Off Cycle Delay Timer

Timer Relay,Dc 0V-30V/AC220V 10A Time Delay Relay 0Sec to 999Min Delay Controller Board，Digital LED Display/Trigger Delay Switching On/Off Cycle Delay Timer

A$173.10
Availability:
  • This item is currently not available
Product details
  • This delay relay switches on for some time after power-on, then switches off for some time, and cycles the process.
  • Output adopts optical coupler isolation to strengthen the anti-interfere ability.

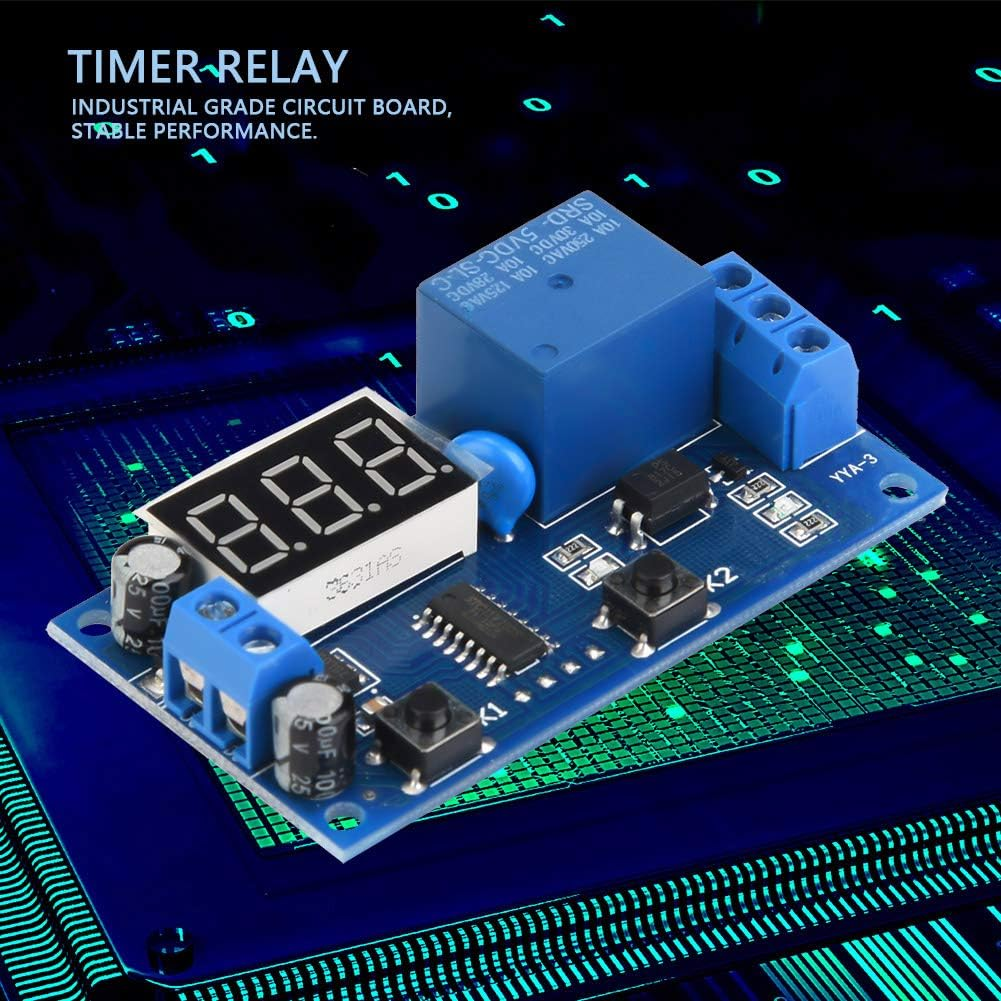

  • Industrial grade circuit board, stable performance.
  • With power-off memory function to save the setting parameters.
  • This relay has long service life, widely used to control the on-off of solenoid valve, , motor, etc.


Specification:

Model:

Timing range: 0s-999min adjustable

Supply voltage: DC 5V
Output: DC 5-30V/AC 10A

Static current: 20mA

Working current: 50mA

Life: >100000 times

Working temperature: -40~85℃

Weight: Approx. 25g

Time setting:

After power-on, start the countdown.

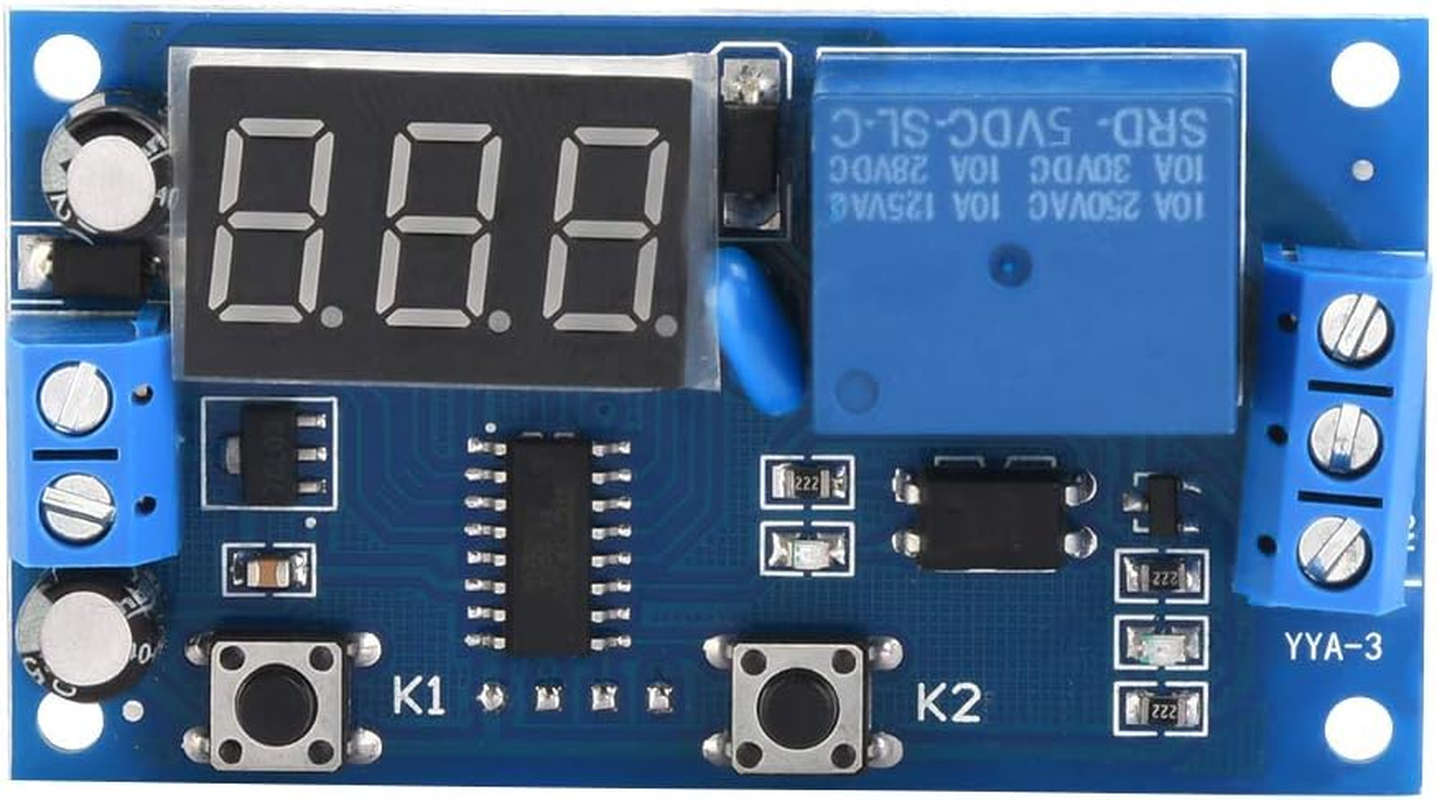

The first three times to press k1 can set the time to switch on, and the last three times is can set the time to switch off. Press K1 to change the position of time setting, press K2 to change digit. After the digital tubes do not flash, press K2 to change the position of decimal point. Timing range varies according the position of decimal point:

XXX. - timing range: 0 ~ 999 minutes

XX.X - timing range: 0 - 99.9 seconds

XXX - timing range: 0 ~ 999 seconds

After you finish the time setting, you can press and hold K2 to turn on/off the digital tubes.

Package List:

1 * Cycle Delay Relay

  • Item Model Number: Jectsef59nkb38gh
  • Part Number: Jectsef59nkb38gh
  • Package Dimensions: 7 x 4 x 2 cm
  • Manufacturer: Jectse
