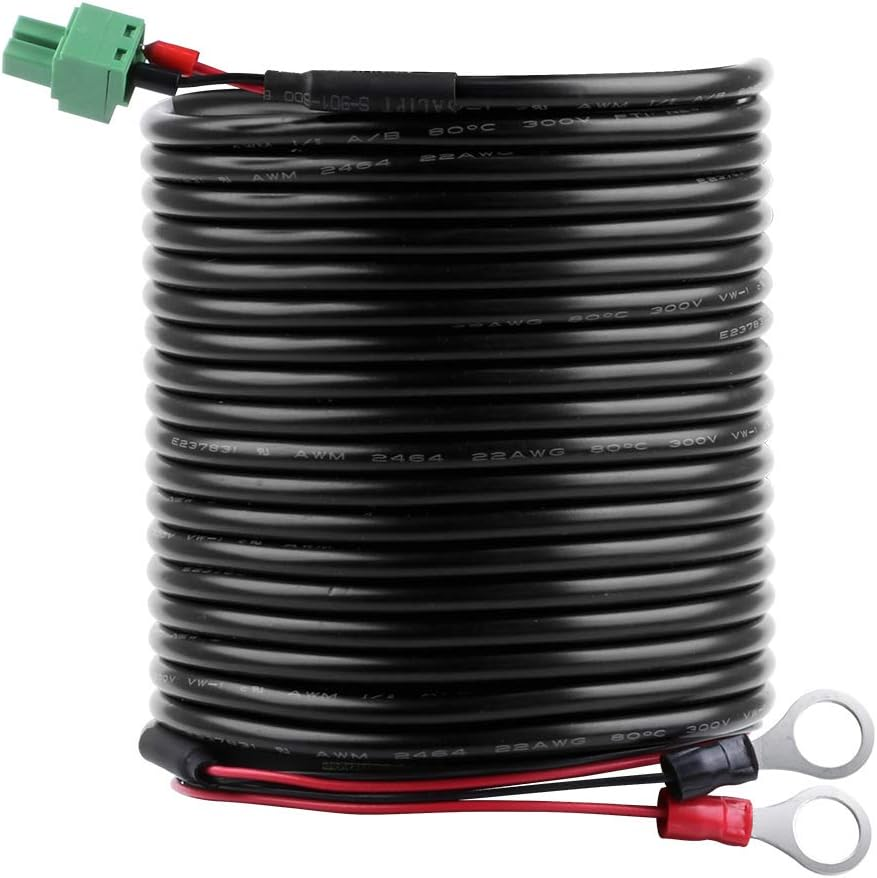

More Accurate Battery Voltage

This Battery Voltage Sensor provides a more accurate battery charging voltage to the charge controller. It allows the controller to adjust the charging stage more precisely, thereby improving overall performance and longevity of the battery.

Compatible with Renogy Controllers and Chargers

Works with Rover 60A/100A, Rover Boost 10A, Rover Elite 20A/40A, Adventurer Li 30A charge controllers as well as the 30A/50A DC-DC MPPT battery chargers.

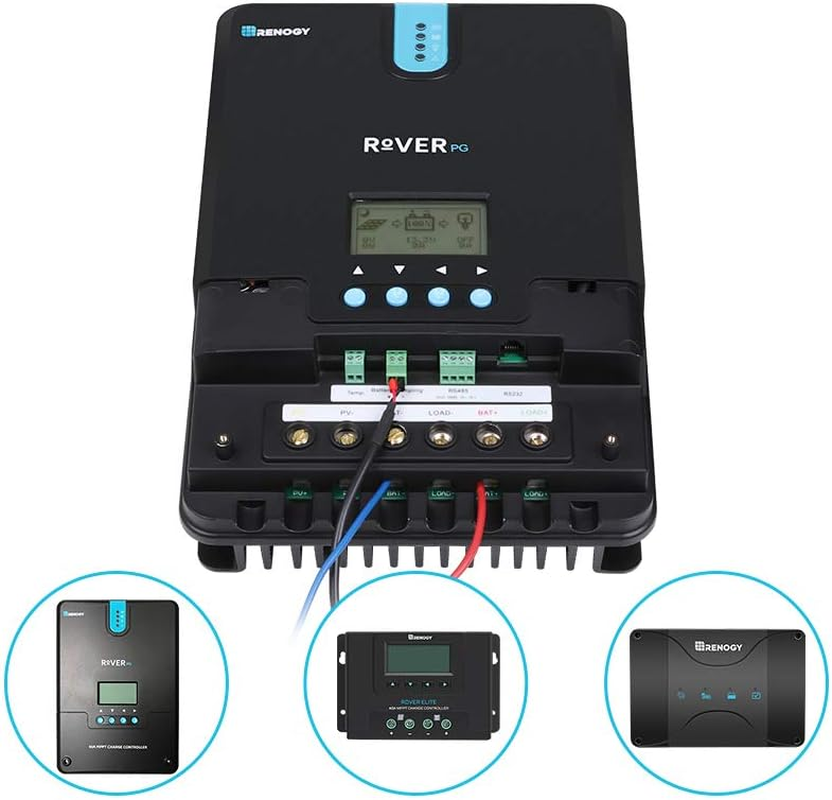

- Rover 60A/100A: "Battery Sampling" port

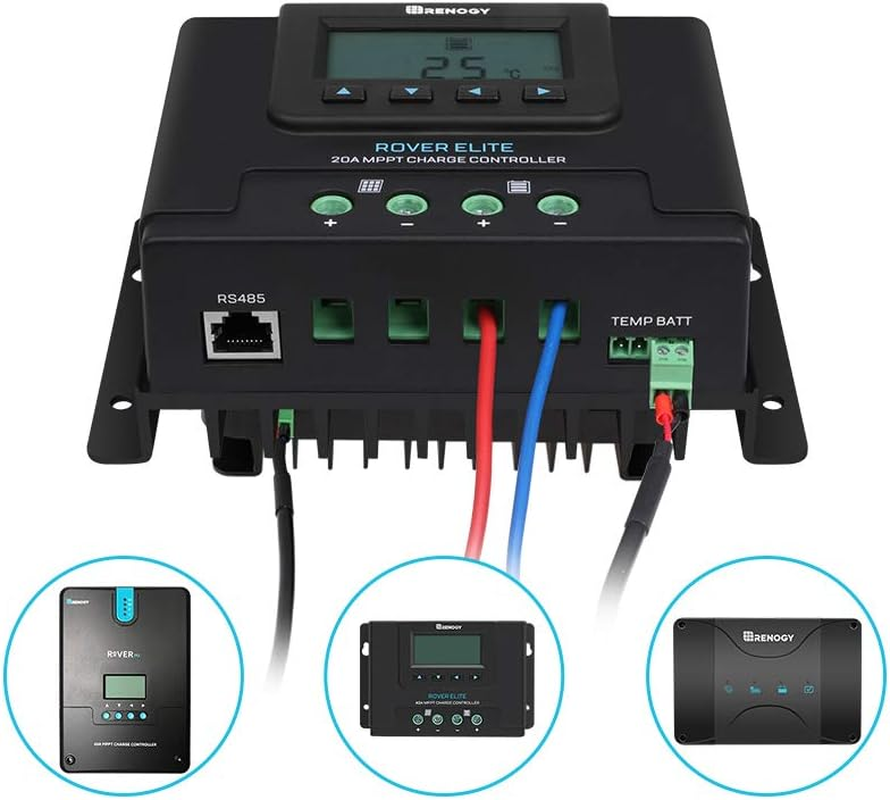

- Rover Boost 10A and Rover Elite 20A/40A: "BATT" port

- Adventurer Li 30A: "Batt Remote" port

- 30A/50A DC-DC Charger w/ MPPT: "BVS" port

Works with Most Batteries

- Compatible with 12V, 24V, 36V, and 48V battery banks as well as lead-acid (Flooded, Sealed, and Gel) and lithium iron phosphate batteries.

- Works with all Renogy Lithium 12V/48V, AGM 12V, and GEL 12V batteries.

Step 1: Assemble the Green Terminal

1) Position the green terminal block as shown in the picture.

2) Loosen the terminal block screws on top by rotating it counterclockwise.

3) Connect the positive pin - Left, using the Red Wire. Tighten the screws by rotating clockwise.

4) Connect the negative pin - Right, using the Black Wire. Tighten the screws.

Step 2: Connect to Battery Terminals

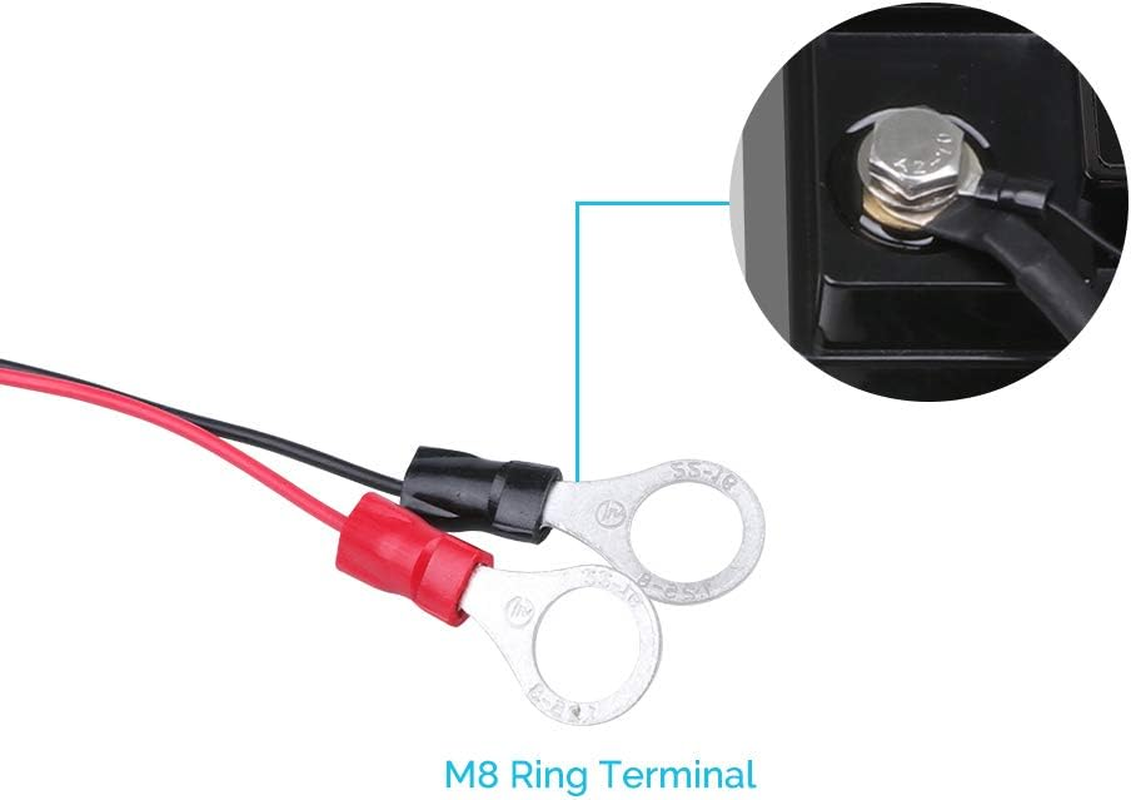

Connect two M8 ring terminals to the battery. Red for the positive end, black for the negative.

Step 3: Connect to the Controller/Charger Port

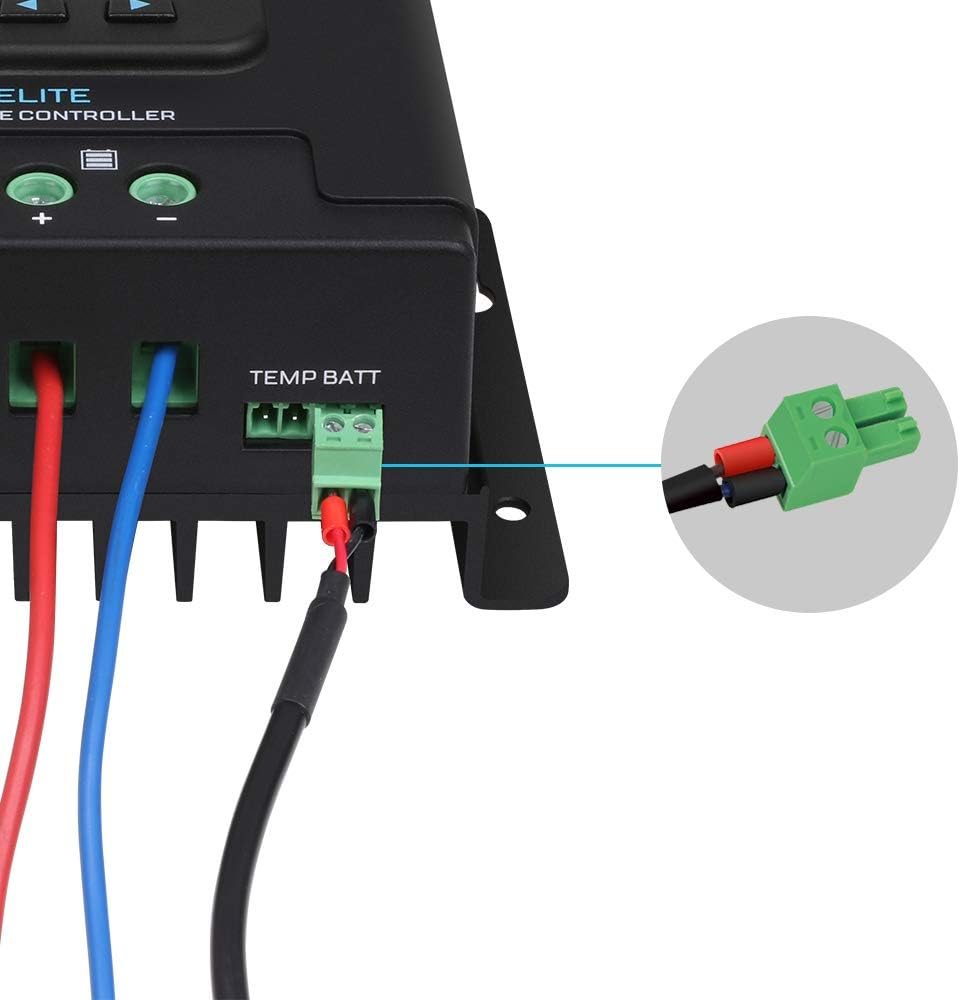

- Simply plug the green terminal block into the compatible battery voltage sensor port of your charge controller or battery charger.

- Verify successful connection by making sure that the green connector is plugged firmly in the port and using a multi-meter to read the respective battery terminals on the screws.
