Product Description

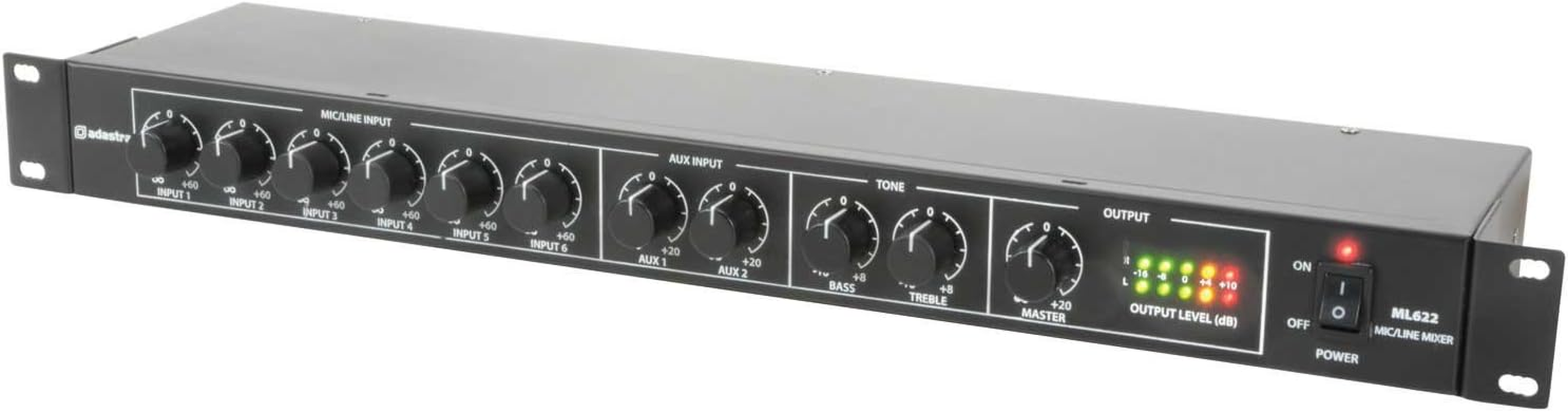

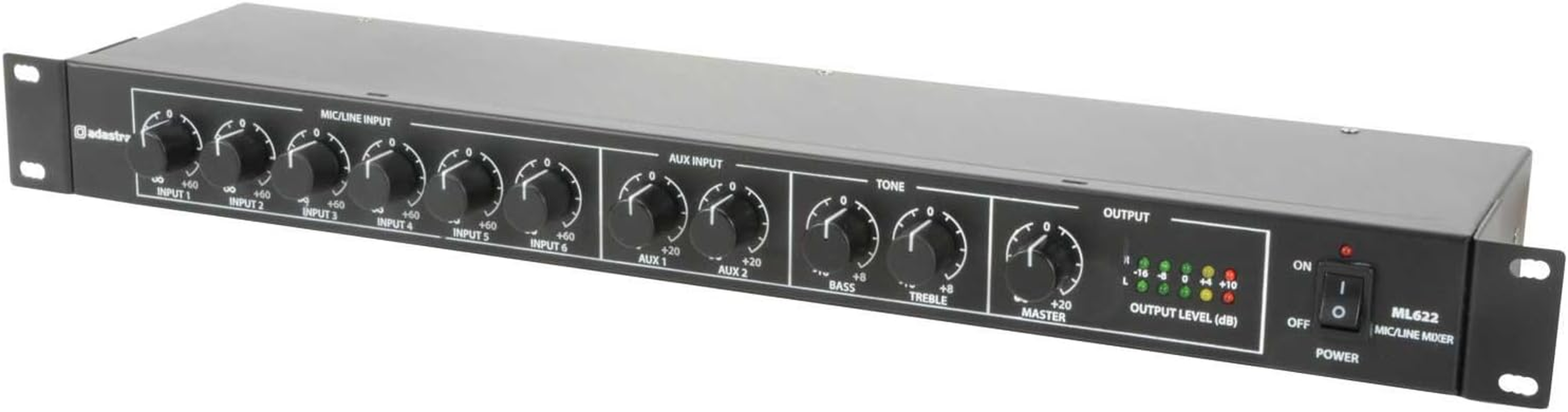

1U Mic/Line Rack Mixer
Rack-mountable 1U mixer with 6 mic/line inputs and 2 auxiliary inputs. Each mic/line channel has switchable phantom power and input level. Output connections are stereo XLR, mono jack or REC output on RCA with master bass and treble tone controls. Designed as a master or expansion mixer for installed sound systems and conferences.
PRODUCT FEATURES:
★ 6 switchable mic or line inputs
★ 2 stereo aux inputs
★ Individually switchable phantom power
★ 24Vdc power option
SPECIFICATION:
★ Power supply 100-240Vac, 50/60Hz (IEC) or 24Vdc (terminals)
★ Fuse T1AL 250V (mains) or F500mA (24Vdc)
★ Phantom power +20Vdc (switchable)
★ Inputs : mic/line 6 x balanced XLR
★ Inputs : aux 2 x L+R RCA
★ Outputs L+R XLR, mono 6.3mm jack, L+R RCA (REC)
★ Controls 6 x Mic/Line level, 2 x Aux level, Treble, Bass, Master
★ Input impedance 3.3k Ohms (mic/line), 10k Ohms (aux)
★ Frequency response : mic 20Hz - 18kHz
★ Frequency response : line 14Hz - 20kHz
★ Frequency response : aux 10Hz - 23kHz
★ Input sensitivity : mic -45dBV
★ Input sensitivity : aux/line -10dBV
★ Signal to noise ratio : mic 55dB
★ Signal to noise ratio : aux/line 60dB
★ THD 0.05%
★ Dimensions 482 x 130 x 44mm
★ Weight 1.43kg

Set Contains:

1 x Rack Mixer
