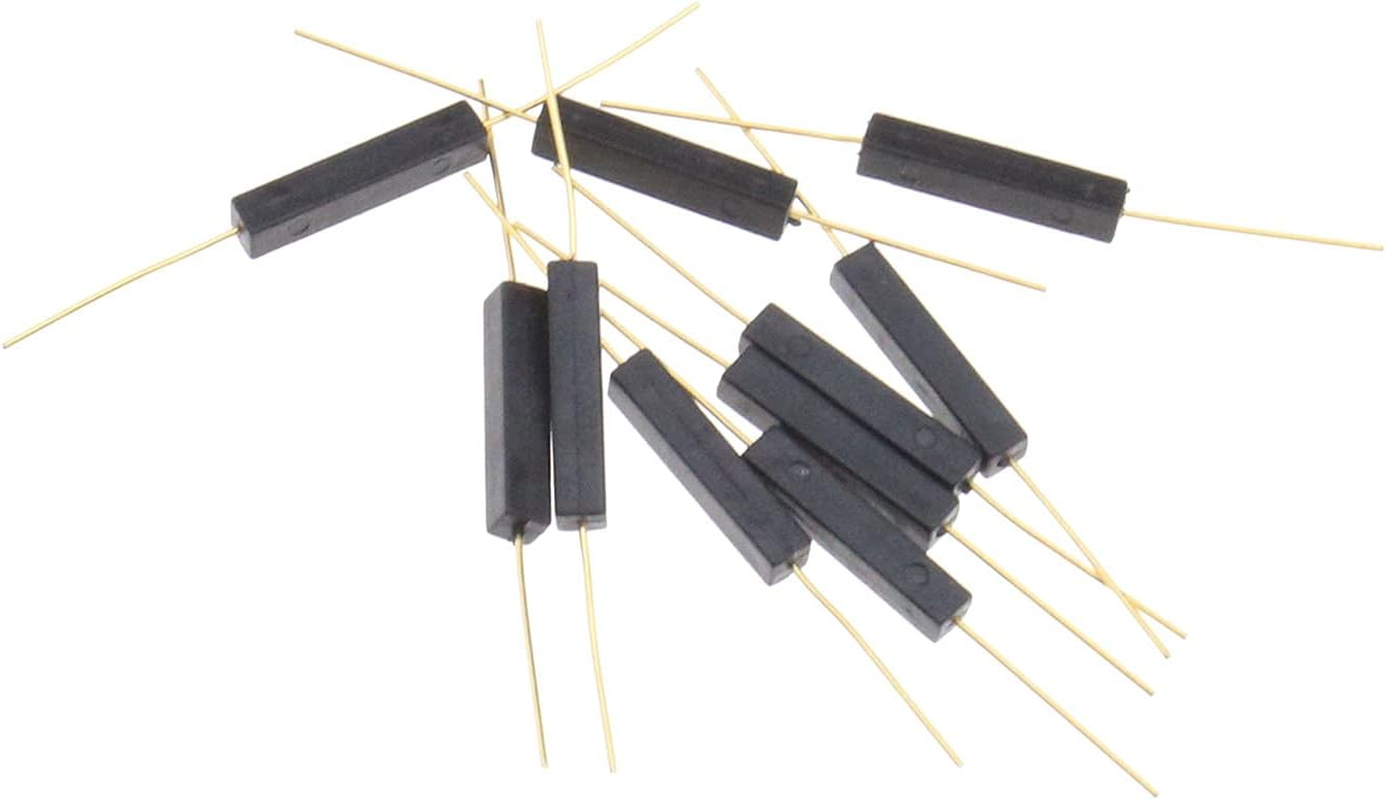

Emagtech 20Pcs Plastic Reed Switch Reed Contact Normally Open Magnetic Induction Switch

Emagtech 20Pcs Plastic Reed Switch Reed Contact Normally Open Magnetic Induction Switch

A$32.00
Availability:
  • In Stock
Product details

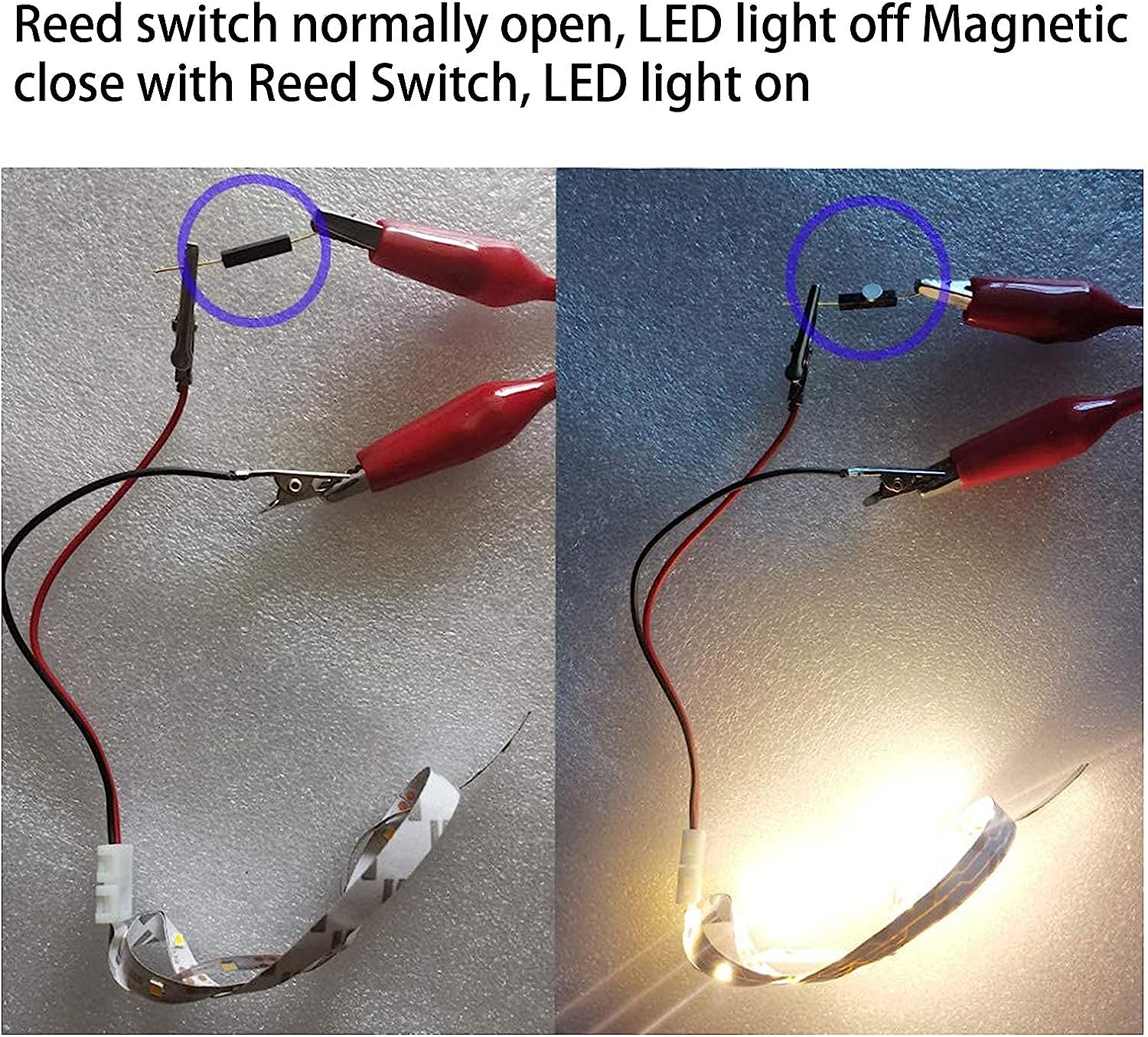

  • Normally open magnetic induction switch. When the magnet is near, the reed closed and the released signal; When the magnet leaves, the reed opens and the disconnect signal.
  • Used for treadmill and wall breaker.

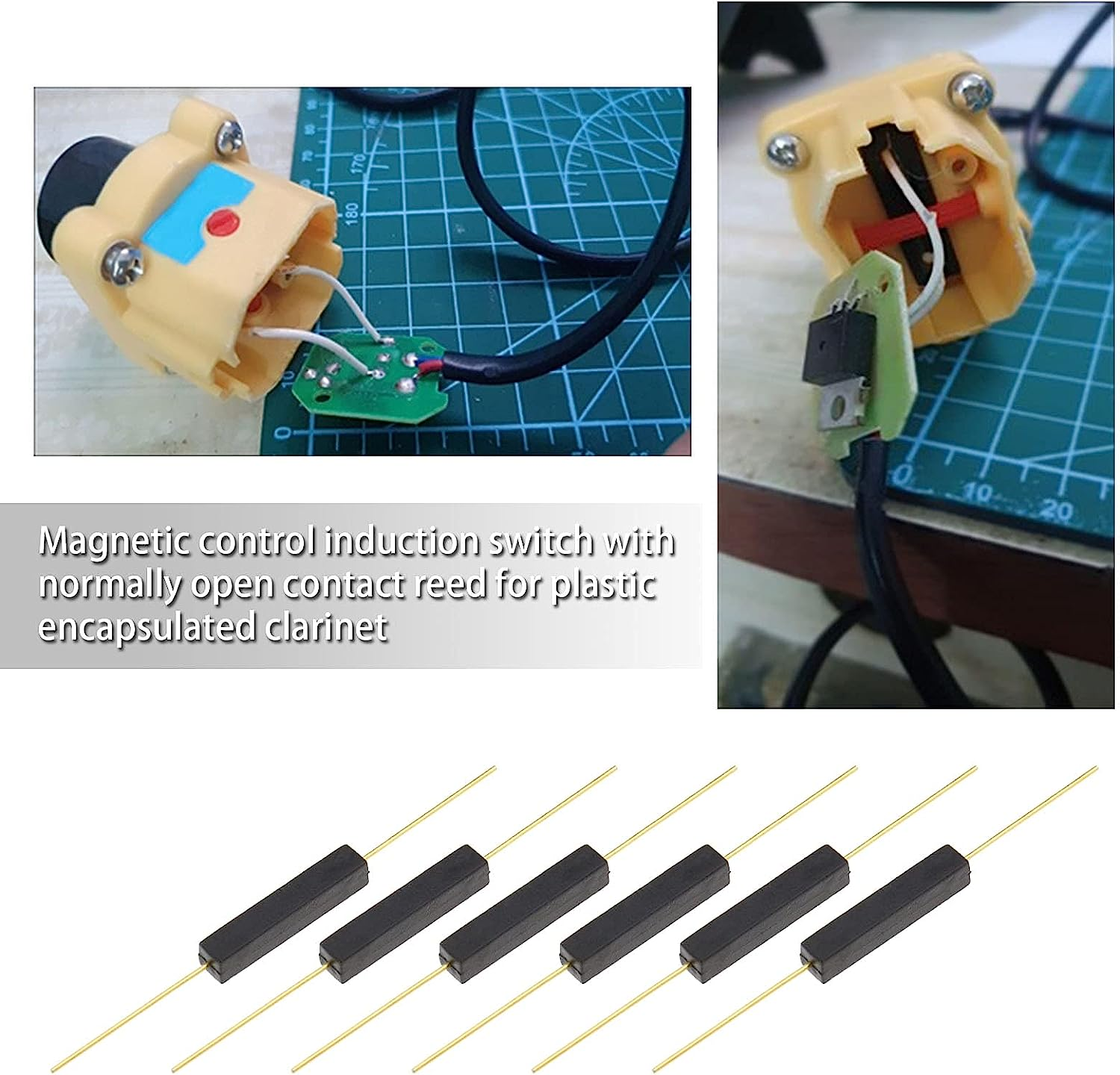

  • Reed switch pipe can be used as a sensor, counter, limit, and door magnetic, magnetic window in the security system.
  • Maximum switching voltage 100VDC,Working temperature : -20 degrees to 80 degrees.
  • Max. Switch Current : 0.5A; Maxima charging current : 1.0A.

Product Description

Item Specifications

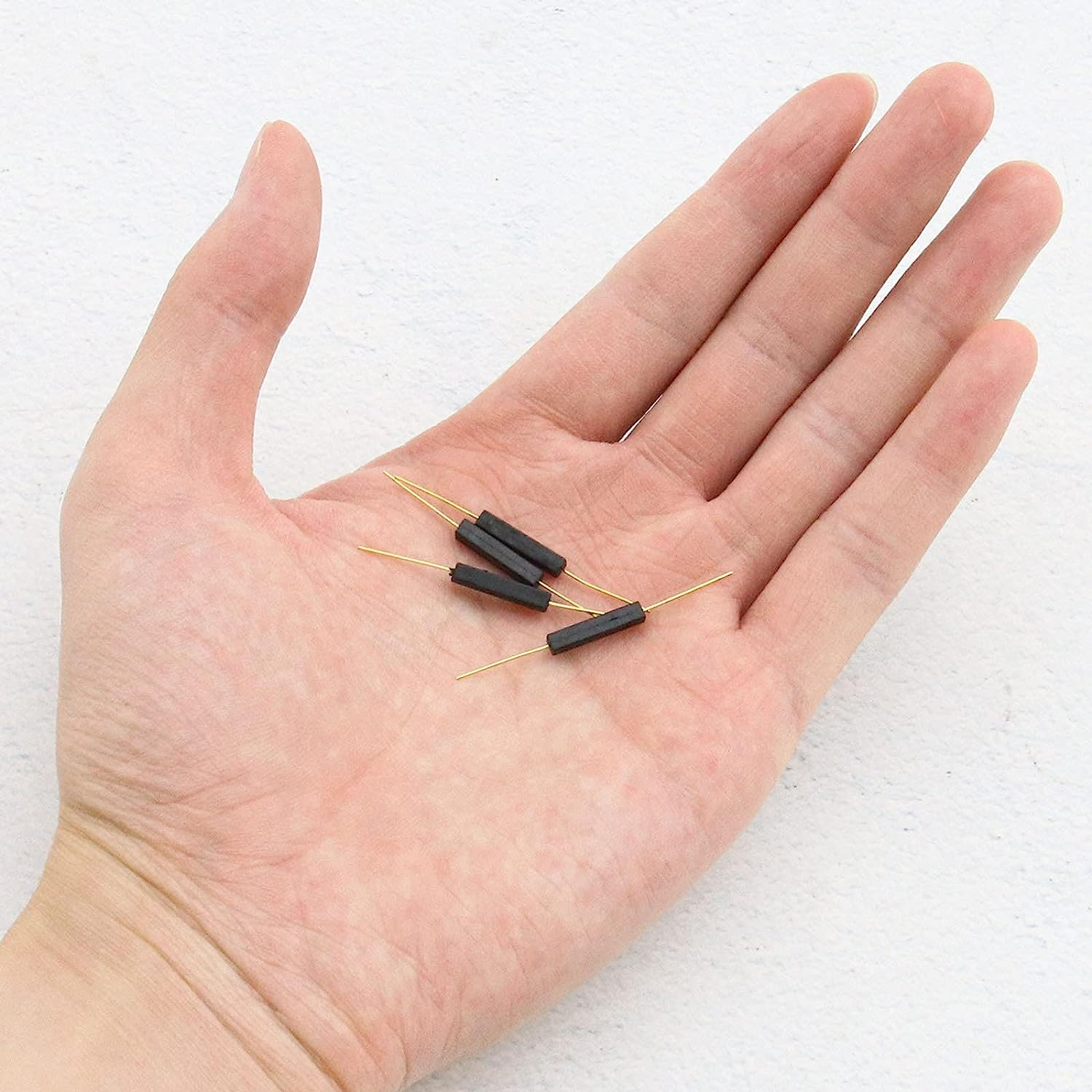

Size:2.5mmx14mm/0.10x0.55inch

Material:Metal, plastic

Rated voltage:100V

Maximum contact resistance:100m

Minimum insulation resistance:1010

Rated current:0.5A

Maximum charging current:1A

Working temperature:-20 degrees to 80 degrees

Package

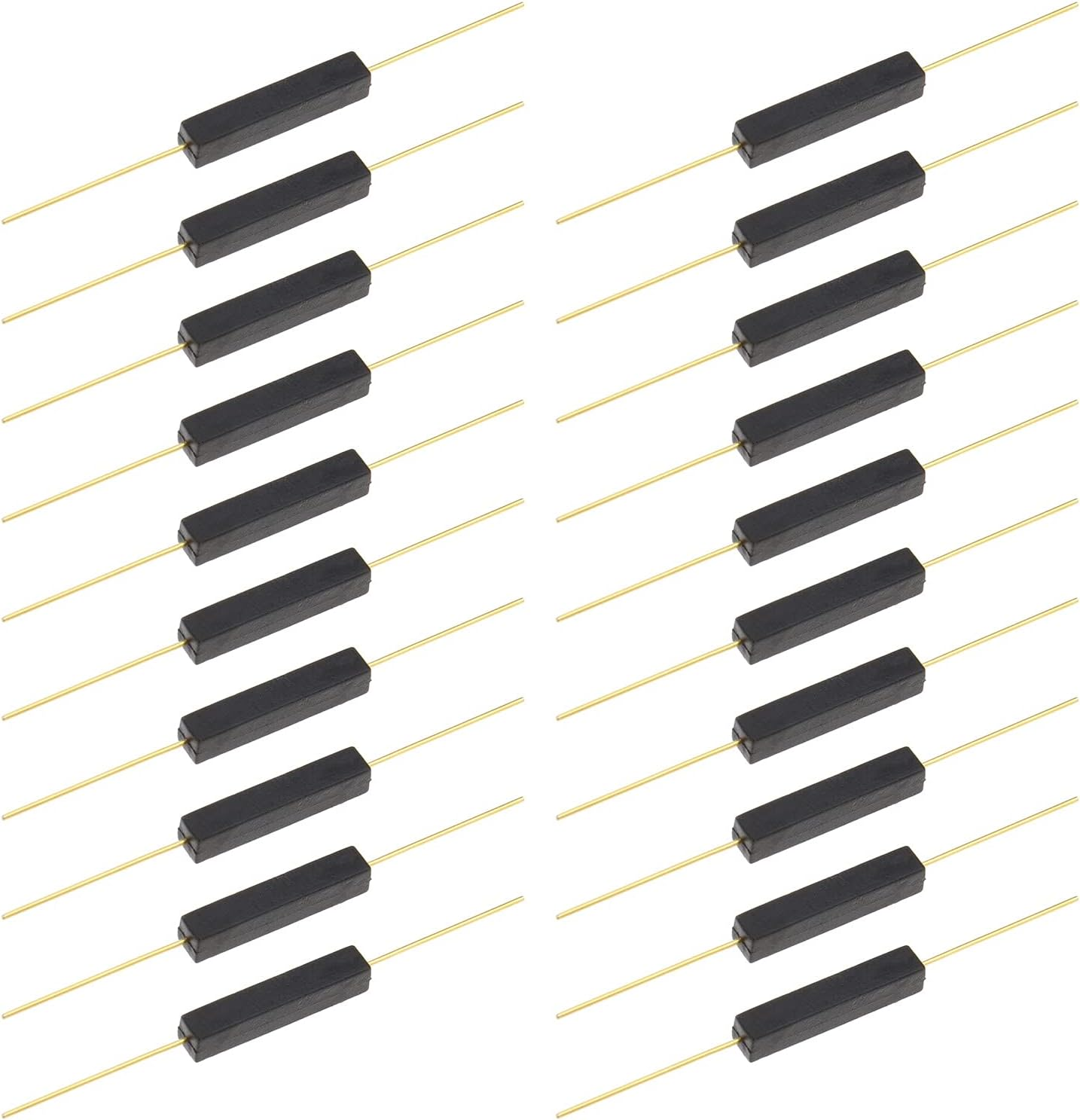

20pcs Reed Switch

  • Number of Items: 20
  • Manufacturer reference: BU|855
  • Colour: Black
  • Material Type: Plastic
  • Compatible with: Treadmills, Wall Switches, Security Systems
  • Connector Type: Wire Leads
  • Brand: eMagTech
  • Size: 2.5mmx14mm
  • Package Dimensions: 12.9 x 11.3 x 1 cm; 10 Grams
  • Manufacturer: eMagTech
