2C53T 3-In-1 Handheld Oscilloscope Multimeter DDS Generator, 2 Channel, 50Mhz Bandwidth, 250Msa/S Sampling Rate, 20,000 Calculations, Voltage, Current, Capacitance, Resistance, 2* P6100 Probes

2C53T 3-In-1 Handheld Oscilloscope Multimeter DDS Generator, 2 Channel, 50Mhz Bandwidth, 250Msa/S Sampling Rate, 20,000 Calculations, Voltage, Current, Capacitance, Resistance, 2* P6100 Probes

A$208.00
Availability:
  • This item is currently not available
Product details

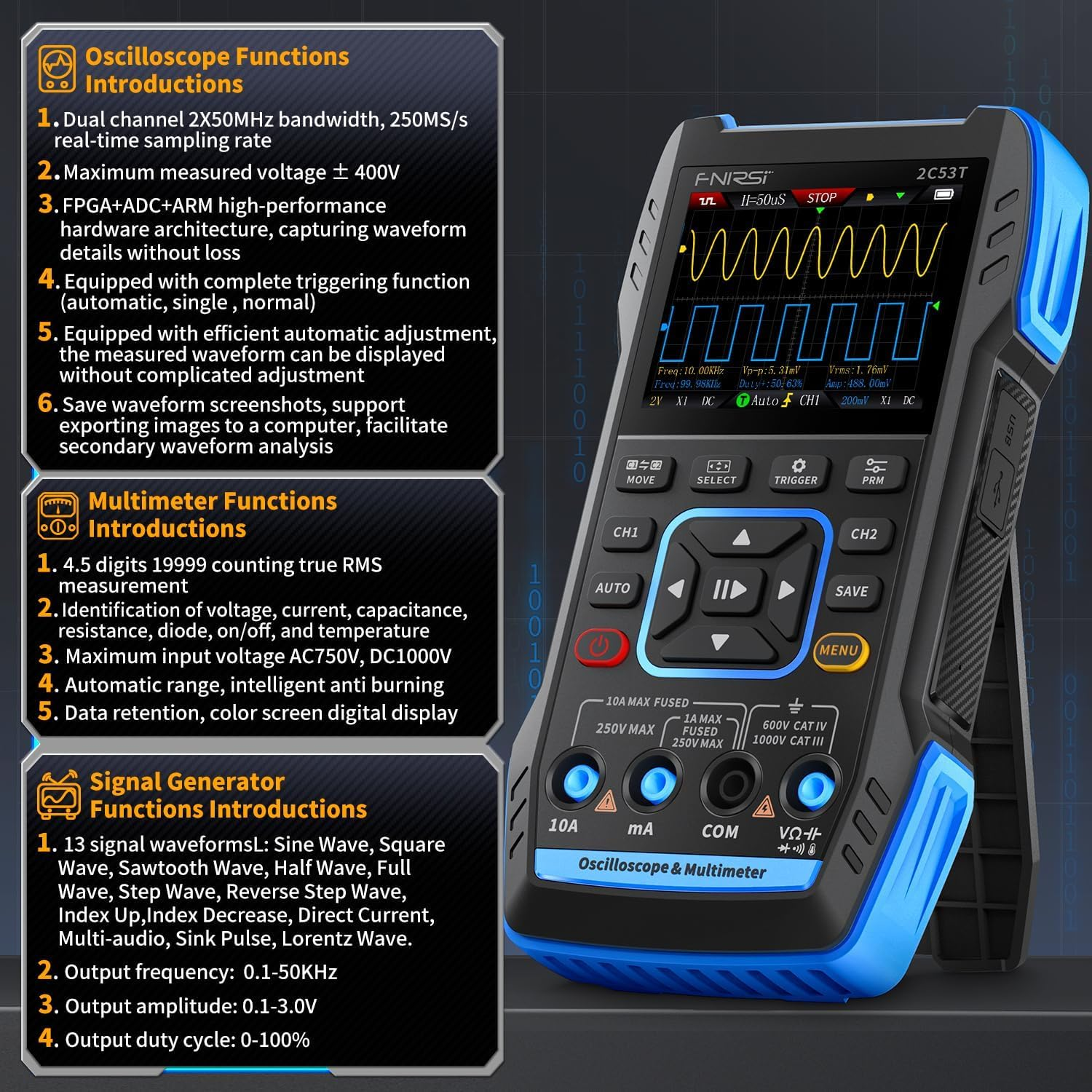

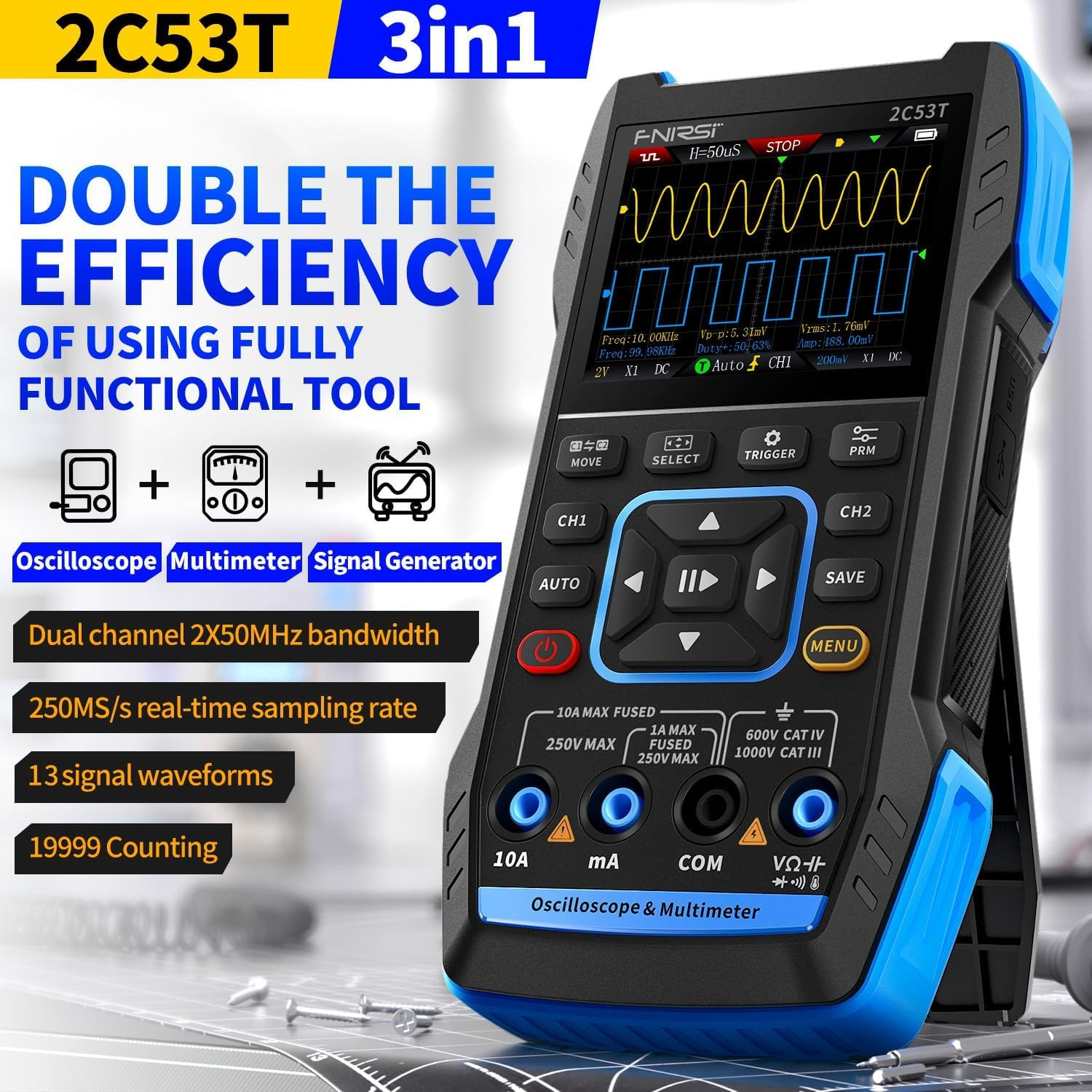

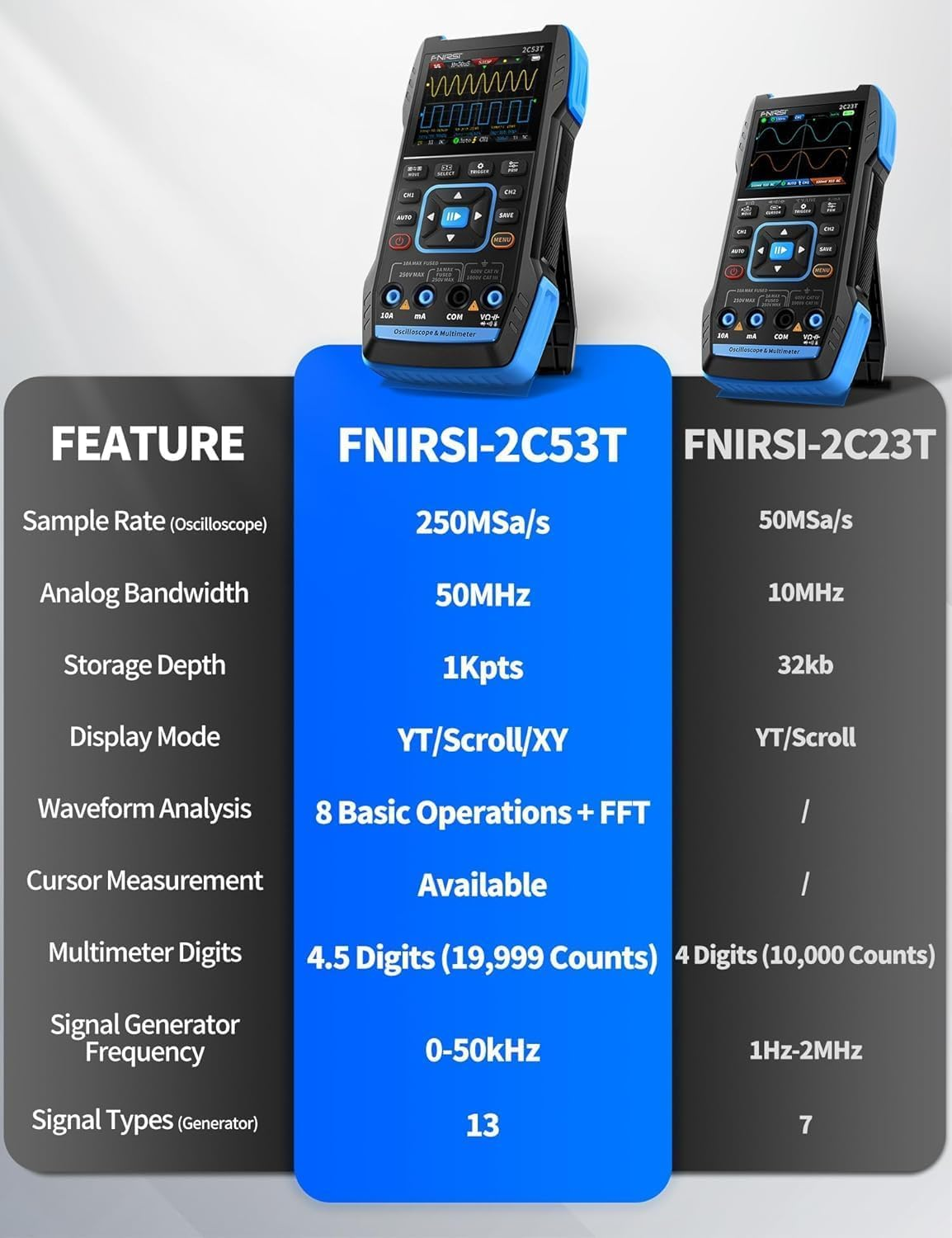

  • [Newly Upgraded] Upgraded with higher parameters on the basis of 2C23T, 2C53T is a full-featured, highly practical 3-in-1 dual-channel digital oscilloscope. It is equipped with three major functions: oscilloscope, multimeter and signal generator.

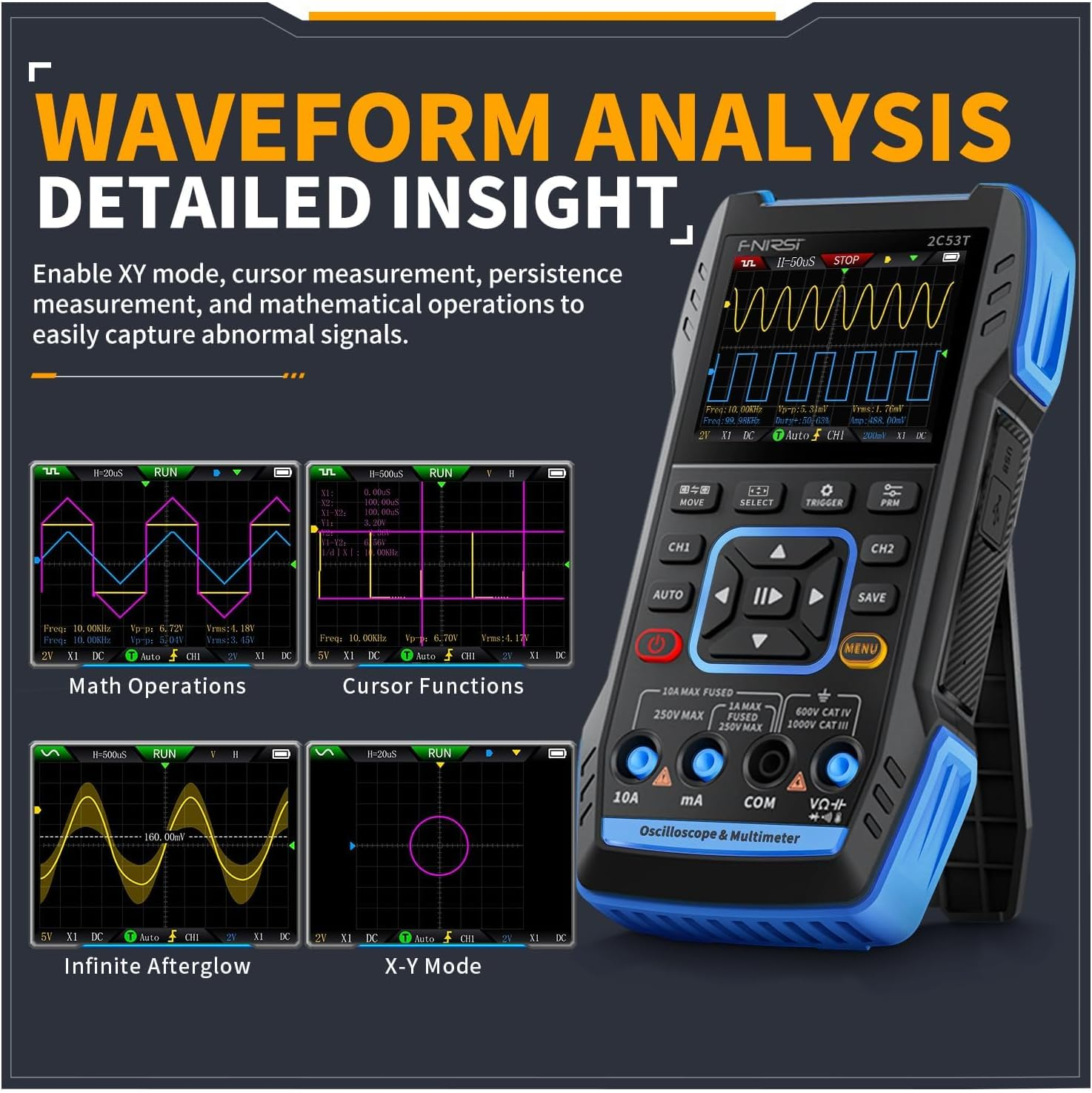

  • [Oscilloscope mode] 2-channel handheld oscilloscope, 50MHz bandwidth, real-time sampling rate of 250MSa/s, recording depth of 1kpts, maximum support for ± 400V peak voltage measurement; support for waveform screenshots to save, view, and convenient for secondary analysis.

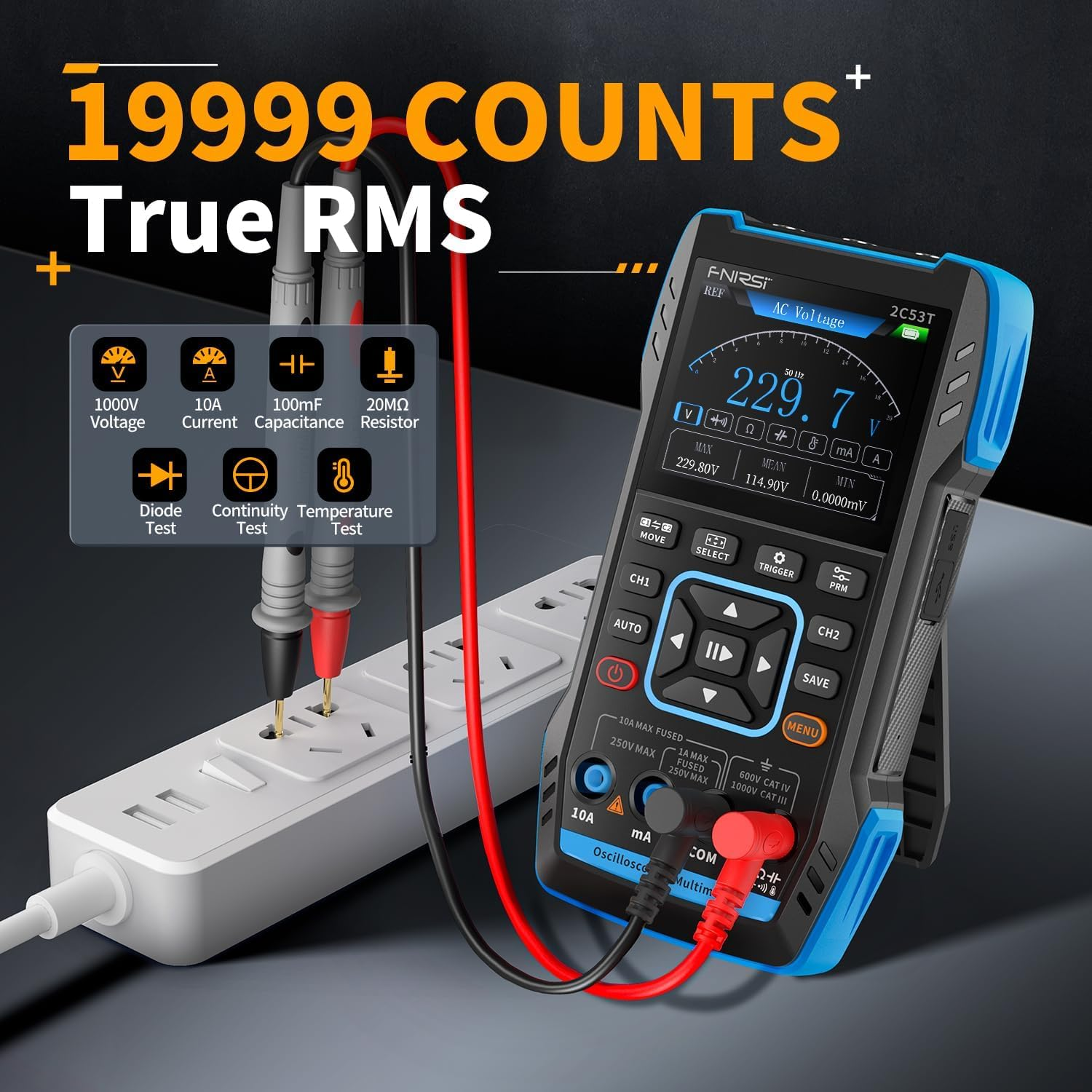

  • [Multimeter Mode] 4 and a half 20,000 points of true RMS value, support for AC and DC voltage and current measurement, capacitance, resistance, diode, on-off and other measurement functions, no matter professionals, factories, schools, hobbyists or families are suitable for use.
  • [Signal Generator] Built-in DDS function signal generator, can output 13 kinds of function signals, all signals maximum output 50KHz, step 1Hz; output frequency, amplitude, duty cycle adjustable.

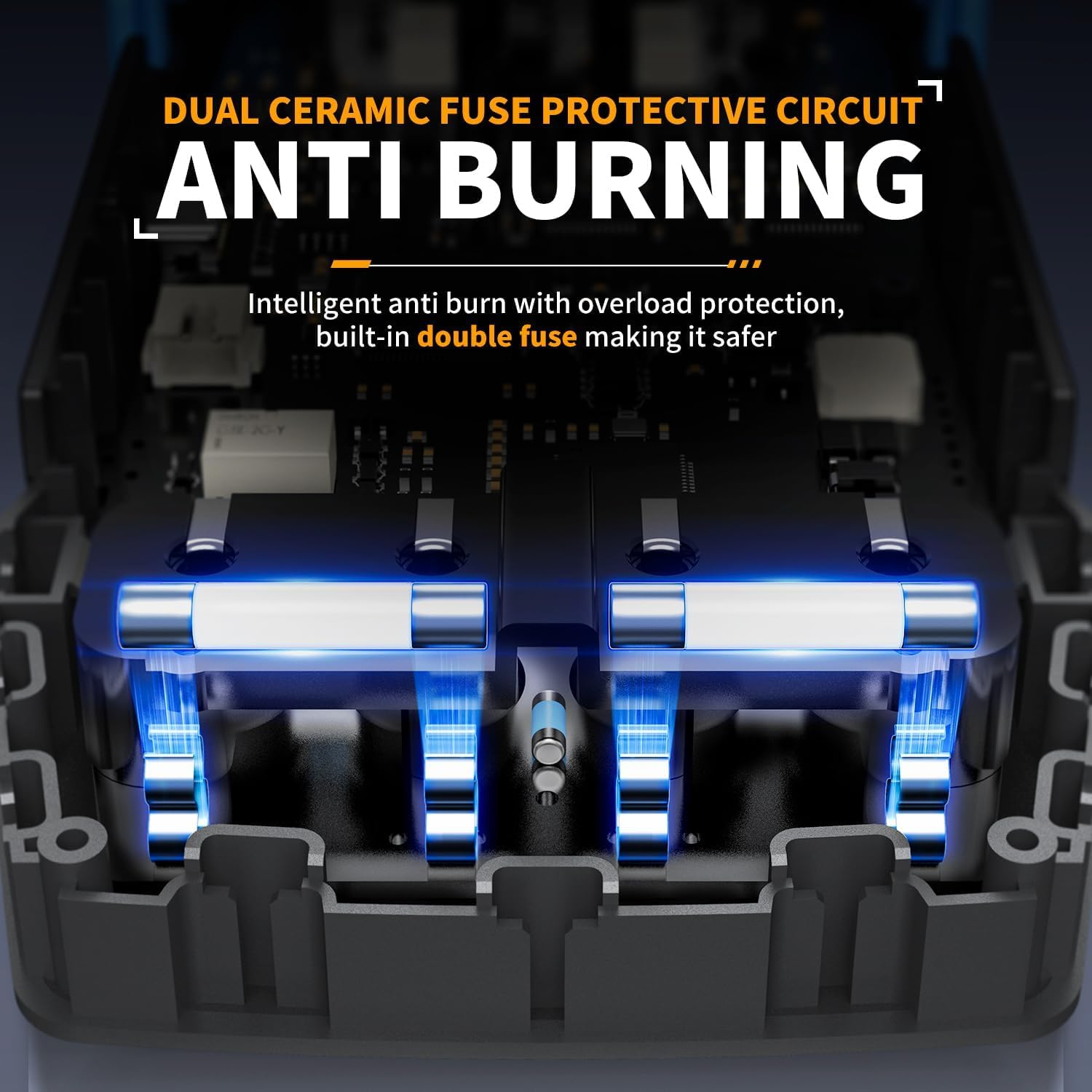

  • Excellent design] The oscilloscope adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, using a 2.8-inch 320*240 resolution high-definition LCD display, built-in 3000mAh rechargeable lithium battery, standby time up to 6 hours. With a compact size with more practical functions, while having a good portability.

Product Description

The video showcases the product in use.The video guides you through product setup.The video compares multiple products.The video shows the product being unpacked.
  • Item Model Number: 2C53T-H
  • Part Number: 2C53T
  • Batteries Required?: No
  • Power Source: Battery Powered
  • Item Package Quantity: 1
  • Product dimensions: 16.69 x 8.89 x 3.51 cm; 839 Grams
  • Certification: CE
  • Item Weight: 839 g
  • Batteries Included?: No
  • Manufacturer: GJMYNSI
  • Colour: 2c53t-h
  • Included Components: Oscilloscopes, oscilloscope probes, instruction manuals
