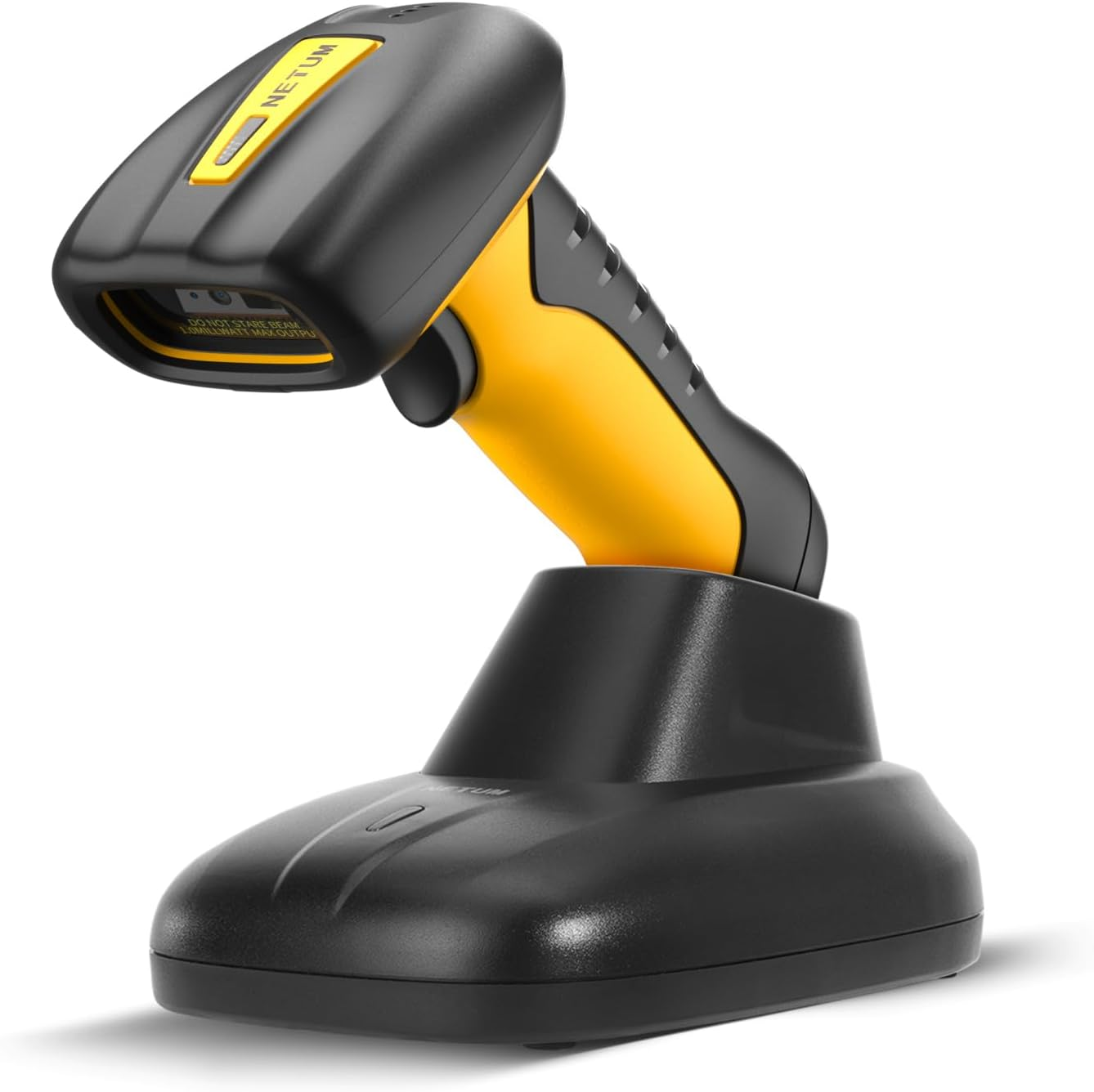

NETUM NT-1202W Upgraded QR Industrial Bluetooth Barcode Scanner with Charging Dock

Excellent Scanning Performance

NETUM NT-1202W barcode scanner is equipped with an advanced 1280H × 1024V pixel (1.3M) CMOS sensor. Fast global exposure makes the scanning speed faster and the frame rate is 120FPS. It can read all kinds of small barcodes smoothly (1D: ≥3 mil, 2D: ≥5 mil(HD), 2D: ≥7 mil(SR)).

It can be widely used in electronics manufacturing, photovoltaic power generation, new energy, medical and inspection equipment, and intelligent manufacturing.

Performance

• Sensor rotation 1280H × 1024V pixels
• Adaptive field of view Horizontal: 42°, Vertical: 40°
• Scanning angle Left/right ±60°, up/down ±60°, 360° rotation
• Print contrast ≥20% (UPC/EAN 100%, PCS 90%)
• Illumination White glare
• Focus Red dot LED aiming
• Reading accuracy 1D : ≥3mil; 2D : ≥5mil(HD); 2D : ≥7 mil(SR)

Symbologies

2D: Data Matrix, QR Code, Micro QR, PDF417, Micro PDF417, Aztec, MaxiCode.

1D: UPC A, UPC E, EAN 8, EAN 13, Code 128, Code 39, Code 93, Code 32, Code 11, Codabar, Plessey, MSI, Interleaved 2 of 5 IATA 2 of 5, Matrix 2 of 5, Straight 2 of 5, Pharmacode, GS1 DataBar 14, GS1 DataBar Expanded, GS1 DataBar Limited, Composite Code A, Composite Code B, Composite Code C.

Decoding range (standard)

• QR (5 mil) 65mm~105mm
• Code39 (3 mil) 45mm~160mm
• Code39 (5 ​​mil) 35mm~250mm
• EAN (13 mil) 40mm~420mm

Connect via 2.4G Wireless and Bluetooth

NETUM NT-1202W barcode scanner works with 2.4G wireless and Bluetooth transmission. The cradle has a built-in 2.4G receiver, making the scanner plug-and-play. Connect the scanner to your device via Bluetooth. Support HID/SPP/BLE mode, easily connected to Laptop, PC, Smartphone, Tablet, iPhone, iPad, POS.

Wireless

• Wireless technology 2.4GHz, Bluetooth
• Communication distance 30-100m (line of sight)
• Battery 2600mAh
• Expected battery life 20 hours of continuous operation
• Expected charging time 4 hours
• Flash memory 2MB

Auto Scan & Save Mode

NT-1202W QR 2D Bluetooth wireless barcode scanner has three scanning modes: manual trigger mode, continuous scan mode and auto-sense scan mode. Hands-free and hand-held operation. In addition, it also has a storage mode. Storage mode can be used when you are out of range of Bluetooth and wireless connection. Supports saving 100,000 barcodes. Note: Before use, you need to scan the corresponding setting barcode in the manual.

Upgraded with durable housing materials, NT-1202W is designed to withstand multiple drops from high altitudes without damage, and its well-assembled construction makes it resistant to water ingress, making it suitable for a variety of harsh environments and applications.
