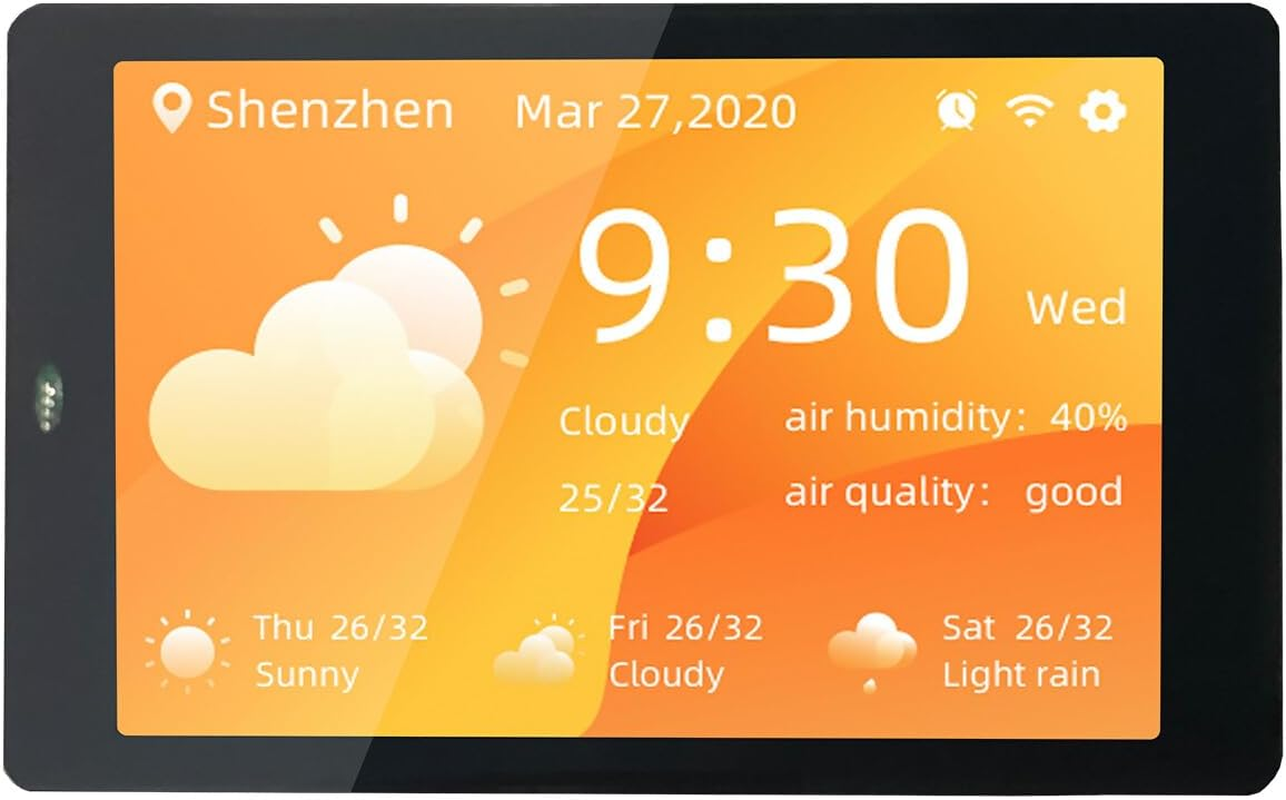

WT32-SC01 is an ESP32 Development board with a 3.5-inch color touch screen. This is the 16MB Flash verioin of this module. The touch screen enables a new way of interacting with the ESP32. The board is equipped with a graphical user interface (GUI) firmware, which supports graphical drag-and-drop programming and helps users develop a customized control platform.

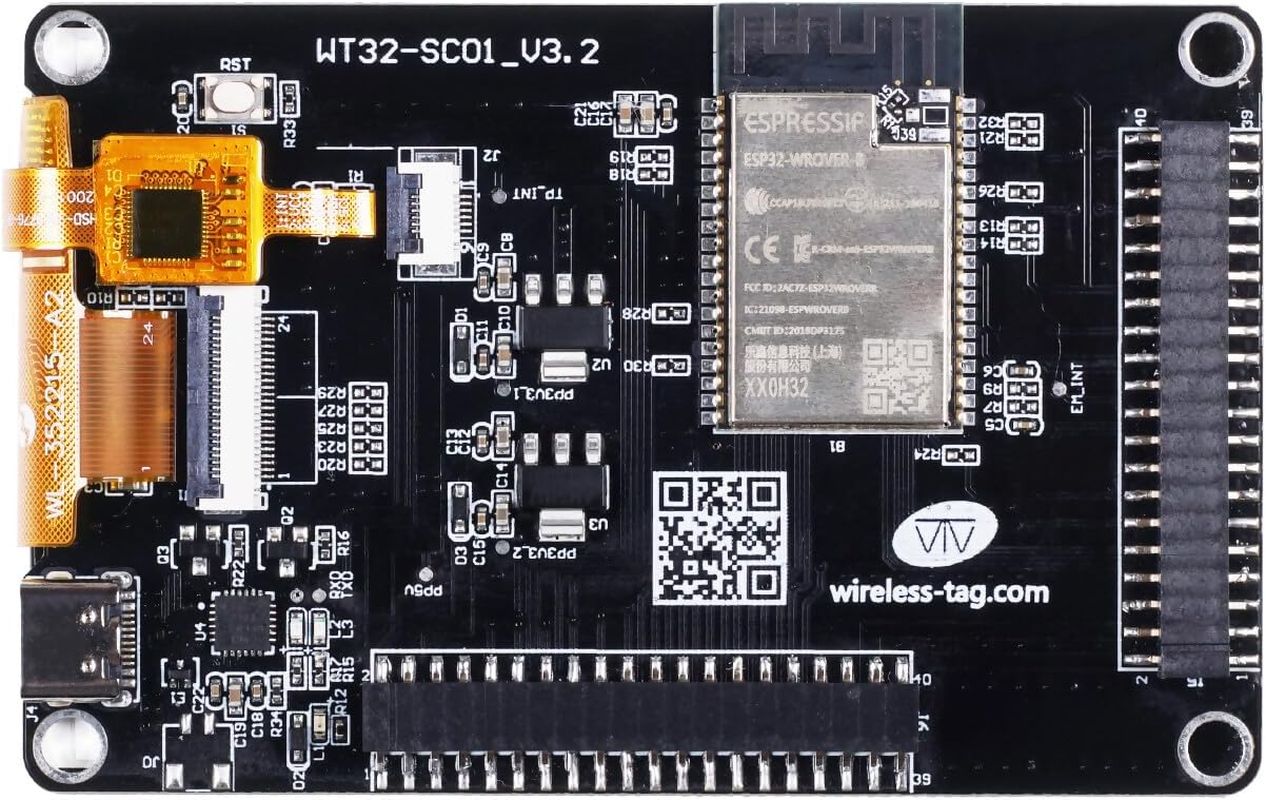

WT32-SC01 development board adopts the ESP32-WROVER-B module, which is a general-purpose MCU module with Wi-Fi, Bluetooth, 4MB SPI Flash and 8MB PSRAM.
By using the expansion interfaces on both sides of the development board, developers can customize the use of functions such as button operation, voice control, and camera operation, which greatly shortens the user's development cycle.
- SoC: ESP32-WROVER-B module
- CPU: Dual-core Xtensa@ 32-bit LX6 MCU
- Connectivity:802.11 b/g/n 2.4GHz Wi-FiBluetooth v4.2 BR/EDR and Bluetooth LE standards

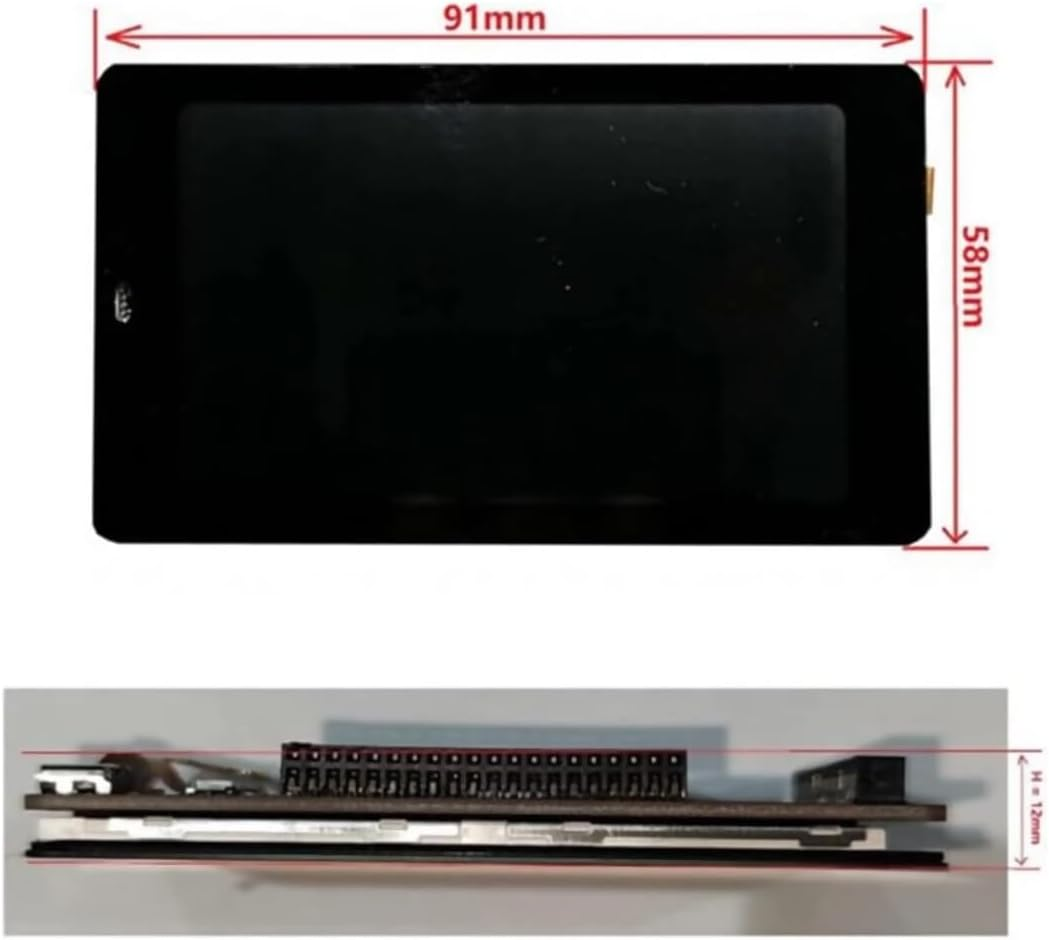

- Display: 3.5 inch, LCD @320x480
- Touch: Capacitive with 2-point multitouch
- Power Supply: DC 5V/2A. 5V/1A
- Operating Temperature: -20 to +85 °C
