Product details
  • Includes a micro: bit control board, 1m USB cable and a battery holder with lead (battery not included, wire length 160mm)
  • Battery holder with On-Off switch to power the micro bit which is very convenient for controlling
  • USB cable to connect the Microbit to your PC for programming.
  • Technical Support: Connection Diagram, Sample Code, Using Method and Resources are provided in our wiki page. Technical support is available via email or message.

Product Description

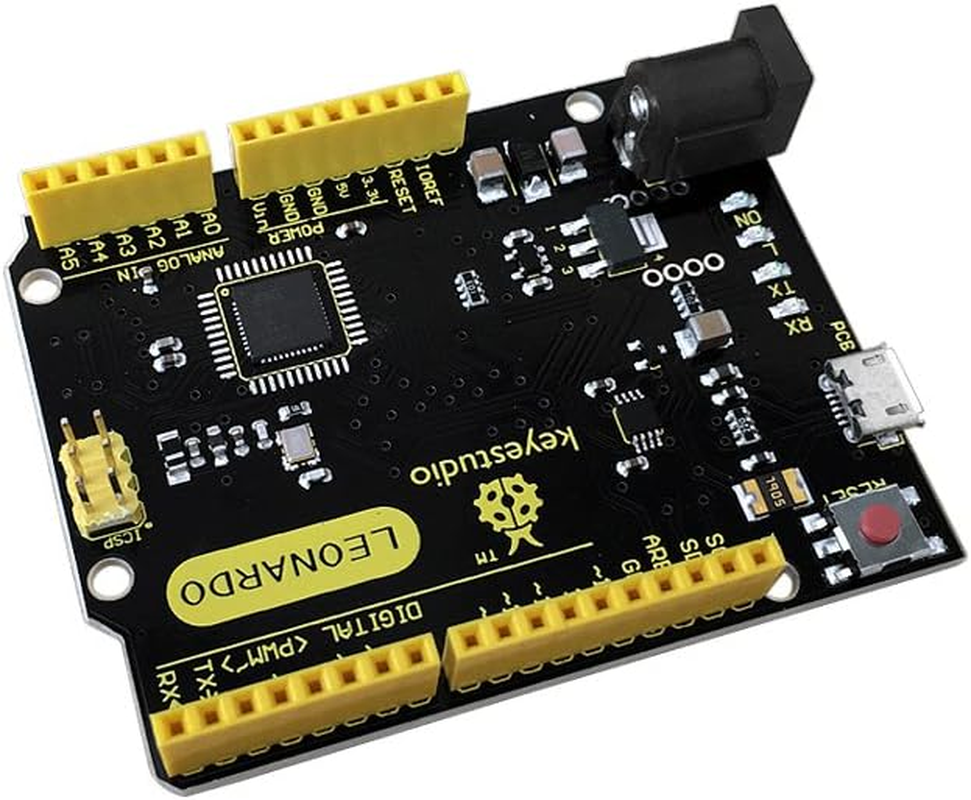

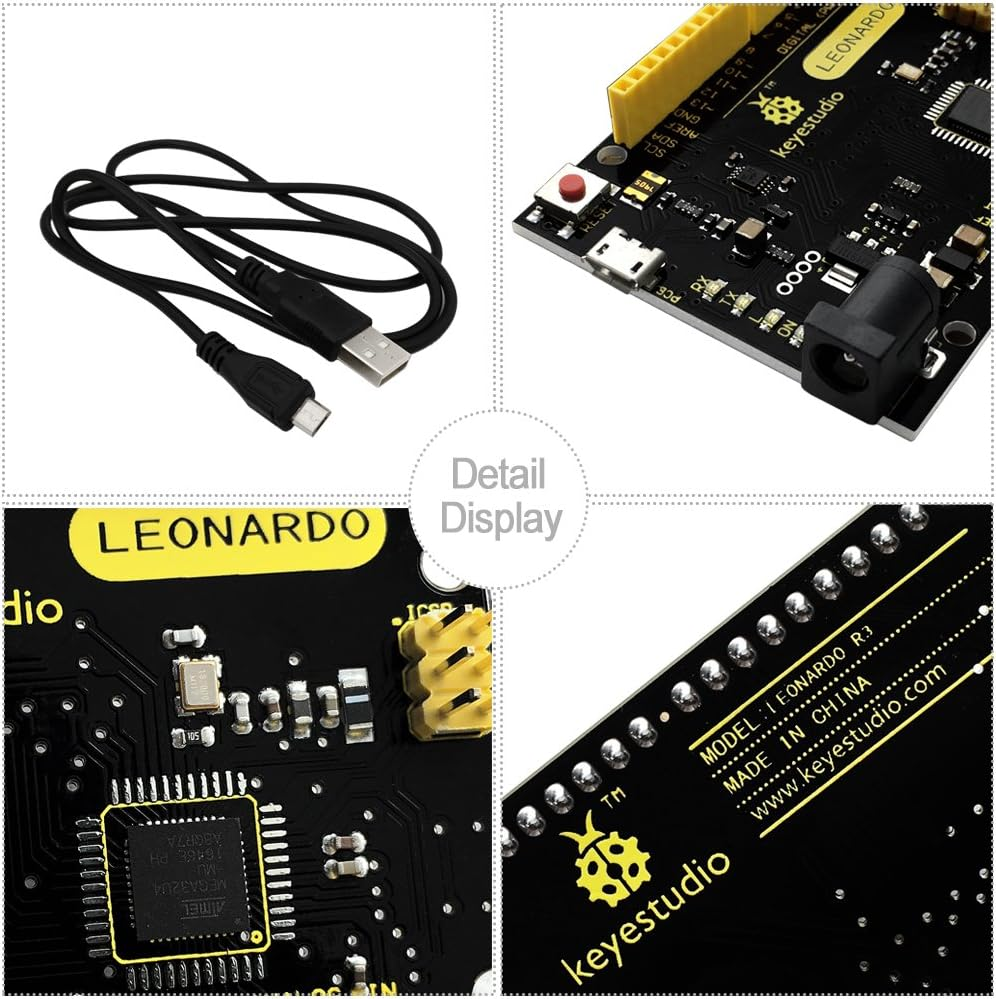

KEYESTUDIO Leonardo R3 Board

KEYESTUDIO Leonardo board offers incredible value with its impressive performance, making it a top choice for Arduino enthusiasts.

The Leonardo differs from other Arduino boards using separate USB-Serial chip in that it has built-in USB communication, eliminating the need for a secondary processor.

Power Supply:

The board has 20 digital input/output pins (of which 7 can be used as PWM outputs), 12 analog inputs, a 16MHz crystal oscillator, a micro USB connection, a power jack, an ICSP header, and a reset button.

The keyestudio Leonardo can be powered via the micro USB connection, or via an external power supply jack (DC 7-12V) or even with female headers Vin /GND (DC 7-12V).

Memory Store:

KEYESTUDIO Leonardo R3 Board has 32KB of flash memory for storing code (of which 4 KB is used for the bootloader), 2.5KB of SRAM and 1KB of EEPROM (which can be read and written with the Eeprom library).

Board Model:

Neat little Leonardo r3 board works just like the original!

Another great Arduino alternative. It works fine and the quality is good. The yellow and black theme is unique.

Technical Specification:

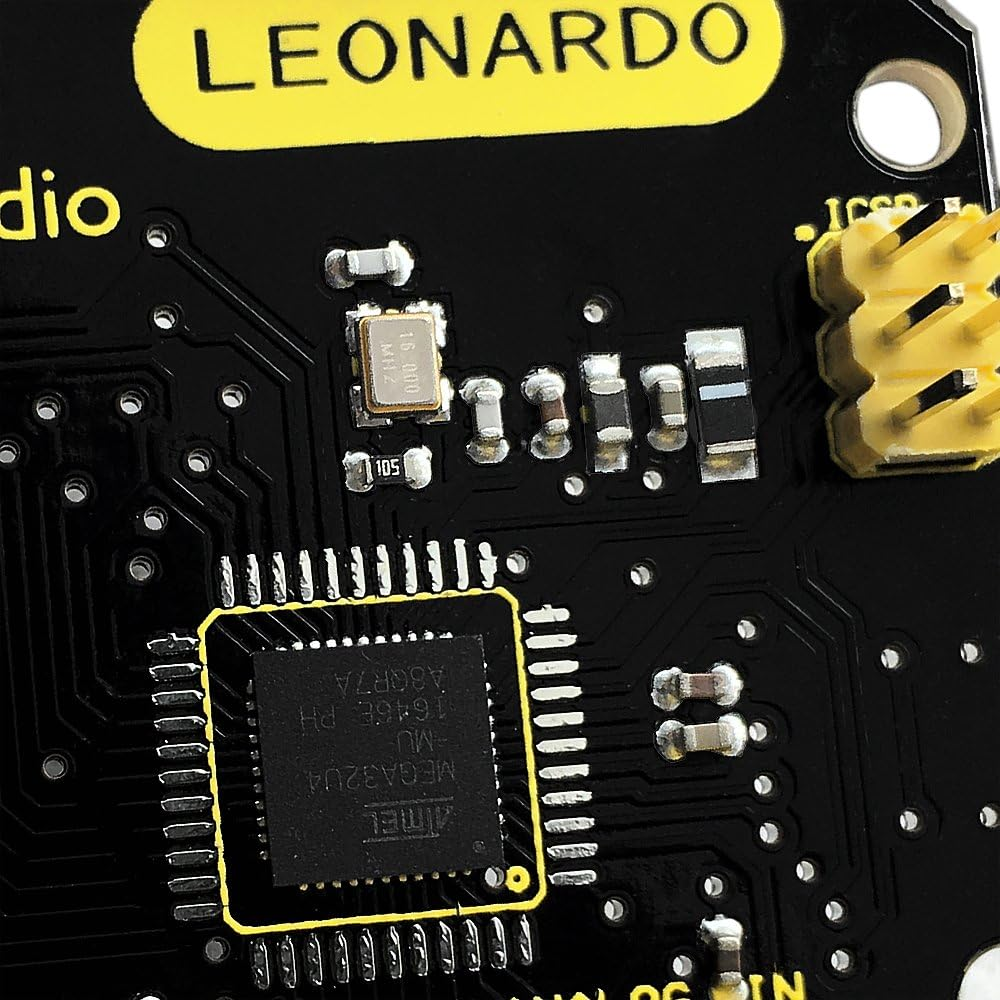

  • Microcontroller: Atmega32u4
  • Operating Voltage：5V
  • Input voltage (recommended): DC7-12v
  • Digital I/O Pins: 20 (of which 7 provide PWM output)
  • PWM Digital I/O Pins: 7
  • Analog Input Pins: 12
  • DC Current per I/O Pin: 40mA
  • DC Current for 3.3V Pin: 50mA
  • Flash Memory: 32KB (ATmega32u4) of which 4KB used by boot loader
  • SRAM: 2.5 KB (ATmega32u4);
  • EEPROM: 1 KB (ATmega32u4);
  • Clock Speed: 16MHz
  • LED_BUILTIN: D13
  • Digital I/O pins: D0-D13 and A0-A5 (D18-D23); the ICSP pins can be used as digital pins.
  • Analog Inputs: A0-A5, A6-A11, that is, D4 (A6)、D6 (A7)、D8 (A8)、D9 (A9)、D10 (A10) and D12 (A11)
  • PWM pins: D3, D5, D6, D9, D10, D11 and D13.
  • External Interrupts: D3(interrupt0);D2(interrupt1); D0 (interrupt2), D1(interrupt3), D7(interrupt4).
  • Serial communication: D0 (RX) and D1 (TX)

Package List:

The Leonardo R3 board is small and easy to operate. Used it for a project for school.

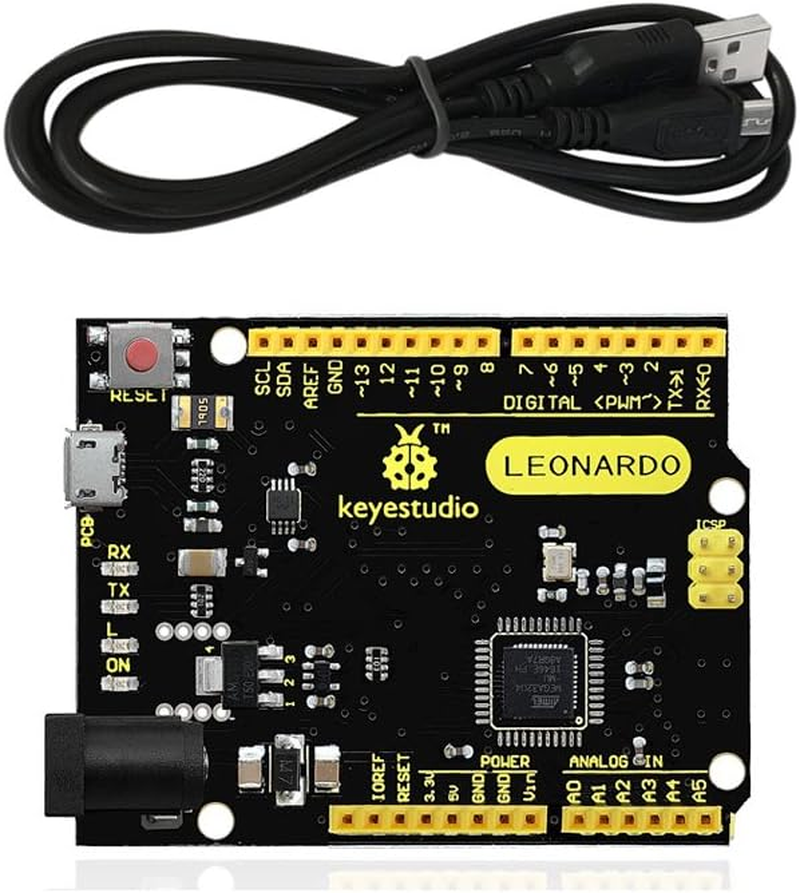

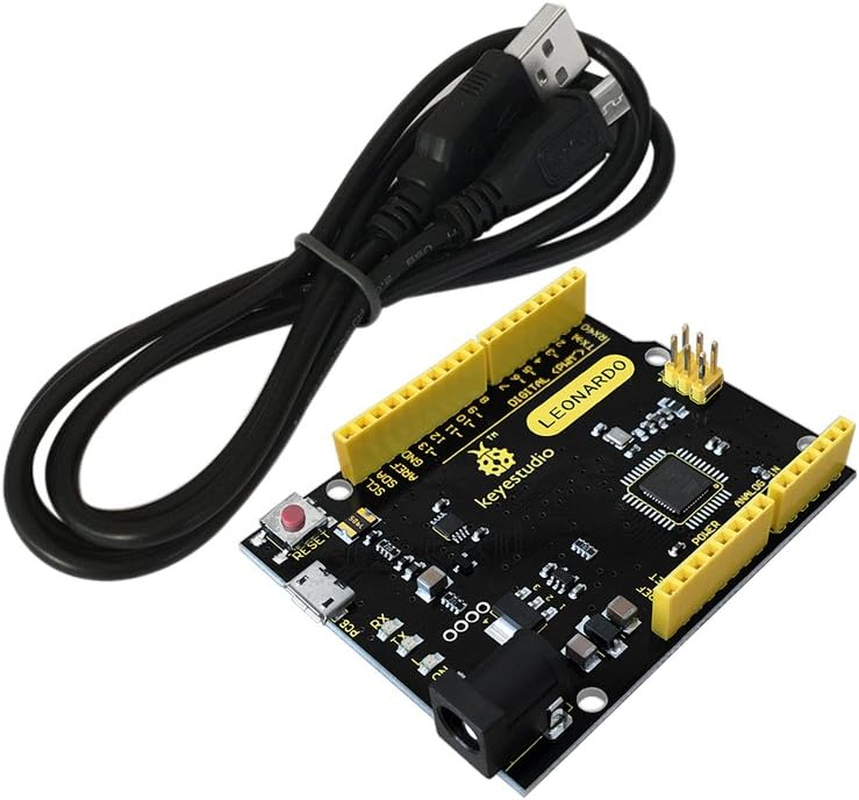

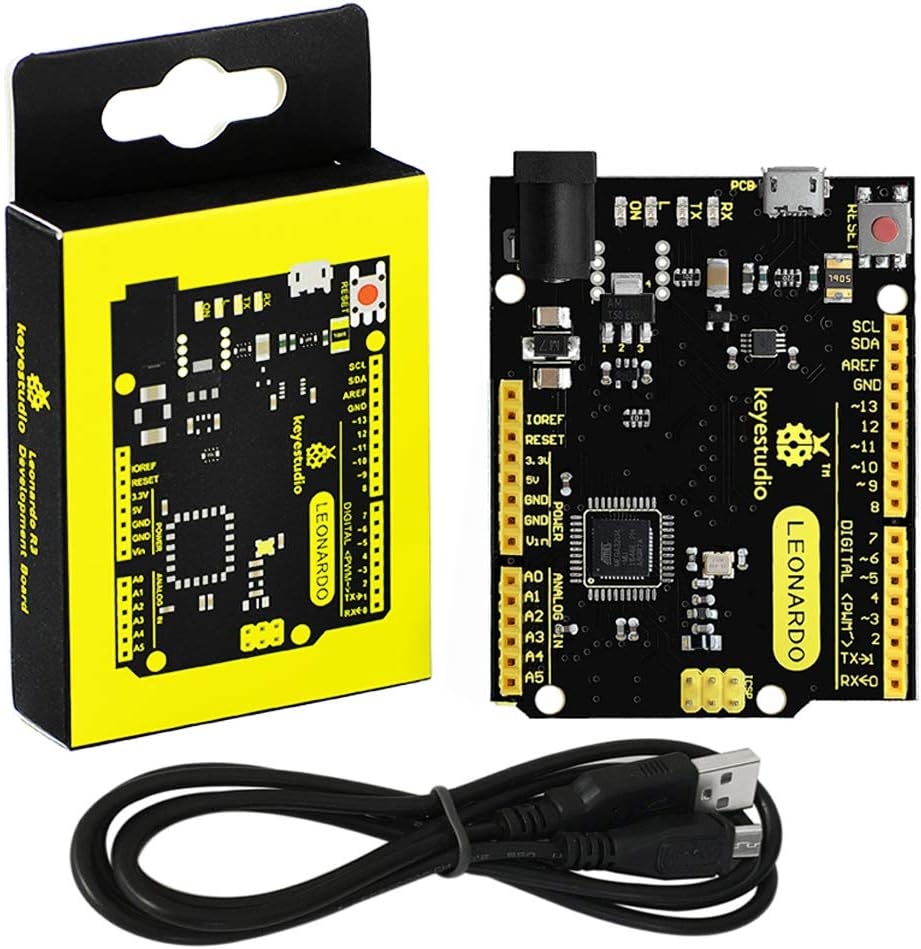

  • 1 x keyestudio Leonardo R3 Development Board
  • 1 x Black USB Cable
  • Hardware Platform: PC
  • Country/Region of origin: China
  • Memory Storage Capacity: 32 KB
  • Product dimensions: 6.85 x 5.3 x 0.42 cm; 58.97 Grams
  • Colour Screen: No
  • Processor Count: 1
  • RAM Size: 1 GB
  • Is discontinued by manufacturer: No
  • Wireless Type: Bluetooth
  • Operating System: Windows 10 Pro
  • Colour Name: Leonardo R3
  • Hard Drive Size: 1 MB
  • Processor Brand: Intel
  • Brand: KEYESTUDIO
  • Hard Disk Rotational Speed: 1
  • Ram Memory Technology: DDR3
  • Model Name: KE-0011
  • Hard Disk Description: HDD
  • Hardware Interface: USB
  • Graphics RAM Type: EEPROM
  • Manufacturer: keyes
  • Item Model Number: KE-0011
  • Language: English
  • Batteries Included: No
  • Batteries Required: No
  • Ram Memory Installed Size: 5 MB
  • Connector Type: USB
  • Item Weight: 59 g
  • Human interface input: Buttons
  • Has Auto Focus: No
  • Standing screen display size: 3.42 Inches
  • Model: KE-0011
  • Computer Memory Type: DDR3 SDRAM
  • Part Number: ks0248
  • Mounting Hardware: NO
  • Has Programmable Buttons: No
  • Compatible Devices: Personal Computer, Laptop, Tablet
  • Voltage: 5 Volts
  • Hard Drive Interface: USB
  • Processor Type: Intel Core i9
