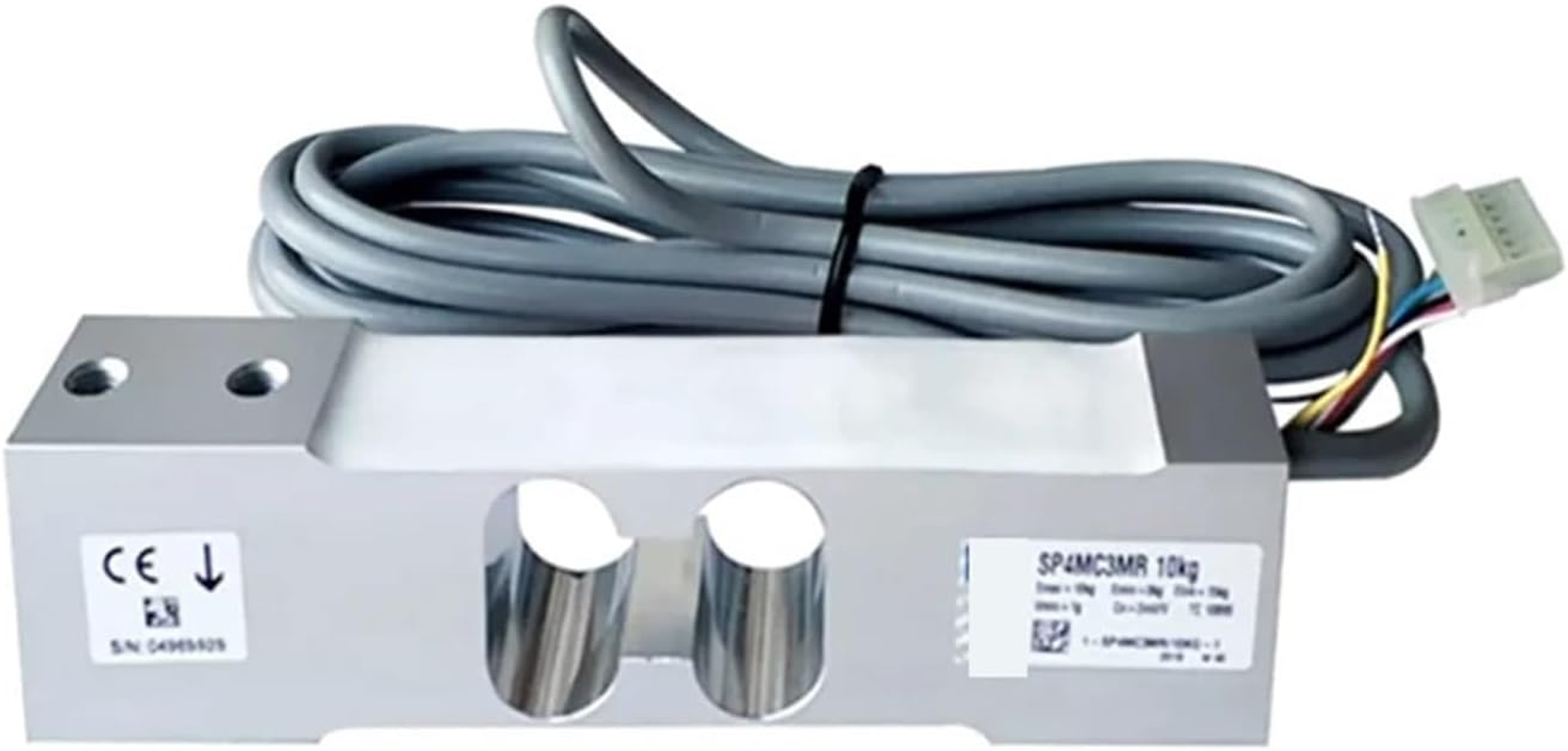

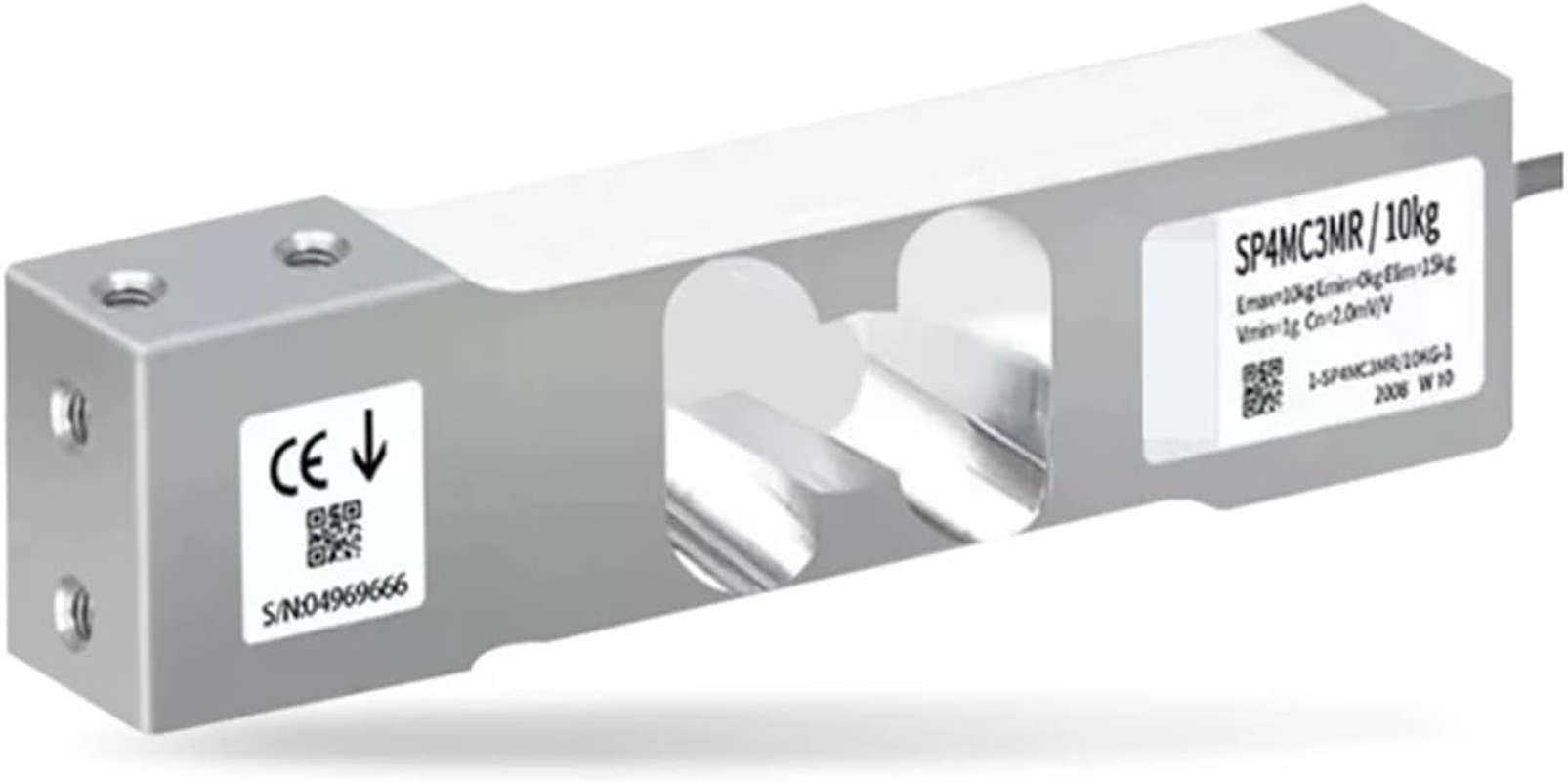

SP4M High Precision Single Point Weight Sensor Aluminum Alloy Load Cell for High Pressure Tension Weighing Precise Measurement to Measure Force, Pressure, Displacement, Strain(20Kg)

SP4M High Precision Single Point Weight Sensor Aluminum Alloy Load Cell for High Pressure Tension Weighing Precise Measurement to Measure Force, Pressure, Displacement, Strain(20Kg)

A$524.45
Availability:
  • In Stock
Product details
  • Nonlinear : 0.0166%R.C Creep(30 minutes) : 0.0166%R.C
  • Zero point output : 0±0.1%R.C Opearting temperature range : -10-+50
  • Temperature Compensation Range : -10-+40 Degree of protection : IP67
  • Input resistance : 300-500 Output resistance : 300-500 Maximum excitation voltage : 1-8V Side load : 200%R.C
  • Insulation resistance : 2000M Recommended excitation voltage : 5V Damage load : >300%R.C

Specifications:
Theory : Resistance Sensor
Usage : Pressure Sensor
Material : Metal
Type : vibration sensor
Output : Analog Sensor
Rated range : 1-200kg
Sensitivity : 2±1.0MV/V
Hysteresis : 0.0166%R.C
Nonlinear : 0.0166%R.C
Creep(30 minutes) : 0.0166%R.C
Zero point output : 0±0.1%R.C
Opearting temperature range : -10-+50
Temperature Compensation Range : -10-+40
Degree of protection : IP67
Input resistance : 300-500
Output resistance : 300-500
Insulation resistance : 2000M
Recommended excitation voltage : 5V
Maximum excitation voltage : 1-8V
Side load : 200%R.C
Damage load : >300%R.C
Safety overload : 150%R.C
Extreme overload : 300%R.C

  • Item Model Number: 1364638736843453
  • Part Number: 1364638736843453
  • Item Package Quantity: 1
  • Colour: Silver
  • Country of origin: China
  • Item Weight: 1.35 kg
  • Size: 20KG
  • Manufacturer: XYZGTYUJ
  • Package Dimensions: 21.01 x 14 x 7.01 cm; 1.35 kg
  • Number Of Pieces: 1
