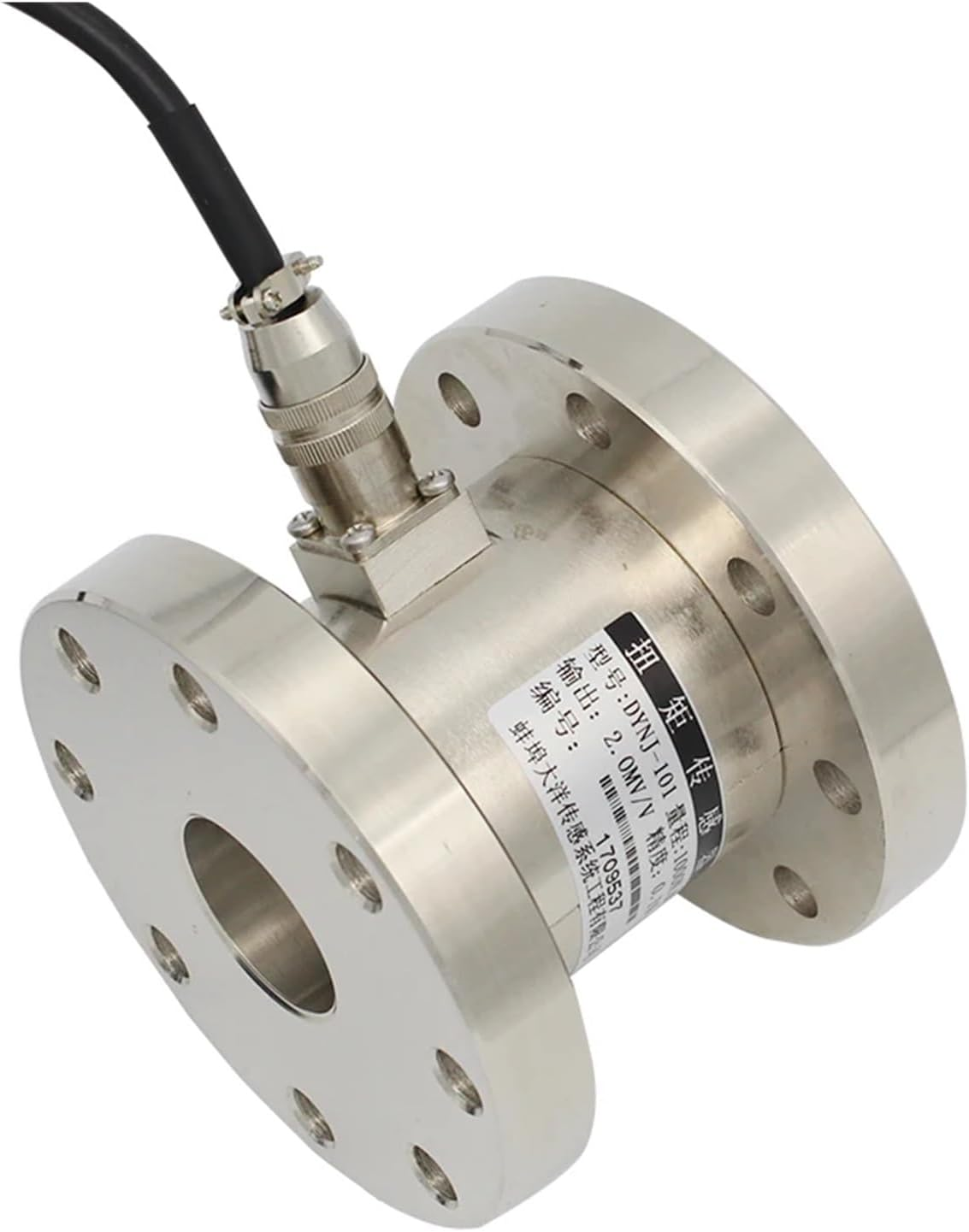

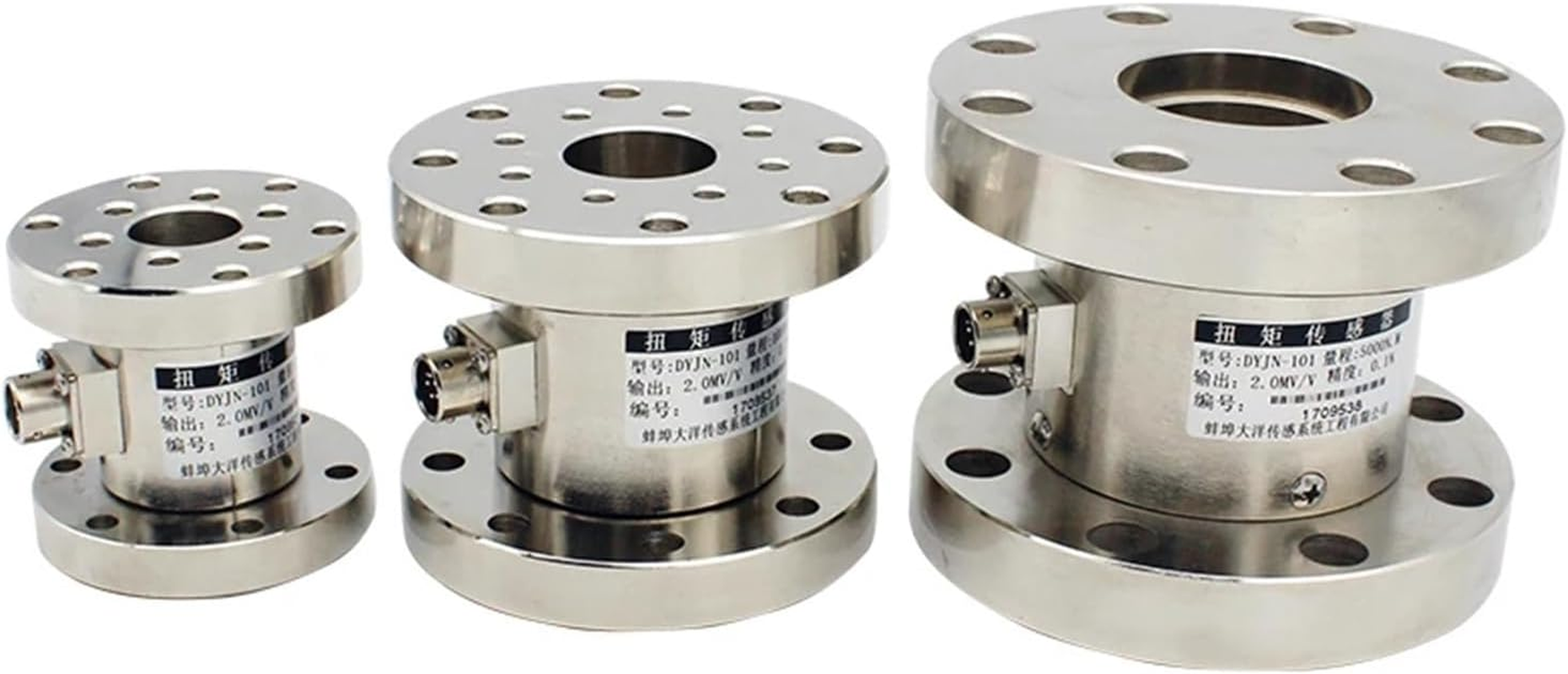

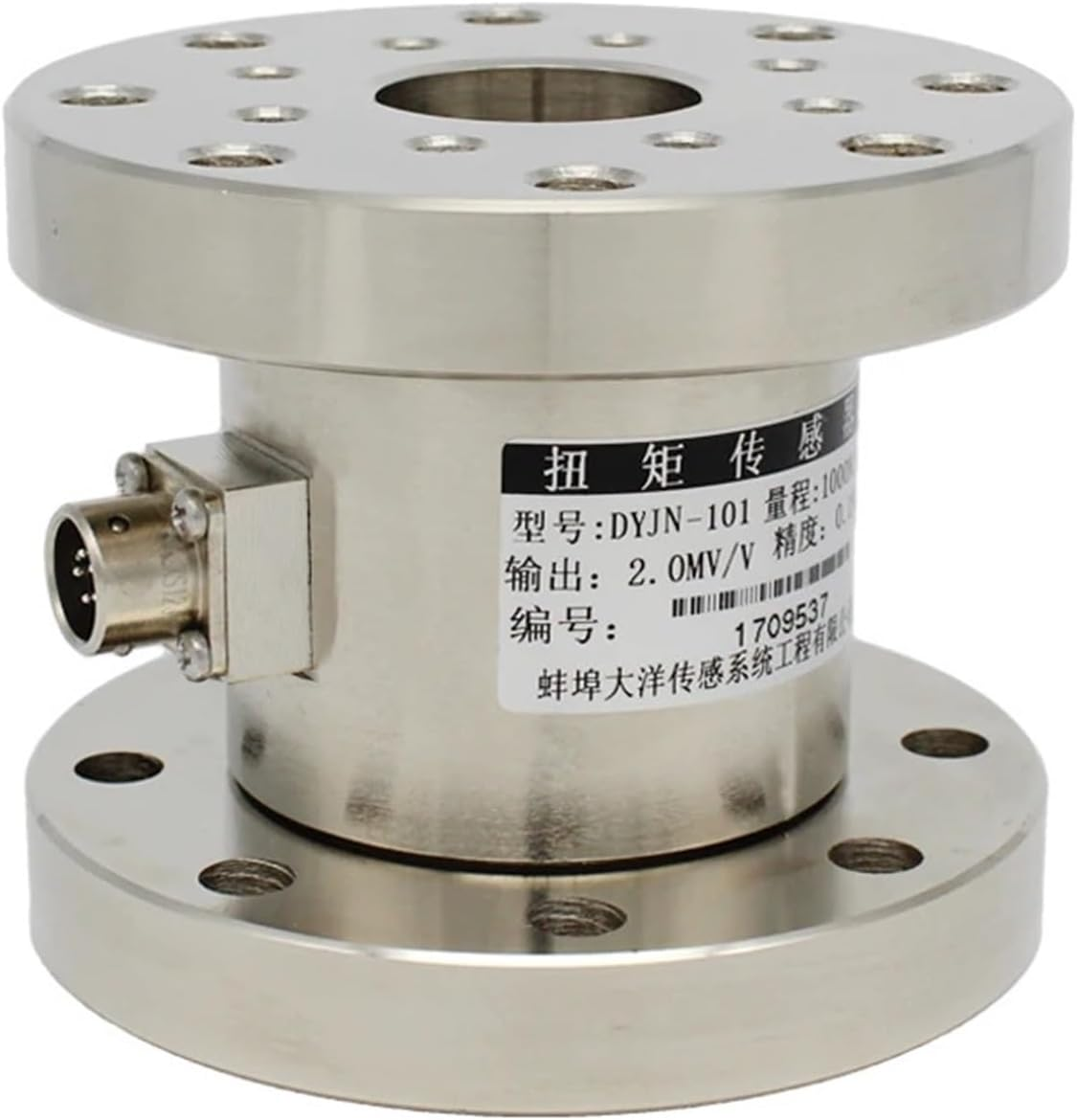

Torque Force Sensor 20Nm 500Nm 5000Nm Static Double Flange Rotary Non-Continuous Transducer to Measure Force, Pressure, Displacement, Strain(5000Nm)

Torque Force Sensor 20Nm 500Nm 5000Nm Static Double Flange Rotary Non-Continuous Transducer to Measure Force, Pressure, Displacement, Strain(5000Nm)

A$287.55 - A$1,458.25
Availability:
  • Select Styles for Availability
Product details
  • 1. High Precision Torsion Force Sensor: Our Torsion Force Sensor is designed with utmost precision to accurately measure torque in a wide range from 20Nm to 5000Nm. With its double flange rotary torsional non-continuous transducer, it ensures reliable and consistent results for your applications.
  • 2. Advanced Specifications: This Torsion Force Sensor comes with exceptional specifications that make it stand out in the market. Its output of 1.02.0mV/v and response frequency of 1kHz guarantee fast and accurate data acquisition. The zero point output variation of only ±2%F.S. ensures high stability and reliability in torque measurements.
  • 3. Reliable Construction: Crafted with alloy steel material, our Torsion Force Sensor offers excellent durability and resistance to harsh conditions. Its non-linearity of 0.3%F.S., hysteresis of 0.1%F.S., and insulation resistance of 5000M/100V DC further enhance its performance and ensure precise torque measurements.
  • 4. Wide Operating Range: This Torsion Force Sensor operates flawlessly within a temperature range of -20-80°C, making it suitable for various industrial environments. Its temperature sensitivity drift of only 0.05%F.S./10 ensures minimal measurement errors even in extreme temperature conditions.
  • 5. Overload Protection: We prioritize safety in our Torsion Force Sensor design. With a safety overload capacity of 120%R.C., it can withstand sudden spikes in torque without any damage. Moreover, its extreme overload protection up to 1500%R.C. ensures long-lasting performance under heavy-duty applications. Trust our Torsion Force Sensor to meet all your torque measurement requirements with precision and reliability.

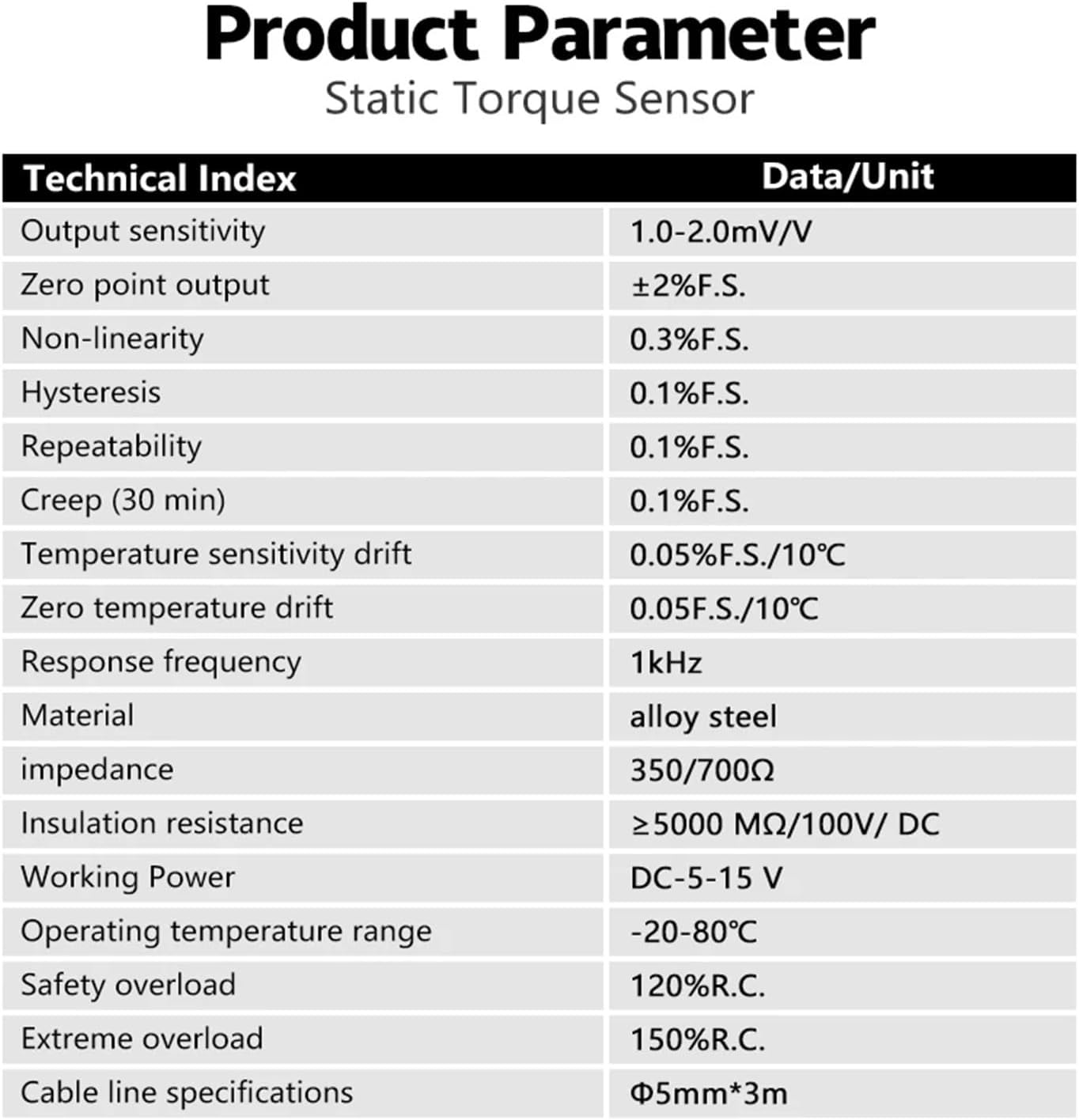

Specification
Paramet value/Unit Parameter value/Unit
Capacity 0-100000N.m
Output . 1.02.0mV/v
Zero point output ±2%F.S.
Material Alloy steel
Non-Linearity 0.3%F.S.
lmpedance 350
Hysteresis 0.1%F.S.
lnsulation resistance 5000M/100V DC
Repeatability 0.1%F.S.
Working Power DC 5-10V
Creep(30min) 0.1%F.S/30min
Operatingtemperature range -20-80°C
Temperature sensitivity drift 0.05%F.S./10
Zero temperature coefficient 0.05%F.S./10
Extreme overload 1500%R.C.

  • Item Model Number: 1005005888020215
  • Part Number: 1005005888020215
  • Item Package Quantity: 1
  • Colour: Silver
  • Country of origin: China
  • Number Of Pieces: 1
  • Item Weight: 6 kg
  • Manufacturer: XYZGTYUJ
  • Package Dimensions: 22 x 14 x 7.01 cm; 6 kg
  • Size: 5000Nm
