12V/24V 12V/24V Electric Solenoid Air Valve 1/8" BSP 1/8" Brass Electric Solenoid Valve (DC12V)

12V/24V 12V/24V Electric Solenoid Air Valve 1/8" BSP 1/8" Brass Electric Solenoid Valve (DC12V)

A$25.30
Availability:
  • This item is currently not available
Product details
  • This is direct acting solenoid air valve, which is sensitive to change direction
  • This solenoid air valve is made of brass material and in durable use
  • Heavy duty body has a long service life, for electrically driven pneumatic power control
  • The internal valve core and spring are made of stainless steel and will not rust, no need for extra lubrication
  • With solenoid operated to control proper flow and direction, provide great performance

Product Description

12V/24V 12V/24V Electric Solenoid Air Valve 1/8" BSP 1/8" Brass Electric Solenoid Valve (DC12V)


Heavy duty body has a long service life, for electrically driven pneumatic power control


This is direct acting solenoid air valve, which is sensitive to change direction


With solenoid operated to control proper flow and direction, provide great performance



Descriptions:

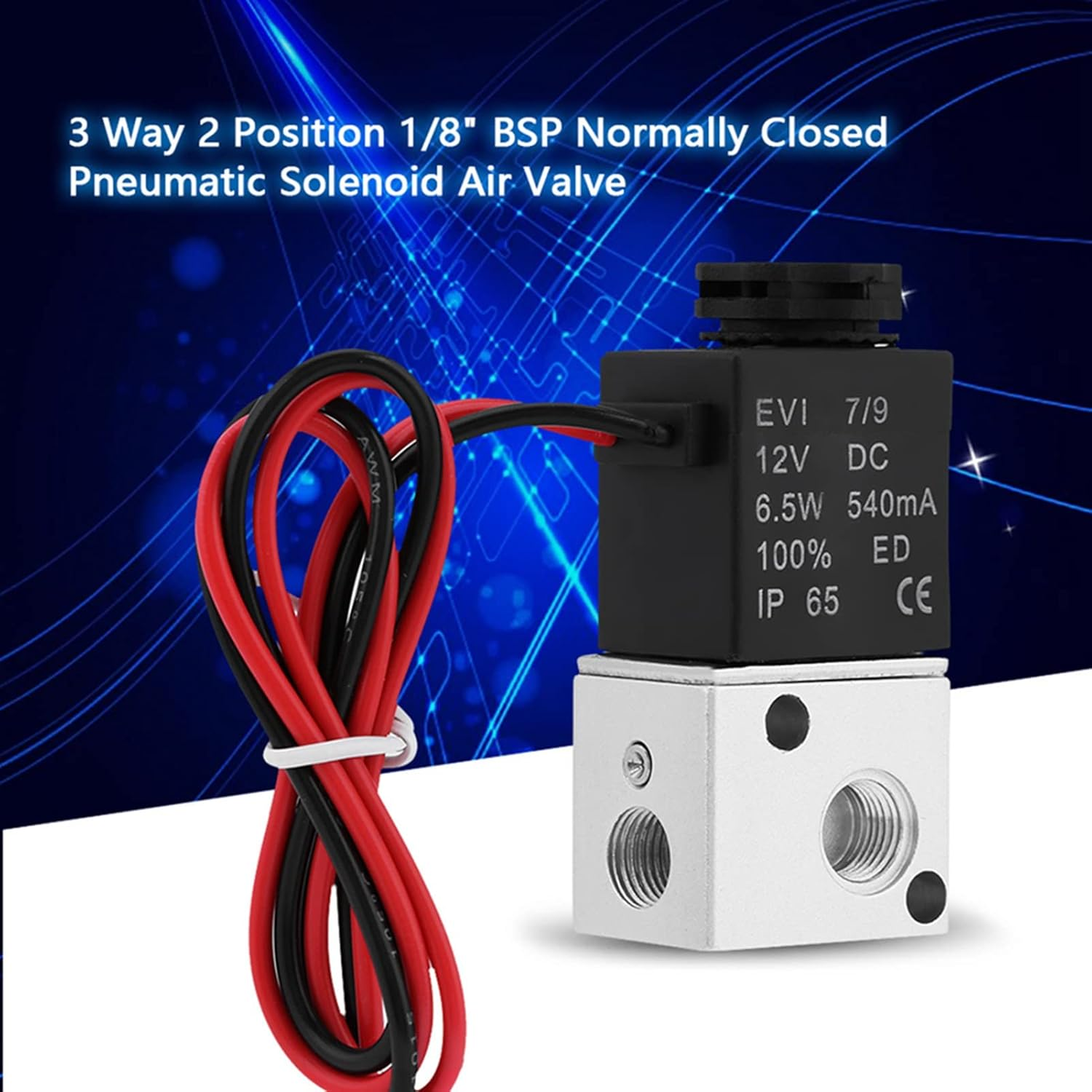

This solenoid air valve is the 3-way position, direct actuation normally closed, made of brass material, the sturdy body has a long service life, for electrically driven pneumatic power control. Type


Voltage (optional): DC12V/24V


Receiver Diameter: 1/8" BSP


Use pressure: 0-0.08MPA


Maximum pressure 1.0MPA


Operating temperature range: 10~+60℃


Use voltage range: ±10%


Protection level: IP65 IP65: Terminal type


Maximum frequency of action: 10 times/s


Minimum excitation time: 0.005/s

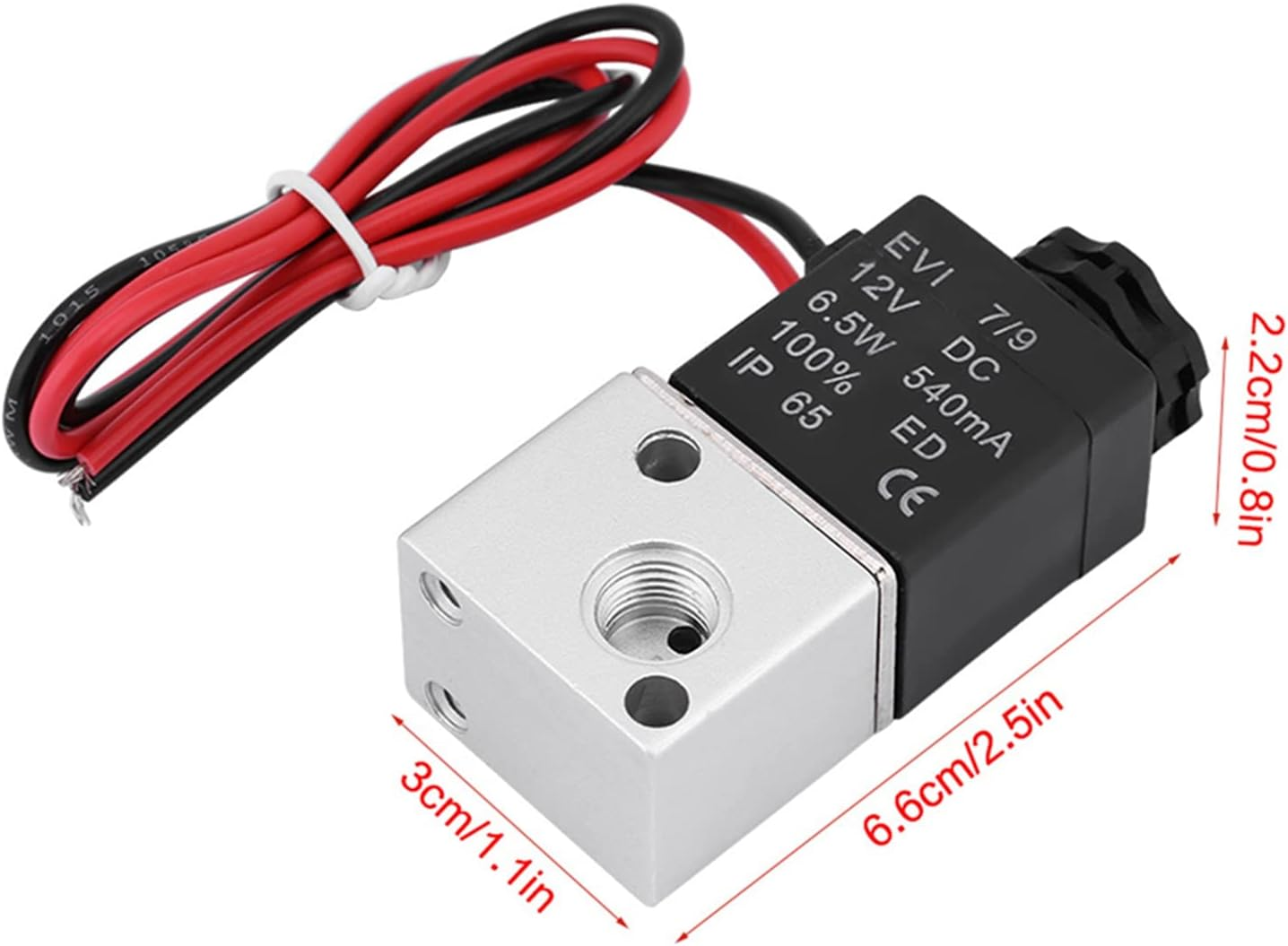

Size: 6.5 x 3 x 2.2cm/2.60 x 1.18 x 0.87 inches


weight: 136g, 135g


Package includes:


1 x Solenoid Air Valve

  • Item Model Number: ViaGasaFamido70twg12e9p-01
  • Part Number: ViaGasaFamido70twg12e9p-01
  • Style: DC12V
  • Colour: #-01
  • Maximum Pressure: 1000000 Pascal
  • Product dimensions: 7.98 x 7.98 x 3 cm; 133 Grams
  • Material: Brass, Stainless Steel
  • Country of origin: China
  • Batteries Required?: No
  • Certification: IP65, DC12V
  • Item Weight: 133 g
  • Manufacturer: ViaGasaFamido
  • Size: DC12V
  • Number Of Pieces: 1
  • Size Name: DC12V
  • Style Name: DC12V
  • Included Components: No
